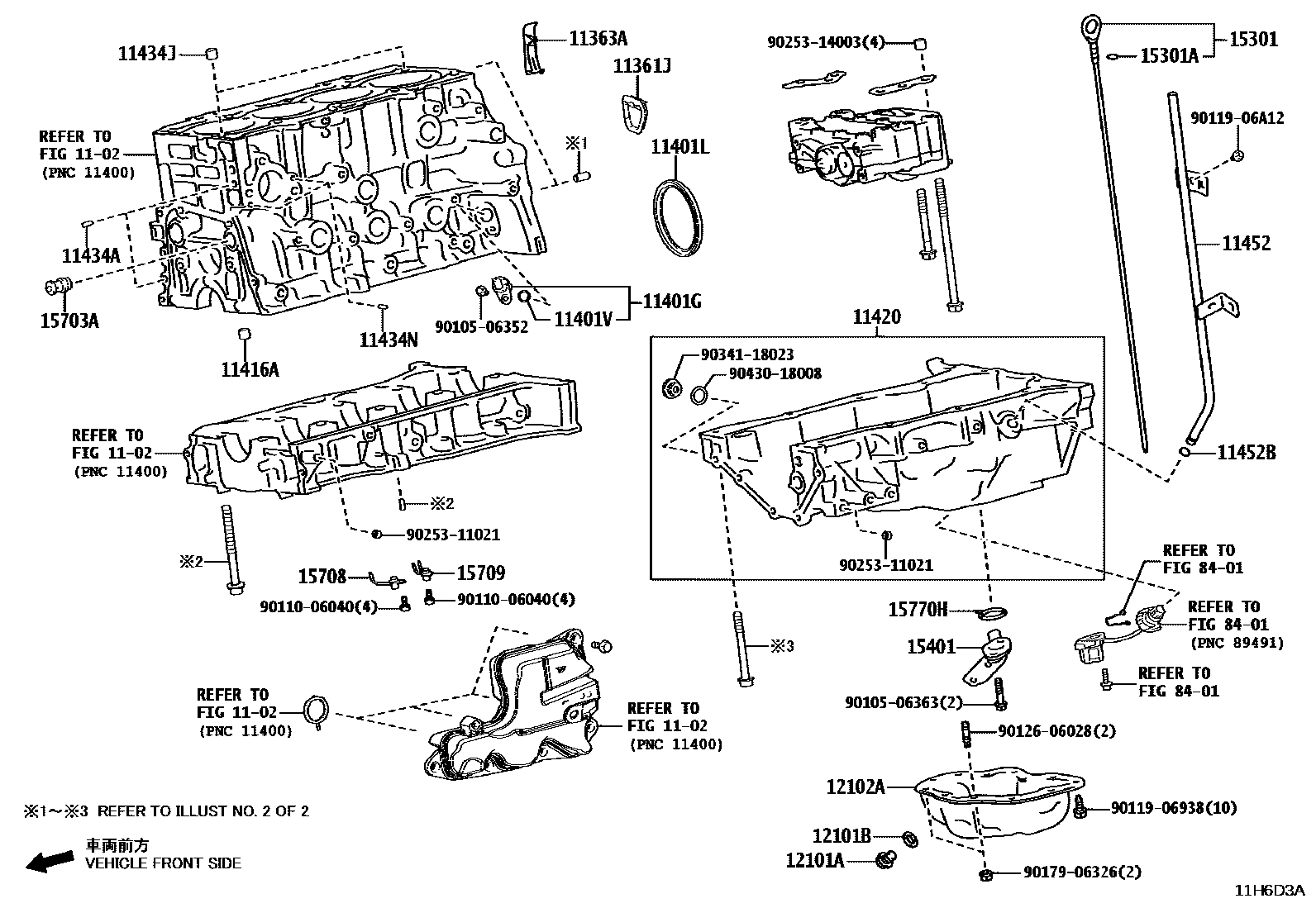

CYLINDER BLOCK
1102SHORT BLOCK ASSEMBLY
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
11401GSENSOR, CRANK POSITION
11401LSEAL, ENGINE REAR OIL
11401VO-RING, CRANK POSITION SENSOR
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
15401PIPE SUB-ASSY, OIL PUMP INLET
15703AVALVE SUB-ASSY, OIL NOZZLE
15708NOZZLE SUB-ASSY, OIL, NO.1
15709NOZZLE SUB-ASSY, OIL, NO.2
15770HGASKET(FOR OIL PIPE)
8401SWITCH & RELAY & COMPUTER
9010506352
main90105-06352
9010506363
main90105-06363
9011006040
main90110-06040
9011906938
main90119-06938
9011906A12
main90119-06A12
9012606028
main90126-06028
9017906326
main90179-06326
9025311021
main90253-11021
9025314003
main90253-14003
9034118023
main90341-18023
9043018008
main90430-18008
36 parts on this diagram · 2 diagrams in section
