REAR WIPER

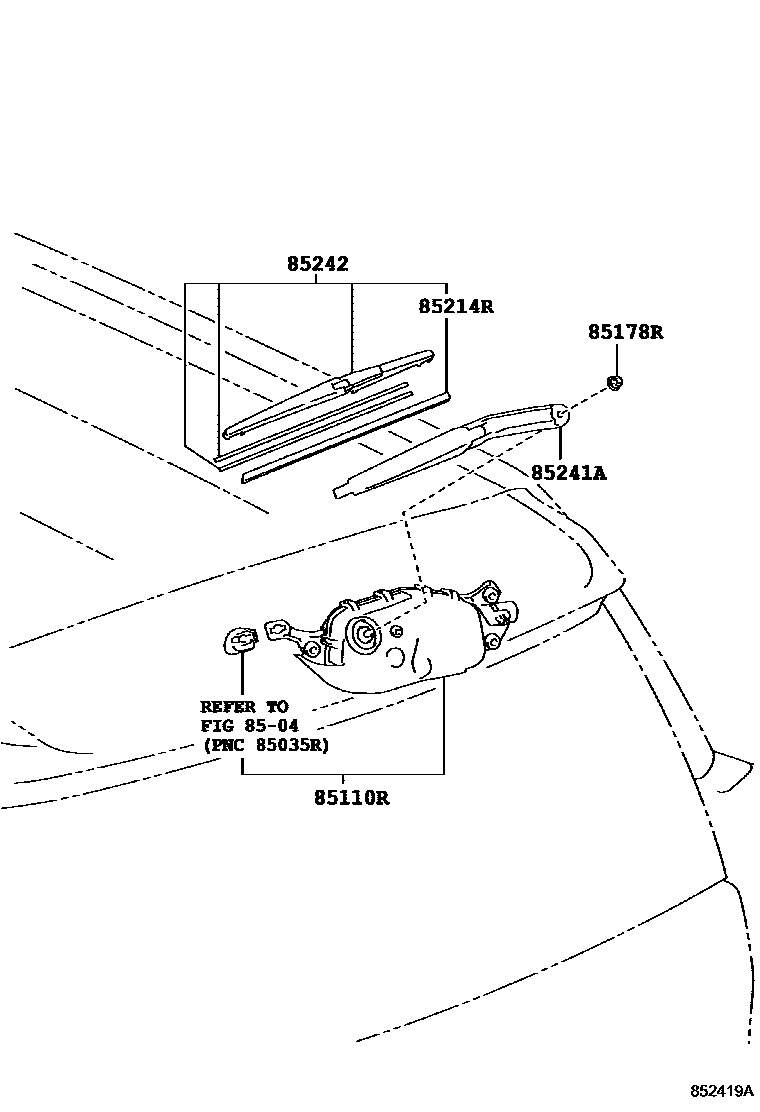

Parts diagram

8504REAR WASHER

→ Go to FIG 85-04

85110RMOTOR ASSY, REAR WIPER

main85130-60270i200911-201206

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06178i200911-201206

85214RRUBBER, REAR WIPER

main85214-42040i200911-201206

85241AARM, REAR WIPER

main85241-60150i200911-201206

main85241-60151i201501-201711

85242BLADE, RR WIPER

main85242-42030i200911-201206

main85242-60100i201501-201711

6 parts on this diagram · 1 diagram in section
