CLEARANCE & BACK SONAR

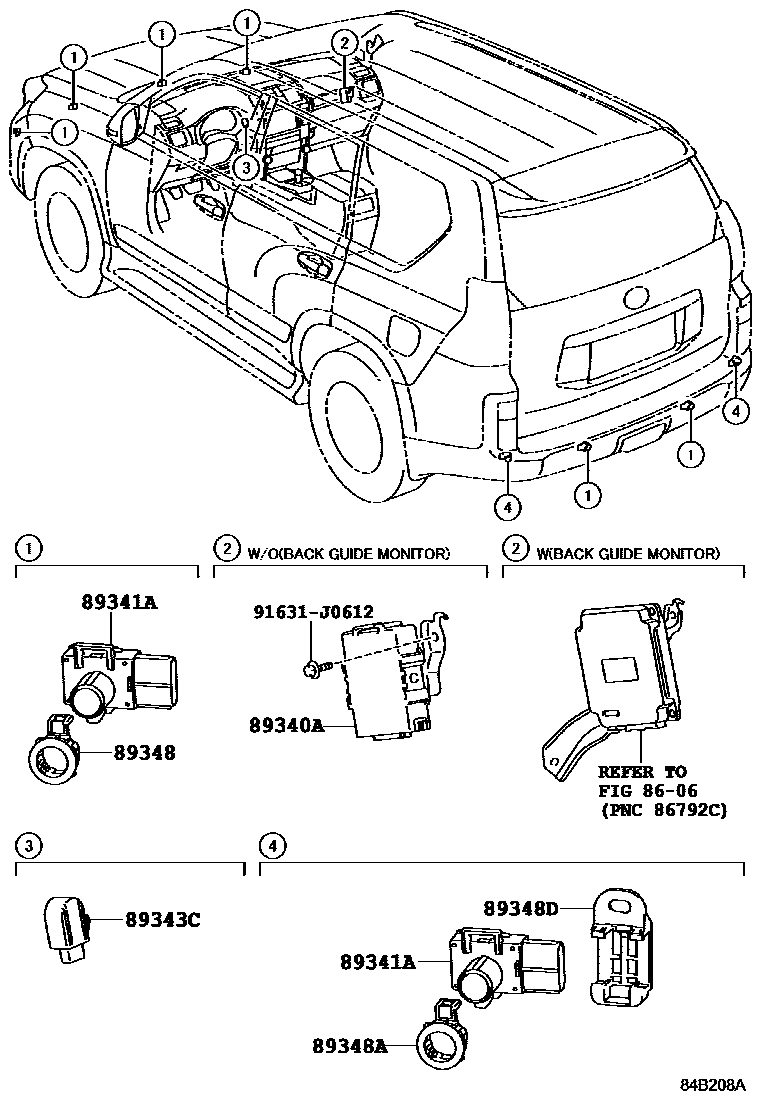

Parts diagram
8606CAMERA & REAR MONITOR DISPLAY
→ Go to FIG 86-06
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-60030i200911-201206
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
main89340-60090i201308-201711
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
main89340-60230i201908-202108
CLEARANCE & BACK SONAR-WITH(FRONT & REAR); CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM)
main89340-60360i202108
CLEARANCE & BACK SONAR-WITH(FRONT & REAR); CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM)
89341ASENSOR, ULTRASONIC, NO.1
main89341-33210-C4×2i201308-201908
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,077 ,1G1 ,1H3 ,1H9 ,1J4 ,202 ,217,3S0 ,4U7 ,4V3 ,8X5
main89341-48010-A0×8i200911-201206
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),WHITE PEARL CS.,077; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,077; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),WHITE PEARL CS.,077; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,077
main89341-48010-B4×8i200911-201206
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SILVER M.M.,1G1; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER M.M.,1G1; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SILVER M.M.,1G1; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER M.M.,1G1
main89341-48010-C2×8i200911-201210
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),BLACK,202; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202
main89341-48010-C5×8i201108-201210
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),STARLIGHT BLACK GF.,217; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),STARLIGHT BLACK GF.,217; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),STARLIGHT BLACK GF.,217; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),STARLIGHT BLACK GF.,217
main89341-48010-D5×8i200911-201210
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),GARNET RED MC.,3S0; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GARNET RED MC.,3S0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),GARNET RED MC.,3S0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GARNET RED MC.,3S0
main89341-48010-E4×8i200911-201206
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SLEEK ECRU ME.,4U7; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SLEEK ECRU ME.,4U7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SLEEK ECRU ME.,4U7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SLEEK ECRU ME.,4U7
main89341-48010-E6×8i201108-201210
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),FIRE AGATE M.M.,4V3; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),FIRE AGATE M.M.,4V3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),FIRE AGATE M.M.,4V3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),FIRE AGATE M.M.,4V3
main89341-48010-G3×8i200911-201108
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR),DEEP PERIDOT MC.,6V6; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),DEEP PERIDOT MC.,6V6; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DEEP PERIDOT MC.,6V6; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR),DEEP PERIDOT MC.,6V6; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),DEEP PERIDOT MC.,6V6; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DEEP PERIDOT MC.,6V6
main89341-48010-P0×8i200911-201210
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SPARKLE SOLID GRAY M.M.,1H3; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SPARKLESOLID GRAY M.M.,1H3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SPARKLE SOLID GRAY M.M.,1H3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SPARKLE SOLID GRAY M.M.,1H3
main89341-60030-A2×8i201211-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),WHITE PEARL CS.,077; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,077; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),WHITE PEARL CS.,077; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,077
main89341-60030-B3×8i201211-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SILVER M.M.,1G1; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER M.M.,1G1; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SILVER M.M.,1G1; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER M.M.,1G1
main89341-60030-B4×8i201211-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SPARKLE SOLID GRAY M.M.,1H3; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SPARKLESOLID GRAY M.M.,1H3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SPARKLE SOLID GRAY M.M.,1H3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SPARKLE SOLID GRAY M.M.,1H3
main89341-60030-C0×8i201211-201308
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),BLACK,202; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202
main89341-60030-C1×8i201211-201308
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),STARLIGHT BLACK GF.,217; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),STARLIGHT BLACK GF.,217; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),STARLIGHT BLACK GF.,217; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),STARLIGHT BLACK GF.,217
main89341-60030-D1×8i201211-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),GARNET RED MC.,3S0; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GARNET RED MC.,3S0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),GARNET RED MC.,3S0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GARNET RED MC.,3S0
main89341-60030-E1×8i201211-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SLEEK ECRU ME.,4U7; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SLEEK ECRU ME.,4U7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SLEEK ECRU ME.,4U7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SLEEK ECRU ME.,4U7
main89341-60030-E2×8i201211-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),FIRE AGATE M.M.,4V3; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),FIRE AGATE M.M.,4V3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),FIRE AGATE M.M.,4V3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),FIRE AGATE M.M.,4V3
89343CBUZZER, CLEARANCE WARNING, NO.1
main89343-72010i200911-201206
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR); AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR); CLEARANCE & BACK SONAR-WITH(FRONT & REAR); CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)
89348RETAINER, ULTRASONIC SENSOR, NO.1
main89348-33100-C7×2i201308-201908
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,077 ,1G1 ,1H3 ,1H9 ,1J4 ,202 ,217,3S0 ,4U7 ,4V3 ,8X5
main89348-71010-A2×6i200911-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),WHITE PEARL CS.,077; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,077; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),WHITE PEARL CS.,077; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,077
main89348-71010-B3×6i200911-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SILVER M.M.,1G1; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER M.M.,1G1; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SILVER M.M.,1G1; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER M.M.,1G1
main89348-71010-B4×6i200911-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SPARKLE SOLID GRAY M.M.,1H3; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SPARKLESOLID GRAY M.M.,1H3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SPARKLE SOLID GRAY M.M.,1H3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SPARKLE SOLID GRAY M.M.,1H3
main89348-71010-C0×6i200911-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),BLACK,202; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202
main89348-71010-C4×6i201108-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),STARLIGHT BLACK GF.,217; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),STARLIGHT BLACK GF.,217; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),STARLIGHT BLACK GF.,217; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),STARLIGHT BLACK GF.,217
main89348-71010-D1×6i200911-201108
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR),GARNET RED MC.,3S0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR),GARNET RED MC.,3S0
main89348-71010-E1×6i200911-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SLEEK ECRU ME.,4U7; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SLEEK ECRU ME.,4U7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SLEEK ECRU ME.,4U7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SLEEK ECRU ME.,4U7
main89348-71010-E5×6i201108-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),FIRE AGATE M.M.,4V3; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),FIRE AGATE M.M.,4V3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),FIRE AGATE M.M.,4V3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),FIRE AGATE M.M.,4V3
main89348-71010-G1×6i200911-201108
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR),DEEP PERIDOT MC.,6V6; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),DEEP PERIDOT MC.,6V6; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DEEP PERIDOT MC.,6V6; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR),DEEP PERIDOT MC.,6V6; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),DEEP PERIDOT MC.,6V6; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DEEP PERIDOT MC.,6V6
89348ARETAINER, ULTRASONIC SENSOR, NO.2
main89348-33060-A3×2i200911-201108
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR),WHITE PEARL CS.,077; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR),WHITE PEARL CS.,077
main89348-33060-C0×2i200911-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),BLACK,202; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),BLACK,202; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202
main89348-33060-C4×2i201108-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),STARLIGHT BLACK GF.,217; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),STARLIGHT BLACK GF.,217; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),STARLIGHT BLACK GF.,217; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),STARLIGHT BLACK GF.,217
main89348-33060-D9×2i200911-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),GARNET RED MC.,3S0; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GARNET RED MC.,3S0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),GARNET RED MC.,3S0; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GARNET RED MC.,3S0
main89348-33060-G8×2i200911-201108
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR),DEEP PERIDOT MC.,6V6; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),DEEP PERIDOT MC.,6V6; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DEEP PERIDOT MC.,6V6; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR),DEEP PERIDOT MC.,6V6; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),DEEP PERIDOT MC.,6V6; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DEEP PERIDOT MC.,6V6
main89348-33060-L0×2i200911-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SLEEK ECRU ME.,4U7; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SLEEK ECRU ME.,4U7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SLEEK ECRU ME.,4U7; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SLEEK ECRU ME.,4U7
main89348-33060-L1×2i201108-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),FIRE AGATE M.M.,4V3; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),FIRE AGATE M.M.,4V3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),FIRE AGATE M.M.,4V3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),FIRE AGATE M.M.,4V3
main89348-33060-P2×2i200911-201108
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR),SILVER M.M.,1G1; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR),SILVER M.M.,1G1
main89348-33060-P8×2i200911-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SPARKLE SOLID GRAY M.M.,1H3; AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SPARKLESOLID GRAY M.M.,1H3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),SPARKLE SOLID GRAY M.M.,1H3; CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SPARKLE SOLID GRAY M.M.,1H3
89348DCLIP, ULTRASONIC SENSOR
main89348-33090×2i200911-201309
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR); AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR); CLEARANCE & BACK SONAR-WITH(FRONT & REAR); CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)
main89348-33190×2i201908
CLEARANCE & BACK SONAR-WITH(FRONT & REAR); CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM)
main89348-50040×2i201308-201908
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
91631J0612
main91631-J0612

8 parts on this diagram · 3 diagrams in section
