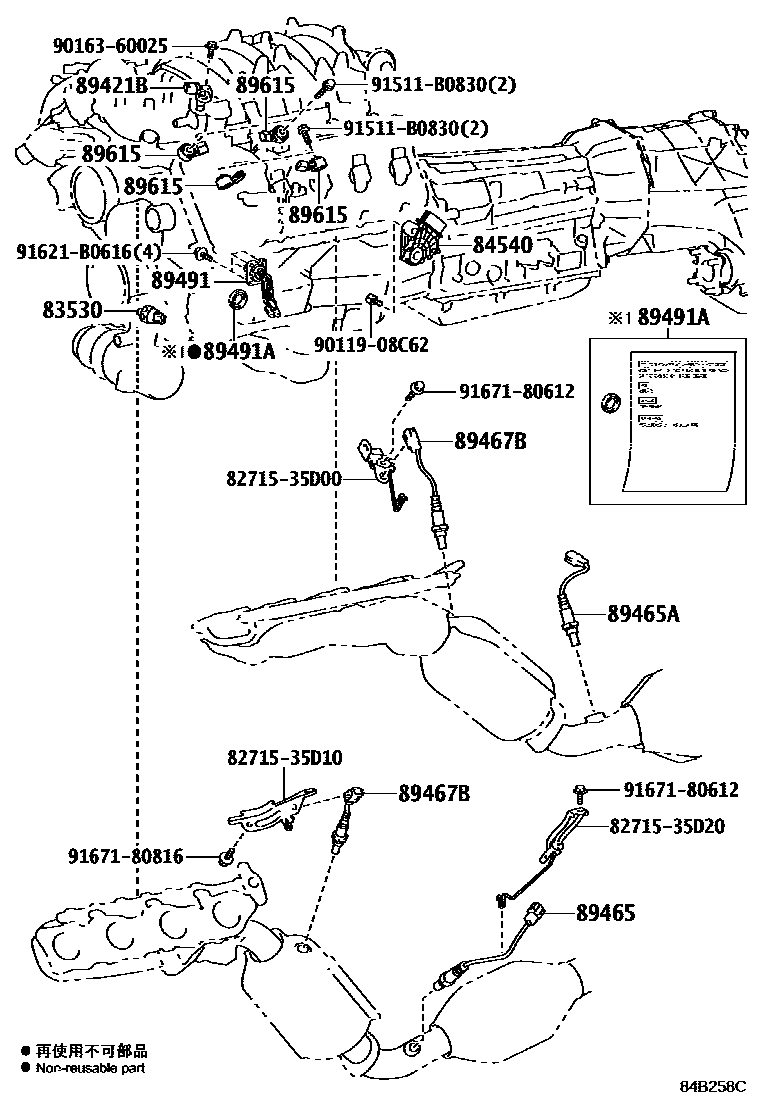

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0005 1ENGINE ROOM 0007 1ENGINE ROOM 0008 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0012 1ENGINE ROOM RELAY BLOCK 0013 1COWL 0015 1COWL 0017 1COWL 0018 1INSTRUMENT PANEL 0020 1INSTRUMENT PANEL 0022 1INSTRUMENT PANEL 0023 1INSTRUMENT PANEL 1/2 0024 1INSTRUMENT PANEL 2/2 0025 1STEERING 0026 1STEERING 0027 1SEAT 0028 1DOOR & ROOF 0029 1FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iURJ150..GCC201104-201308

DENSO

main83530-60020iURJ150..GCC201104-201308

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-35060iGRJ158201611-201711

main84540-35061iURJ150202008

main84540-60050iGRJ158,URJ150201308-201610

89421BSENSOR, VACUUM

main89421-47010iURJ150201308-201908

main89421-52010iURJ150200911-201009

89465SENSOR, OXYGEN

main89465-35720supersedes 89465-60460iURJ150..CHI200911-201206

main89465-60410iGRJ158201206-201309

89465ASENSOR, OXYGEN NO.2

main89465-36040supersedes 89465-34160iURJ150..CHI200911-201206

main89465-60320iGRJ158201206-201309

89467BSENSOR, AIR FUEL RATIO

main89467-35110×2supersedes 89467-60140iURJ150201308-201508

main89467-60060×2iGRJ158201206-201309

89491SENSOR, ENGINE OIL LEVEL

main89491-60170iURJ150201308-201908

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iURJ150201908

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGRJ158201309-201711

8271535D00BRACKET,WIRING HARNESS CLAMP

main82715-35D00

8271535D10BRACKET,WIRING HARNESS CLAMP

main82715-35D10

8271535D20BRACKET,WIRING HARNESS CLAMP

main82715-35D20

9011908C62

main90119-08C62

9016360025

main90163-60025

91511B0830

main91511-B0830

91621B0616

main91621-B0616

9167180612

main91671-80612

9167180816

main91671-80816

18 parts on this diagram · 21 diagrams in section
