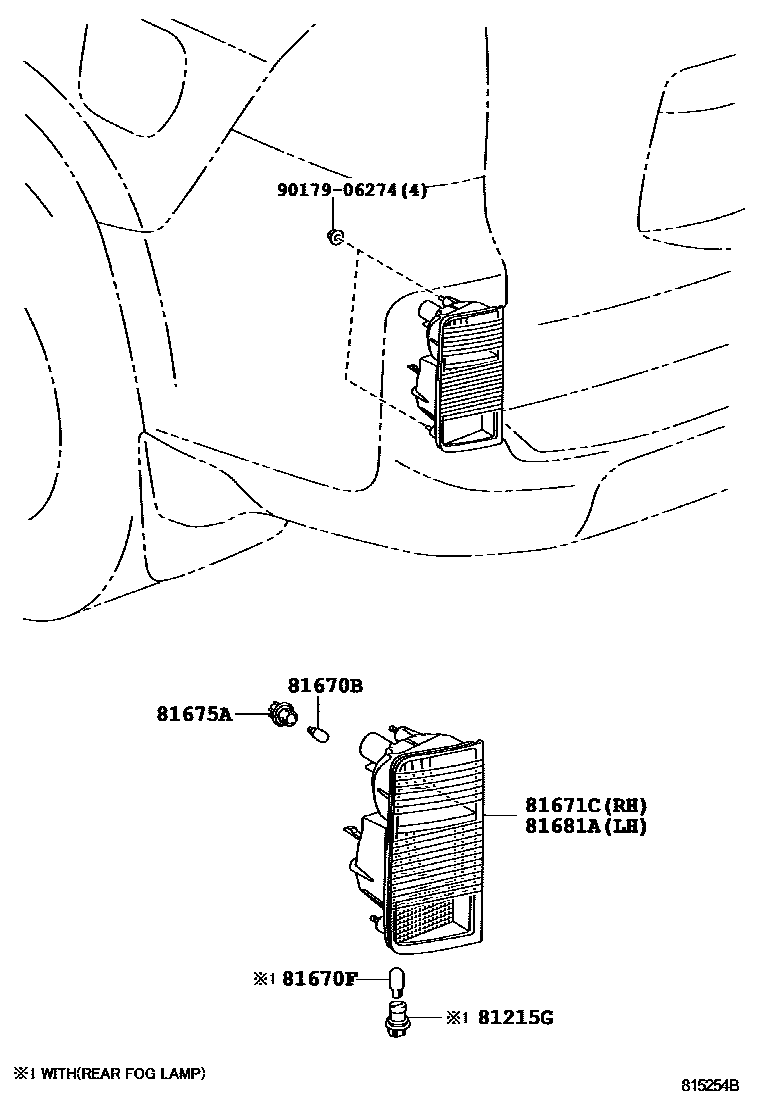

BACK UP LAMP

0001 1 0004 1

81215GSOCKET,REAR FOG LAMP

main81585-60240×2iGRJ158201309-201711

81670BBULB(FOR BACK-UP LAMP)

main90981-11059×2iURJ150201908

12V 16W

81670FBULB(FOR REAR FOG LAMP)

main90981-13043×2iURJ150..CHI201012-201206

12V 21W

81671CLENS & BODY, BACK-UP LAMP, RH

main81671-60120iURJ150..GCC200911-201308

main81671-60130iGRJ158201012-201309

main81671-60160iURJ150201308-201608

main81671-60170iURJ150201908

81675APLUG, SOCKET(FOR BACK-UP LAMP)

main81675-60120×2iGRJ158201308-201711

81681ALENS & BODY, BACK-UP LAMP, LH

main81681-60080iURJ150..GCC200911-201308

main81681-60090iURJ150..CHI201012-201206

main81681-60120iURJ150201308-201608

main81681-60130iGRJ158201309-201711

9017906274

main90179-06274

7 parts on this diagram · 2 diagrams in section
