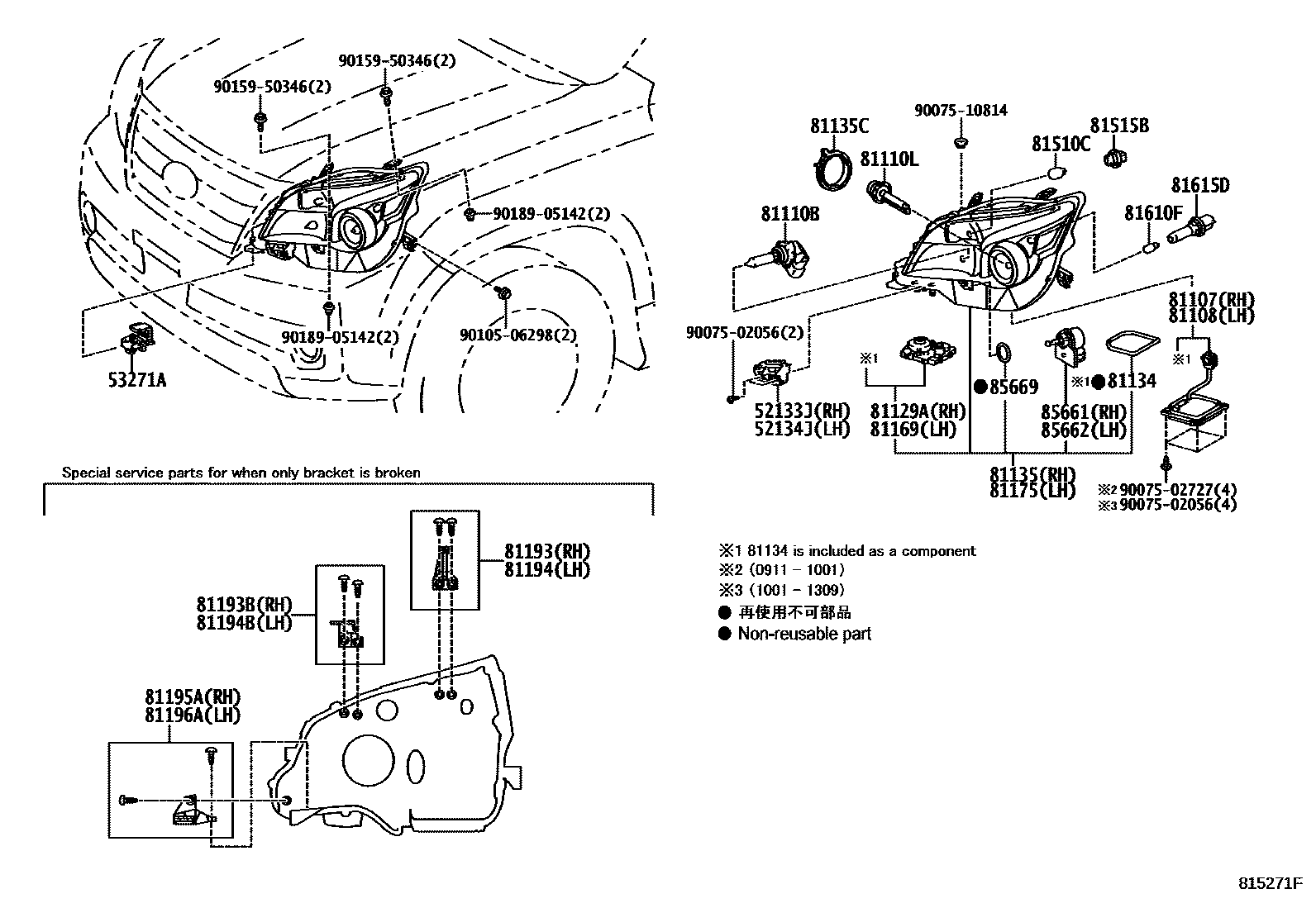

HEADLAMP
52133JREINFORCEMENT, FRONT BUMPER BAR, RH
52134JREINFORCEMENT, FRONT BUMPER BAR, LH
53271ABRACKET, HEADLAMP MOUNTING
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
12V 65W,HALOGEN
81110LBULB, DISCHARGE HEADLAMP
42V 35W
81129AREFLECTOR, HEADLAMP, RH
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81135CCOVER, HEADLAMP BACK, NO.1
81169REFLECTOR, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9007502056
main90075-02056
9007502727
main90075-02727
9007510814
main90075-10814
9010506298
main90105-06298
9015950346
main90159-50346
9018905142
main90189-05142
32 parts on this diagram · 3 diagrams in section
