E
EPC Data

SEAT & SEAT TRACK

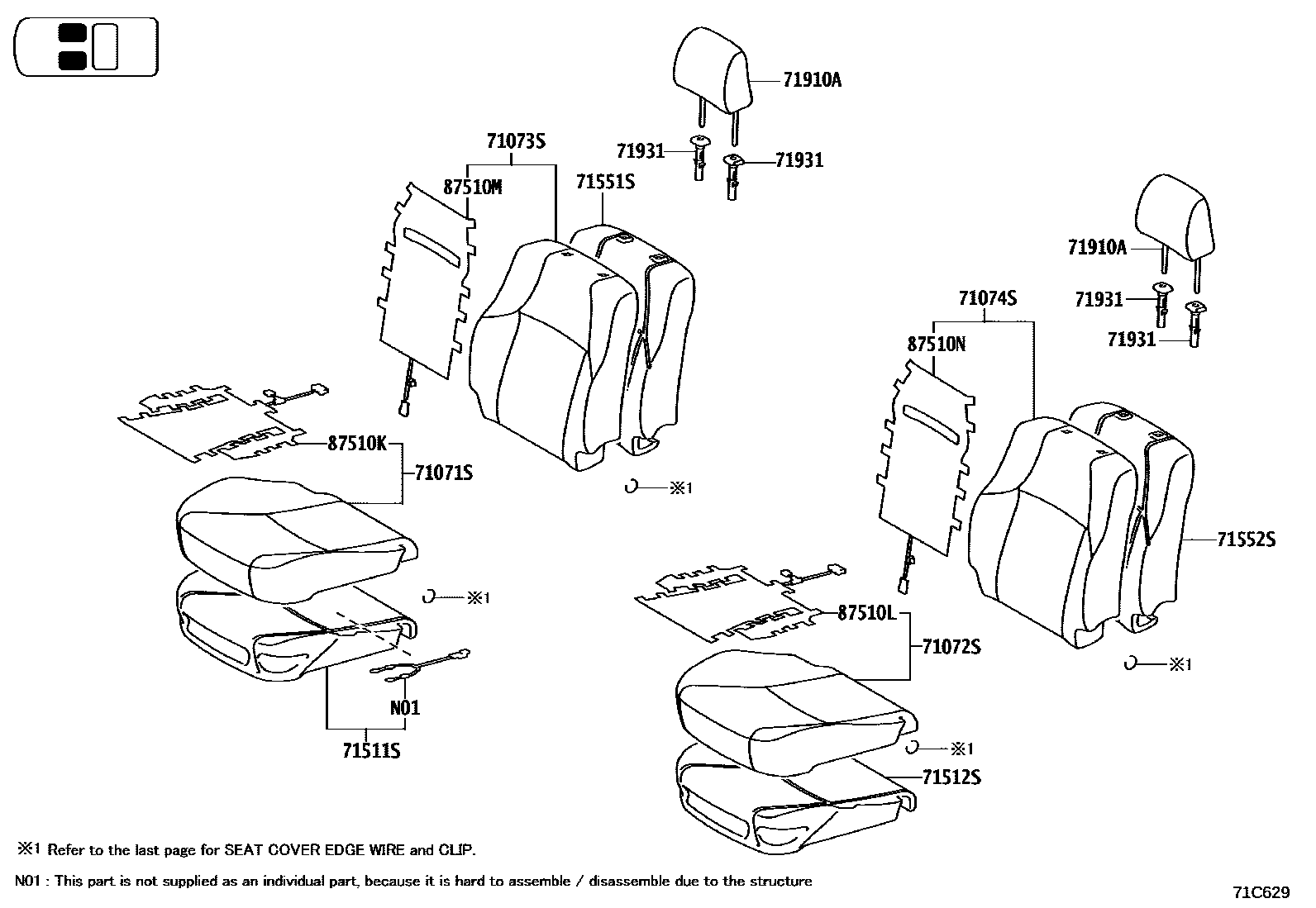

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-60E20-A1i201012-201206
ECRU,TRIM0#
main71071-60E20-C1i201012-201206
BLACK,TRIM2#
main71071-60E20-E1i201012-201206
SEPIA,TRIM4#
main71071-60E21-A1i201210-201309
ECRU,TRIM0#
sub71071-60E22
main71071-60E21-E1i201210-201309
SEPIA,TRIM4#
sub71071-60E22
main71071-60J50-A1i201309-201411
ECRU,TRIM0#
main71071-60J50-C1i201309-201411
BLACK,TRIM20
main71071-60J50-E2i201309-201411
SEPIA,TRIM4#
main71071-60J50-E3i201309-201411
SADDLE TAN,TRIM21
main71071-60J51-A1i201412-201611
ECRU,TRIM0#
main71071-60J51-C1i201412-201611
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71071-60J51-E2i201412-201611
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71071-60J51-E3i201412-201611
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71071-60J52-A1i201612-201711
ECRU,TRIM0#
main71071-60J52-C1i201612-201711
BLACK,TRIM20
main71071-60J52-E2i201612-201711
SEPIA,TRIM4#
main71071-60J52-E3i201612-201711
SADDLE TAN,TRIM21
main71071-60J00-A1i201308-201508
SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71071-60J00-C1supersedes 71071-60G73-C3i201308-201611
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71071-60J01-A1supersedes 71071-60G73-A3i201612-201807
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71071-60J01-C1supersedes 71071-60G73-C3i201612-201807
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71071-60J02-A2supersedes 71071-60G73-A2i201808-201812
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71071-60J02-A3supersedes 71071-60G73-A3i201812-201908
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71071-60J02-C2supersedes 71071-60G73-C2i201808-201812
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71071-60J02-C3supersedes 71071-60G73-C3i201812-201908
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71071-60J10-C1supersedes 71071-60G73-C3i201308-201412
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM2#
main71071-60J11-C2supersedes 71071-60E21-C1i201412-201508
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM2#
main71071-60J11-E1i201508-201711
PRE-COLLISION SYSTEM-WITHOUT&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SEPIA,TRIM4#
main71071-60J12-C3supersedes 71071-60G73-C2i201808-201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM2#
main71071-60J12-E2i201808-201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71071-60J12-E4supersedes 71071-60D91-E2i201812-201908
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71071-60J20-C1i201308-201508
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71071-60J20-C2i201508-201807
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71071-60J20-E1i201508-201807
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71071-60J21-A1supersedes 71071-60J12-A1i201908-202108
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71071-60J21-A2supersedes 71071-60J12-A2i202108
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71071-60J21-C3supersedes 71071-60G73-C2i201808-201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71071-60J21-C4supersedes 71071-60J12-C4i201908-202108
SEAT HEATER-WITHOUT,BLACK,TRIM20
main71071-60J21-C5supersedes 71071-60J12-C5i202108
SEAT HEATER-WITHOUT,BLACK,TRIM20
main71071-60J21-D3supersedes 71071-60J12-D3i201908-202108
SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71071-60J21-D4supersedes 71071-60J12-D4i202108
SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71071-60J21-E2i201808-201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71071-60J21-E4supersedes 71071-60D91-E2i201812-201908
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71071-60J21-E5supersedes 71071-60J12-E5i201908-202108
SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71071-60J21-E6supersedes 71071-60J12-E6i202108
SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71071-60Q10-A0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),E
main71071-60Q10-A1supersedes 71071-60G73-A2i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71071-60Q10-A2supersedes 71071-60G73-A3i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71071-60Q10-A3supersedes 71071-60J12-A2i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71071-60Q10-C0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),B
main71071-60Q10-C1i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71071-60Q10-C2i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71071-60Q10-C3supersedes 71071-60J12-C5i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71071-60Q10-D2supersedes 71071-60J12-D3i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),DK.ROSE,TRIM21
main71071-60Q10-D3supersedes 71071-60J12-D4i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),DK.ROSE,TRIM21
main71071-60Q10-E0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71071-60Q10-E1i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71071-60Q10-E2i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71071-60Q10-E3i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71071-60Q10-E5supersedes 71071-60D91-E2i201812-201908
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71071-60Q10-E6i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71071-60Q10-E7supersedes 71071-60J12-E5i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71071-60Q10-E8supersedes 71071-60J12-E6i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71071-60Q90-A1supersedes 71071-60J12-A1i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71071-60Q90-A2supersedes 71071-60J12-A2i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71071-60Q90-C1supersedes 71071-60J12-C4i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM20
main71071-60Q90-C2supersedes 71071-60J12-C5i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM20
main71071-60Q90-D2supersedes 71071-60J12-D3i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71071-60Q90-D3supersedes 71071-60J12-D4i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71071-60Q90-E1supersedes 71071-60J12-E5i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71071-60Q90-E2supersedes 71071-60J12-E6i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-60D50-A1i201012-201209
ECRU,TRIM0#
main71072-60D50-C1i201012-201206
BLACK,TRIM2#
main71072-60D50-E1i201012-201206
SEPIA,TRIM4#
main71072-60D51-A1i201210-201309
ECRU,TRIM0#
sub71072-60D52
main71072-60D51-E1i201210-201309
SEPIA,TRIM4#
sub71072-60D52
main71072-60G40-A1i201309-201411
ECRU,TRIM0#
main71072-60G40-C1i201309-201411
BLACK,TRIM20
main71072-60G40-E2i201309-201411
SEPIA,TRIM4#
main71072-60G40-E3i201309-201411
SADDLE TAN,TRIM21
main71072-60G41-A1i201412-201611
ECRU,TRIM0#
main71072-60G41-C1i201412-201611
BLACK,TRIM20
main71072-60G41-E2i201412-201611
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71072-60G41-E3i201412-201611
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71072-60G42-A1i201612-201711
ECRU,TRIM0#
main71072-60G42-C1i201612-201711
BLACK,TRIM20
main71072-60G42-E2i201612-201711
SEPIA,TRIM4#
main71072-60G42-E3i201612-201711
SADDLE TAN,TRIM21
main71072-60G20-C1supersedes 71072-60G13-C5i201308-201411
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM2#
main71072-60G21-C2supersedes 71072-60G13-C5i201412-201807
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM2#
main71072-60G21-E1i201508-201807
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71072-60G22-C3supersedes 71072-60G13-C4i201808-201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM2#
main71072-60G22-E2i201808-201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71072-60G22-E4supersedes 71072-60D31-E3i201812-201908
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71072-60G30-A1supersedes 71072-60G13-A3i201308-201611
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71072-60G30-C1i201308-201508
SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71072-60G31-A1supersedes 71072-60G13-A3i201612-201807
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71072-60G31-C1supersedes 71072-60G13-C5i201612-201807
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-60G32-A2supersedes 71072-60G13-A2i201808-201812
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71072-60G32-A3supersedes 71072-60G13-A3i201812-201908
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71072-60G32-C2supersedes 71072-60G13-C4i201808-201812
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-60G32-C3supersedes 71072-60G13-C5i201812-201908
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-60G50-C1i201308-201508
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-60G50-C2i201508-201807
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-60G50-E1i201508-201807
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71072-60G51-A1supersedes 71072-60G22-A1i201908-202108
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71072-60G51-A2supersedes 71072-60G22-A2i202108
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71072-60G51-C3supersedes 71072-60G13-C4i201808-201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-60G51-C4supersedes 71072-60G13-C5i201812-201908
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-60G51-C5supersedes 71072-60G22-C7i202108
SEAT HEATER-WITHOUT,BLACK,TRIM20
main71072-60G51-D3supersedes 71072-60G22-D3i201908-202108
SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71072-60G51-D4supersedes 71072-60G22-D4i202108
SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71072-60G51-E2i201808-201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71072-60G51-E4supersedes 71072-60D31-E3i201812-201908
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71072-60G51-E5supersedes 71072-60G22-E5i201908-202108
SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71072-60G51-E6supersedes 71072-60G22-E6i202108
SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71072-60N80-A0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),E
main71072-60N80-A1supersedes 71072-60G13-A2i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71072-60N80-A2supersedes 71072-60G13-A3i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71072-60N80-A3supersedes 71072-60G22-A2i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71072-60N80-C0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),B
main71072-60N80-C1i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71072-60N80-C2i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71072-60N80-C3supersedes 71072-60G22-C7i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71072-60N80-D2supersedes 71072-60G22-D3i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),DK.ROSE,TRIM21
main71072-60N80-D3supersedes 71072-60G22-D4i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),DK.ROSE,TRIM21
main71072-60N80-E0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71072-60N80-E1i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71072-60N80-E2i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71072-60N80-E3i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71072-60N80-E5supersedes 71072-60D31-E3i201812-201908
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71072-60N80-E6i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71072-60N80-E7supersedes 71072-60G22-E5i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71072-60N80-E8supersedes 71072-60G22-E6i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71072-60P70-A1supersedes 71072-60G22-A1i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71072-60P70-A2supersedes 71072-60G22-A2i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71072-60P70-C1supersedes 71072-60G22-C4i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM20
main71072-60P70-C2supersedes 71072-60G22-C7i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM20
main71072-60P70-D2supersedes 71072-60G22-D3i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71072-60P70-D3supersedes 71072-60G22-D4i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71072-60P70-E1supersedes 71072-60G22-E5i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71072-60P70-E2supersedes 71072-60G22-E6i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-60C30-A1i201012-201206
ECRU,TRIM0#
sub71073-60C31
main71073-60C30-A2i201206-201309
ECRU,TRIM0#
sub71073-60C31
main71073-60C30-C1i201012-201206
BLACK,TRIM2#
sub71073-60C31
main71073-60C30-C2i201206-201309
BLACK,TRIM2#
sub71073-60C31
main71073-60C30-E1i201012-201206
SEPIA,TRIM4#
sub71073-60C31
main71073-60C30-E2i201206-201309
SEPIA,TRIM4#
sub71073-60C31
main71073-60B00-C1i201308-201508
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71073-60B00-C2i201508-201807
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71073-60B00-E1i201508-201807
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71073-60B01-A1supersedes 71073-60F01-A1i201908-202108
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71073-60B01-A2supersedes 71073-60F01-A2i202108
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71073-60B01-C4supersedes 71073-60B71-C5i201808-201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71073-60B01-C5supersedes 71073-60F01-C5i201908-202108
SEAT HEATER-WITHOUT,BLACK,TRIM20
main71073-60B01-C6supersedes 71073-60F01-C8i202108
SEAT HEATER-WITHOUT,BLACK,TRIM20
main71073-60B01-D3supersedes 71073-60F01-D3i201908-202108
SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71073-60B01-D4supersedes 71073-60F01-D4i202108
SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71073-60B01-E4i201808-201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71073-60B01-E5supersedes 71073-60C10-E5i201812-201908
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71073-60B01-E6supersedes 71073-60F01-E6i201908-202108
SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71073-60B01-E7supersedes 71073-60F01-E7i202108
SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71073-60C00-A3supersedes 71073-60C10-A6i200911-201201
REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
sub71073-60C01
main71073-60C00-A4supersedes 71073-60C10-A6i201201-201308
REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
sub71073-60C01
main71073-60C00-C2supersedes 71073-60C10-C5i200911-201201
REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
sub71073-60C01
main71073-60C00-C3supersedes 71073-60C10-C5i201201-201308
REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
sub71073-60C01
main71073-60C00-E2supersedes 71073-60C10-E5i200911-201201
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
sub71073-60C01
main71073-60C00-E3supersedes 71073-60C10-E5i201201-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
sub71073-60C01
main71073-60C20-A1supersedes 71073-60C10-A6i200911-201201
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,ECRU,TRIM0#
sub71073-60C21
main71073-60C20-A2supersedes 71073-60C10-A6i201201-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,ECRU,TRIM0#
sub71073-60C21
main71073-60C20-C1supersedes 71073-60C10-C5i200911-201201
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,BLACK,TRIM2#
sub71073-60C21
main71073-60C20-C2supersedes 71073-60C10-C5i201201-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,BLACK,TRIM2#
sub71073-60C21
main71073-60C20-E1supersedes 71073-60C10-E5i200911-201201
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,SEPIA,TRIM4#
sub71073-60C21
main71073-60C20-E2supersedes 71073-60C10-E5i201201-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,SEPIA,TRIM4#
sub71073-60C21
main71073-60E60-A1i201308-201508
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71073-60E60-C1i201308-201508
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71073-60E61-A3supersedes 71073-60B71-A3i201808-201812
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71073-60E61-A4supersedes 71073-60C10-A6i201812-201908
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71073-60E61-C3supersedes 71073-60B71-C5i201808-201812
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71073-60E61-C4supersedes 71073-60C10-C5i201812-201908
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71073-60E70-A1supersedes 71073-60E80-A1i201309-201711
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71073-60E70-C1supersedes 71073-60E80-C1i201308-201805
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),B
main71073-60E70-E2supersedes 71073-60C10-E5i201308-201805
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71073-60E70-E3supersedes 71073-60E80-E3i201308-201805
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71073-60E90-A1supersedes 71073-60C10-A6i201308-201807
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71073-60E90-C1supersedes 71073-60C10-C5i201308-201807
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71073-60E91-A3supersedes 71073-60B71-A3i201808-201812
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71073-60E91-A4supersedes 71073-60C10-A6i201812-201908
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71073-60E91-C3supersedes 71073-60B71-C5i201808-201812
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71073-60E91-C4supersedes 71073-60C10-C5i201812-201908
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71073-60F00-C1i201308-201508
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM2#
main71073-60F00-C2i201508-201807
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM2#
main71073-60F00-E1i201508-201711
PRE-COLLISION SYSTEM-WITHOUT&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SEPIA,TRIM4#
main71073-60F01-C4supersedes 71073-60B71-C5i201808-201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM2#
main71073-60F01-E4i201808-201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71073-60F01-E5supersedes 71073-60C10-E5i201812-201908
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71073-60F10-A1i201308-201508
SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71073-60F10-C1i201308-201508
SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71073-60F90-A0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),E
main71073-60F90-A2supersedes 71073-60B71-A3i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71073-60F90-A3supersedes 71073-60C10-A6i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71073-60F90-C0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),B
main71073-60F90-C2i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM20
main71073-60F90-C3supersedes 71073-60F01-C5i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM20
main71073-60F90-D2supersedes 71073-60F01-D3i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),DK.ROSE,TRIM21
main71073-60F90-E0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71073-60F90-E1i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71073-60F90-E5i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71073-60F90-E6i201808-201812
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71073-60F90-E7supersedes 71073-60C10-E5i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71073-60F90-E8i201812-201908
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71073-60F90-E9supersedes 71073-60F01-E6i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71073-60G00-A2supersedes 71073-60B71-A3i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71073-60G00-A3supersedes 71073-60F01-A1i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71073-60G00-A4supersedes 71073-60F01-A2i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71073-60G00-C2i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71073-60G00-C3i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71073-60G00-C4supersedes 71073-60F01-C8i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71073-60G00-D2supersedes 71073-60F01-D3i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),DK.ROSE,TRIM21
main71073-60G00-D3supersedes 71073-60F01-D4i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),DK.ROSE,TRIM21
main71073-60G00-E5i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71073-60G00-E6i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71073-60G00-E7supersedes 71073-60C10-E5i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71073-60G00-E8i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71073-60G00-E9supersedes 71073-60F01-E6i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71073-60G00-L0supersedes 71073-60F01-E7i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71073-60N00-A1supersedes 71073-60F01-A1i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71073-60N00-A2supersedes 71073-60F01-A2i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71073-60N00-C1supersedes 71073-60F01-C5i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM20
main71073-60N00-C2supersedes 71073-60F01-C8i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM20
main71073-60N00-D2supersedes 71073-60F01-D3i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71073-60N00-D3supersedes 71073-60F01-D4i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71073-60N00-E1supersedes 71073-60F01-E6i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71073-60N00-E2supersedes 71073-60F01-E7i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-60C40-A1i201012-201206
ECRU,TRIM0#
sub71074-60C41
main71074-60C40-A2i201206-201309
ECRU,TRIM0#
sub71074-60C41
main71074-60C40-C1i201012-201206
BLACK,TRIM2#
sub71074-60C41
main71074-60C40-C2i201206-201309
BLACK,TRIM2#
sub71074-60C41
main71074-60C40-E1i201012-201206
SEPIA,TRIM4#
sub71074-60C41
main71074-60C40-E2i201206-201309
SEPIA,TRIM4#
sub71074-60C41
main71074-60A50-C1i201308-201508
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71074-60A50-C2i201508-201807
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71074-60A50-E1i201508-201807
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71074-60A51-A1supersedes 71074-60F11-A1i201908-202108
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71074-60A51-A2supersedes 71074-60F11-A2i202108
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71074-60A51-C4supersedes 71074-60A61-C5i201808-201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71074-60A51-C5supersedes 71074-60F11-C5i201908-202108
SEAT HEATER-WITHOUT,BLACK,TRIM20
main71074-60A51-C6supersedes 71074-60F11-C8i202108
SEAT HEATER-WITHOUT,BLACK,TRIM20
main71074-60A51-D3supersedes 71074-60F11-D3i201908-202108
SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71074-60A51-D4supersedes 71074-60F11-D4i202108
SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71074-60A51-E4i201808-201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71074-60A51-E5supersedes 71074-60C20-E5i201812-201908
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71074-60A51-E6supersedes 71074-60F11-E6i201908-202108
SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71074-60A51-E7supersedes 71074-60F11-E7i202108
SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71074-60C10-A3supersedes 71074-60C20-A6i200911-201201
REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
sub71074-60C11
main71074-60C10-A4supersedes 71074-60C20-A6i201201-201308
REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
sub71074-60C11
main71074-60C10-C2supersedes 71074-60C20-C5i200911-201201
REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
sub71074-60C11
main71074-60C10-C3supersedes 71074-60C20-C5i201201-201308
REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
sub71074-60C11
main71074-60C10-E2supersedes 71074-60C20-E5i200911-201201
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
sub71074-60C11
main71074-60C10-E3supersedes 71074-60C20-E5i201201-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
sub71074-60C11
main71074-60C30-A1supersedes 71074-60C20-A6i200911-201201
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,ECRU,TRIM0#
sub71074-60C31
main71074-60C30-A2supersedes 71074-60C20-A6i201201-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,ECRU,TRIM0#
sub71074-60C31
main71074-60C30-C1supersedes 71074-60C20-C5i200911-201201
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,BLACK,TRIM2#
sub71074-60C31
main71074-60C30-C2supersedes 71074-60C20-C5i201201-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,BLACK,TRIM2#
sub71074-60C31
main71074-60C30-E1supersedes 71074-60C20-E5i200911-201201
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,SEPIA,TRIM4#
sub71074-60C31
main71074-60C30-E2supersedes 71074-60C20-E5i201201-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,SEPIA,TRIM4#
sub71074-60C31
main71074-60E70-A1supersedes 71074-60C20-A6i201308-201807
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71074-60E70-C1i201308-201508
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71074-60E71-A3supersedes 71074-60A61-A3i201808-201812
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71074-60E71-A4supersedes 71074-60C20-A6i201812-201908
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71074-60E71-C3supersedes 71074-60A61-C5i201808-201812
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71074-60E71-C4supersedes 71074-60C20-C5i201812-201908
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71074-60E80-A1supersedes 71074-60C20-A6i201308-201807
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71074-60E80-C1supersedes 71074-60E90-C1i201309-201711
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM20
main71074-60E80-E2supersedes 71074-60E90-E2i201309-201711
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71074-60E80-E3supersedes 71074-60E90-E3i201308-201805
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71074-60F00-A1supersedes 71074-60C20-A6i201308-201807
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71074-60F00-C1supersedes 71074-60C20-C5i201308-201807
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71074-60F01-A3supersedes 71074-60A61-A3i201808-201812
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71074-60F01-A4supersedes 71074-60C20-A6i201812-201908
SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71074-60F01-C3supersedes 71074-60A61-C5i201808-201812
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71074-60F01-C4supersedes 71074-60C20-C5i201812-201908
SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71074-60F10-C1i201308-201508
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM2#
main71074-60F10-C2i201508-201711
PRE-COLLISION SYSTEM-WITHOUT&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71074-60F10-E1i201508-201807
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71074-60F11-C4supersedes 71074-60A61-C5i201808-201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM2#
main71074-60F11-E4i201808-201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71074-60F11-E5supersedes 71074-60C20-E5i201812-201908
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71074-60F20-A1i201308-201508
SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71074-60F20-C1i201308-201508
SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71074-60G20-A0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),E
main71074-60G20-A2supersedes 71074-60A61-A3i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71074-60G20-A3supersedes 71074-60C20-A6i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71074-60G20-C0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),B
main71074-60G20-C2i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM20
main71074-60G20-C3i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM20
main71074-60G20-D2supersedes 71074-60F11-D3i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),DK.ROSE,TRIM21
main71074-60G20-E0i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71074-60G20-E1i201806-201808
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71074-60G20-E5i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71074-60G20-E6i201808-201812
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71074-60G20-E7supersedes 71074-60C20-E5i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71074-60G20-E8i201812-201908
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71074-60G20-E9supersedes 71074-60F11-E6i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71074-60J00-A2supersedes 71074-60A61-A3i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71074-60J00-A3supersedes 71074-60F11-A1i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71074-60J00-A4supersedes 71074-60F11-A2i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),ECRU,TRIM0#
main71074-60J00-C2i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71074-60J00-C3supersedes 71074-60F11-C5i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71074-60J00-C4supersedes 71074-60F11-C8i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM20
main71074-60J00-D2supersedes 71074-60F11-D3i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),DK.ROSE,TRIM21
main71074-60J00-D3supersedes 71074-60F11-D4i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),DK.ROSE,TRIM21
main71074-60J00-E5i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71074-60J00-E6i201808-201812
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71074-60J00-E7supersedes 71074-60C20-E5i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71074-60J00-E8i201812-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71074-60J00-E9supersedes 71074-60F11-E6i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71074-60J00-L0supersedes 71074-60F11-E7i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71074-60N10-A1supersedes 71074-60F11-A1i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71074-60N10-A2supersedes 71074-60F11-A2i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71074-60N10-C1supersedes 71074-60F11-C5i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM20
main71074-60N10-C2supersedes 71074-60F11-C8i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM20
main71074-60N10-D2supersedes 71074-60F11-D3i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71074-60N10-D3supersedes 71074-60F11-D4i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71074-60N10-E1supersedes 71074-60F11-E6i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71074-60N10-E2supersedes 71074-60F11-E7i202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-60550i201908
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-60360i201908
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71505-60140i200911-201206
main71505-60130supersedes 71505-60220i200911-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH
main71505-60210supersedes 71505-60220i201308-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71506-60140i200911-201206
main71506-60130supersedes 71506-60220i200911-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH
main71506-60210supersedes 71506-60220i201308-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)
71910AHEADREST ASSY, FRONT SEAT
main71910-60790-A1×2i201012-201206
ECRU,TRIM0#
sub71910-60E30
main71910-60790-C1×2i201012-201309
BLACK,TRIM2#
sub71910-60E30
main71910-60790-E1×2i201012-201206
SEPIA,TRIM4#
sub71910-60E30
main71910-60780-A1×2supersedes 71910-60B21-A0i200911-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,ECRU,TRIM0#
main71910-60780-C1×2supersedes 71910-60810-C2i200911-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,BLACK,TRIM2#
main71910-60780-E1×2supersedes 71910-60B21-E3i200911-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,SEPIA,TRIM4#
main71910-60800-A1×2supersedes 71910-60B21-A0i200911-201308
REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
main71910-60800-C1×2supersedes 71910-60810-C2i200911-201308
REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
main71910-60800-E1×2supersedes 71910-60B21-E3i200911-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
main71910-60A90-A1×2i201308-201508
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71910-60A90-C1×2supersedes 71910-60820-C2i201308-201508
SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71910-60A91-A2×2supersedes 71910-60821-A2i201808-201908
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71910-60A91-C2×2supersedes 71910-60821-C4i201808-201908
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main71910-60B00-A1×2supersedes 71910-60B21-A0i201308-201412
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71910-60B00-C1×2supersedes 71910-60B21-C3i201308-201412
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM20
main71910-60B00-E2×2supersedes 71910-60B21-D1i201308-201412
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71910-60B00-E3×2supersedes 71910-60B21-E3i201308-201412
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71910-60B01-A2×2i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71910-60B01-C2×2i201808-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM20
main71910-60B01-D1×2i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),DK.ROSE,TRIM21
main71910-60B01-E4×2i201808-201908
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),S
main71910-60B01-E5×2i201808-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71910-60B01-E6×2i201908-202108
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71910-60B11-A2×2supersedes 71910-60B21-A0i201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,ECRU,TRIM0#
main71910-60B11-C3×2supersedes 71910-60B21-C3i201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,BLACK,TRIM20
main71910-60B11-D1×2supersedes 71910-60B21-D1i201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,DK.ROSE,TRIM21
main71910-60B11-E5×2i201808-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SADDLE TAN,TRIM21
main71910-60B11-E6×2i201808-201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71910-60B11-E7×2supersedes 71910-60B21-E3i201908
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITHOUT,SEPIA,TRIM4#
main71910-60B20×2i201508-201711
PRE-COLLISION SYSTEM-WITHOUT&SEAT COVER MATERIAL-SYNTHETIC LEATHER
main71910-60B21-E2×2i201808-201908
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
main71910-60D50-A0×2supersedes 71910-60820-A1i201412-201808
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main71910-60D50-C0×2supersedes 71910-60D60-C0i201412-201808
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM20
main71910-60D50-E0×2supersedes 71910-60D60-E0i201412-201711
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SADDLE TAN,TRIM21
main71910-60D50-E1×2i201412-201808
SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main71910-60D70i201412-201508
SEAT COVER MATERIAL-SYNTHETIC LEATHER
main71910-60D70-C0i201508-201711
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main71910-60D70-C1×2i201308-201508
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),BLACK,TRIM2#
main71910-60D70-E0×2supersedes 71910-60D60-E1i201508-201808
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE),SEPIA,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47020-A2×2i200911-201206
W(LOCK),ECRU,TRIM0#
main71930-47020-C0×2i200911-201206
W(LOCK),BLACK,TRIM2#
main71930-47020-C4×2i201710-201908
W(LOCK),BLACK,TRIM2#
main71930-47020-E4×2i200911-201206
W(LOCK),SEPIA,TRIM4#
main71931-47020-A2×2i201308-201711
W/O(LOCK),ECRU,TRIM0#
main71931-47020-C0×2i201308-201710
W/O(LOCK),BLACK,TRIM2#
main71931-47020-C4×2i201908
W/O(LOCK),BLACK,TRIM2#
main71931-47020-E4×2supersedes 71931-47020-E4i200911-201206
W/O(LOCK),SEPIA,TRIM4#
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-60510supersedes 87510-60511i200911-201206
sub87510-60511
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-60510supersedes 87510-60511i200911-201206
sub87510-60511
87510MHEATER ASSY, FRONT SEATBACK, RH
main87510-60520i200911-201309
87510NHEATER ASSY, FRONT SEATBACK, LH
main87510-60520i200911-201308

14 parts on this diagram · 18 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
