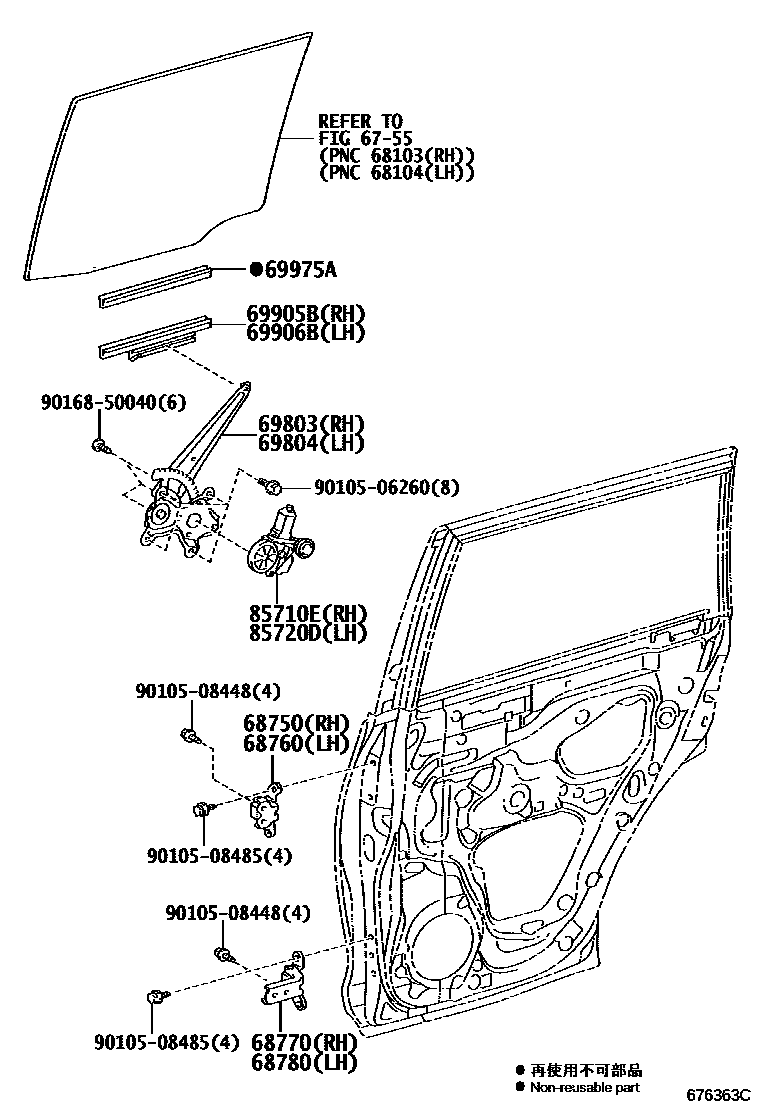

REAR DOOR WINDOW REGULATOR & HINGE

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iURJ150200911-201205

main68750-20122iGRJ158201308-201711

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iURJ150200911-201205

main68760-20122iGRJ158201308-201711

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iURJ150..CHI200911-201206

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iURJ150..CHI200911-201206

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-60070iURJ150..CHI200911-201206

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-60070iURJ150..CHI200911-201206

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-60080iGRJ158201308-201711

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-60070iURJ150..CHI200911-201206

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-22030×2iURJ150201912

main69975-60040×2iURJ150..GCC200911-201308

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-30431iGRJ158201301-201309

main85720-60240iURJ150200912-201107

main85720-60241iGRJ158;URJ150..GCC201108-201212

main85720-60340iGRJ158,URJ150201508-201511

main85720-60341iGRJ158201512-201711

main85720-60400iURJ150202004

main85720-75040iURJ150200911-200912

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-30491iGRJ158,URJ150201308-201508

main85710-60260iURJ150200912-201107

main85710-60261iGRJ158;URJ150..GCC201108-201212

main85710-60360iGRJ158,URJ150201508-201511

main85710-60361iGRJ158201512-201711

main85710-60430iURJ150202004

main85710-75040iURJ150200911-200912

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
