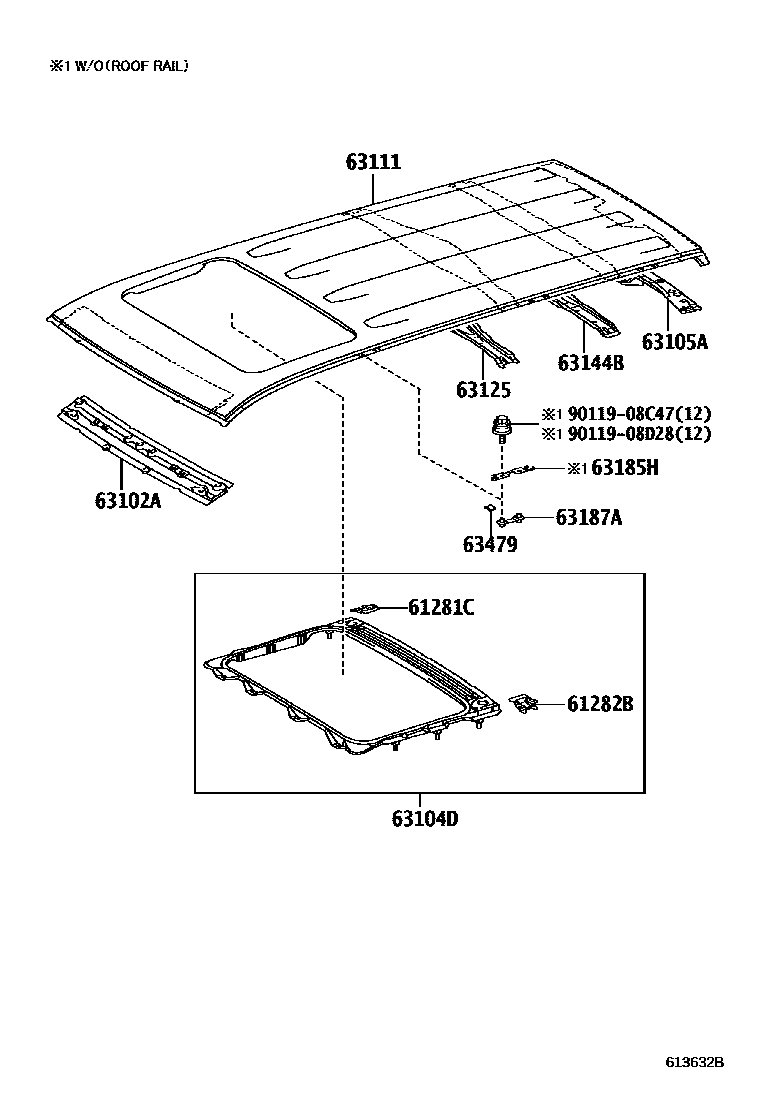

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1SLIDING ROOF 0003 1ROOF RACK

61281CBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-60050iURJ150..CHI200911-201206

61282BBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 LH

main61282-60010iURJ150..CHI200911-201206

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60140iURJ150..CHI200911-201206

main63102-60141iGRJ158201611-201711

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-60070iURJ150..CHI200911-201206

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60300iURJ150201308-201908

63111PANEL, ROOF

main63111-60630iGRJ158201308-201711

main63111-60650iGRJ158201309-201508

MAYDAY SYSTEM-WITH

main63111-60840iGRJ158201508-201711

MAYDAY SYSTEM-WITH

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-60070iURJ150201308-201908

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-60070iURJ150..CHI200911-201206

63185HBRACKET, ROOF RACK

main63185-42020×6iURJ150..CHI200911-201206

63187ABRACKET, ROOF RACK, REAR

main63187-35020×6iURJ150..GCC200911-201308

63479RETAINER, ROOF INNER RACK

main63479-60020×6iGRJ158200911-201309

9011908C47

main90119-08C47

9011908D28

main90119-08D28

13 parts on this diagram · 3 diagrams in section
