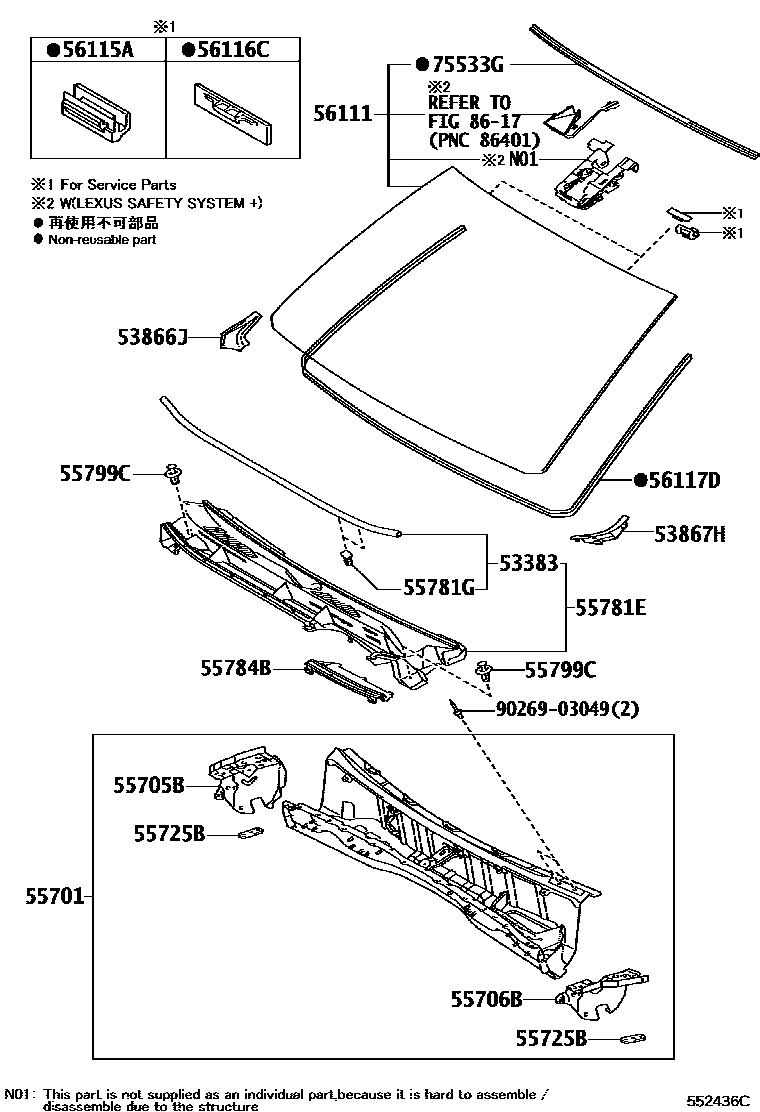

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-60080i200911-201308

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-60080i200911-201206

main53866-60081i201403-201411

main53866-60090i201412-201711

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-60070i200911-201206

main53867-60090i201412-201711

55701PANEL SUB-ASSY, COWL

main55700-60C00i200911-201206

main55700-60C01i201503-201702

main55700-60C02i201703-201711

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-60020i200911-201206

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-60050i201308-201908

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020×2i200911-201206

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-60160i200911-201105

main55708-60161i201106-201206

main55708-60162i201402-201711

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×2i200911-201206

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-60080i200911-201206

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07211×2i200911-201206

main90467-07217×2i201402-201711

56111GLASS, WINDSHIELD

main56101-60300i200911-201206

*EHL,T=5.36,GREEN

main56101-60820i201308-201506

*EHL,T=5.36,GREEN,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)

main56101-60821supersedes 56101-60800i201507-201711

INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)

main56101-60830supersedes 56101-60800i201308-201507

*LAM,T=5.36,GREEN,WINDSHIELD DEICER-WITHOUT&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)

main56101-60M90supersedes 56101-60M80i201908-202008

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&INTERMITTENT WIPER-INT(TIME ADJUSTMENT)

main56101-60M91supersedes 56101-60M81i202008

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&INTERMITTENT WIPER-INT(TIME ADJUSTMENT)

main56101-60N00supersedes 56101-60M80i201908-202008

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

main56101-60N01supersedes 56101-60M81i202008

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100i201908

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i200911-201308

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-60110i200911-201206

L=2823

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-60060i200911-201206

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

9026903049

main90269-03049

18 parts on this diagram · 1 diagram in section
