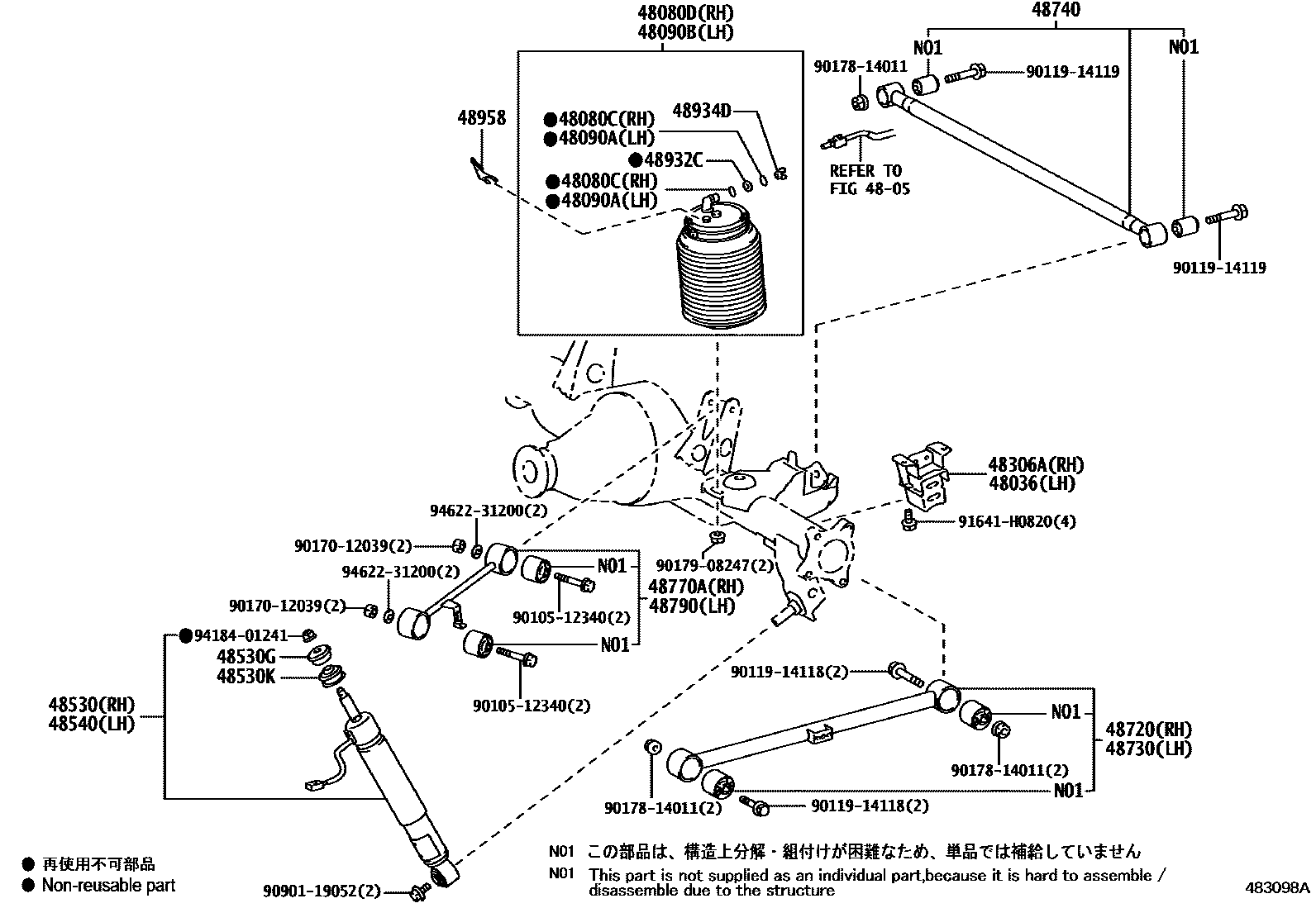

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

48036BUMPER SUB-ASSY, REAR SPRING, LH

main48036-60030iURJ150..CHI200911-201206

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

48080CRING, O(FOR REAR PNEUMATIC CYLINDER RH)

main90301-04011×2iURJ150..CHI200911-201206

48080DCYLINDER ASSY, PNEUMATIC, REAR RH

main48080-60010iURJ150..CHI200911-201206

48090ARING, O(FOR REAR PNEUMATIC CYLINDER LH)

main90301-04011×2iURJ150..CHI200911-201206

48090BCYLINDER ASSY, PNEUMATIC, REAR LH

main48090-60010iURJ150..CHI200911-201206

48306ABUMPER SUB-ASSY, REAR SPRING, RH

main48306-60240iURJ150..CHI200911-201206

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-69535iURJ150..CHI200911-201206

MARK 48530-60210

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main48505-60110×2iURJ150..CHI200911-201206

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main48505-60120×2iURJ150..CHI200911-201206

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-69535iURJ150..CHI200911-201206

MARK 48530-60210

48720ARM ASSY, LOWER CONTROL, RH

main48720-35061iURJ150..CHI200911-201206

48730ARM ASSY, LOWER CONTROL, LH

main48720-35061iURJ150..CHI200911-201206

48740ROD ASSY, REAR LATERAL CONTROL

main48740-60160iURJ150..GCC200911-201308

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-60010iURJ150..CHI200911-201206

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-60010iURJ150..CHI200911-201206

48932CPLATE, HEIGHT CONTROL TUBE

main48932-30010×2iURJ150..GCC200911-201308

48934DCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010×2iGRJ158200911-201309

48958CLIP, PNEUMATIC CYLINDER

main48958-35020×2iURJ150..CHI200911-201206

9010512340

main90105-12340

9011914118

main90119-14118

9011914119

main90119-14119

9017012039

main90170-12039

9017814011

main90178-14011

9017908247

main90179-08247

9090119052

main90901-19052

91641H0820

main91641-H0820

9418401241

main94184-01241

9462231200

main94622-31200

29 parts on this diagram · 2 diagrams in section
