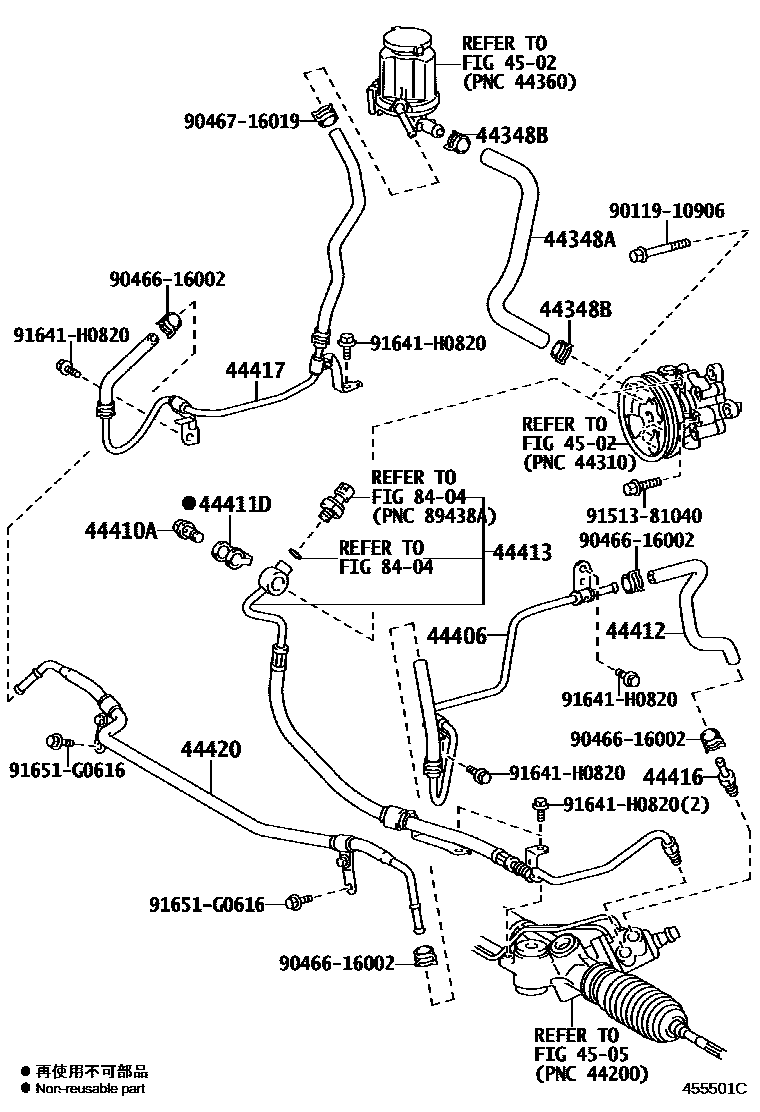

POWER STEERING TUBE

0001 1 0002 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-35300iURJ150..GCC200911-201308

main44348-60430iGRJ158201206-201309

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90467-21010×2iURJ150..CHI200911-201206

main96137-42501×2iURJ150201908

44406TUBE SUB-ASSY, RETURN

main44406-60030iGRJ158201308-201711

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16034iURJ150..CHI200911-201206

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30040iURJ150..CHI200911-201206

44412HOSE, RETURN

main44412-35370iURJ150..CHI200911-201206

main44412-60430iGRJ158201309-201711

44413TUBE, PRESSURE FEED, NO.1

main44413-60130iURJ150..GCC200911-201308

main44413-60160iGRJ158201206-201309

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60450iURJ150201908

44417TUBE, RETURN, NO.2

main44417-60010iURJ150..CHI200911-201206

44420COOLER ASSY, OIL

main44420-60501iURJ150..CHI200911-201206

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011910906

main90119-10906

9046616002

main90466-16002

9046716019

main90467-16019

9151381040

main91513-81040

91641H0820

main91641-H0820

91651G0616

main91651-G0616

19 parts on this diagram · 2 diagrams in section
