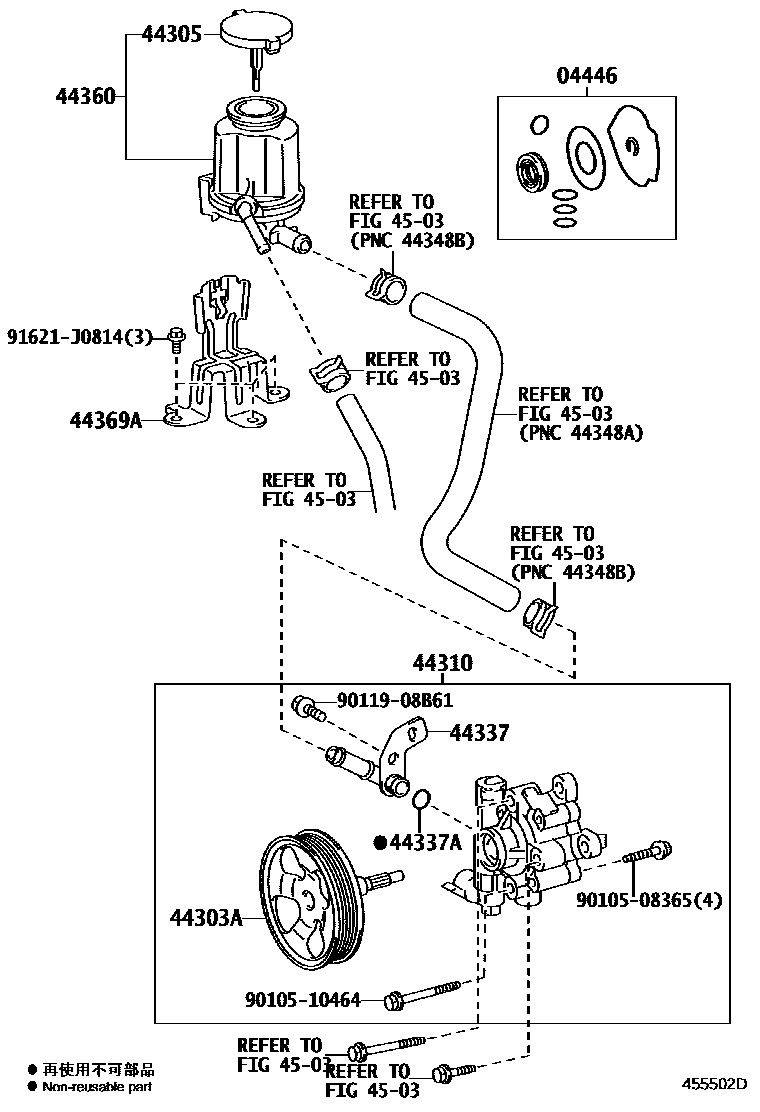

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-12080iURJ150..GCC200911-201308

main04446-35080iGRJ158201206-201309

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-35020iURJ150201308-201908

main44303-60020iGRJ158201309-201711

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28060iURJ150..CHI200911-201206

main44305-28061iURJ150201208-201308

44310PUMP ASSY, VANE

main44310-35750iGRJ158201206-201309

main44310-60570iURJ150..CHI200911-201206

main44310-60571iURJ150201908

44337UNION, POWER STEERING SUCTION PORT

main44337-35110iURJ150..GCC200911-201308

main44337-60230iGRJ158201206-201309

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iURJ150201908

main90301-15025iGRJ158201206-201309

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-60320iURJ150..CHI200911-201206

main44360-60321iURJ150201208-201308

44369ABRACKET, OIL RESERVOIR, NO.1

main44369-60080iURJ150..CHI200911-201206

4503

9010508365

main90105-08365

9010510464

main90105-10464

9011908B61

main90119-08B61

91621J0814

main91621-J0814

13 parts on this diagram · 2 diagrams in section
