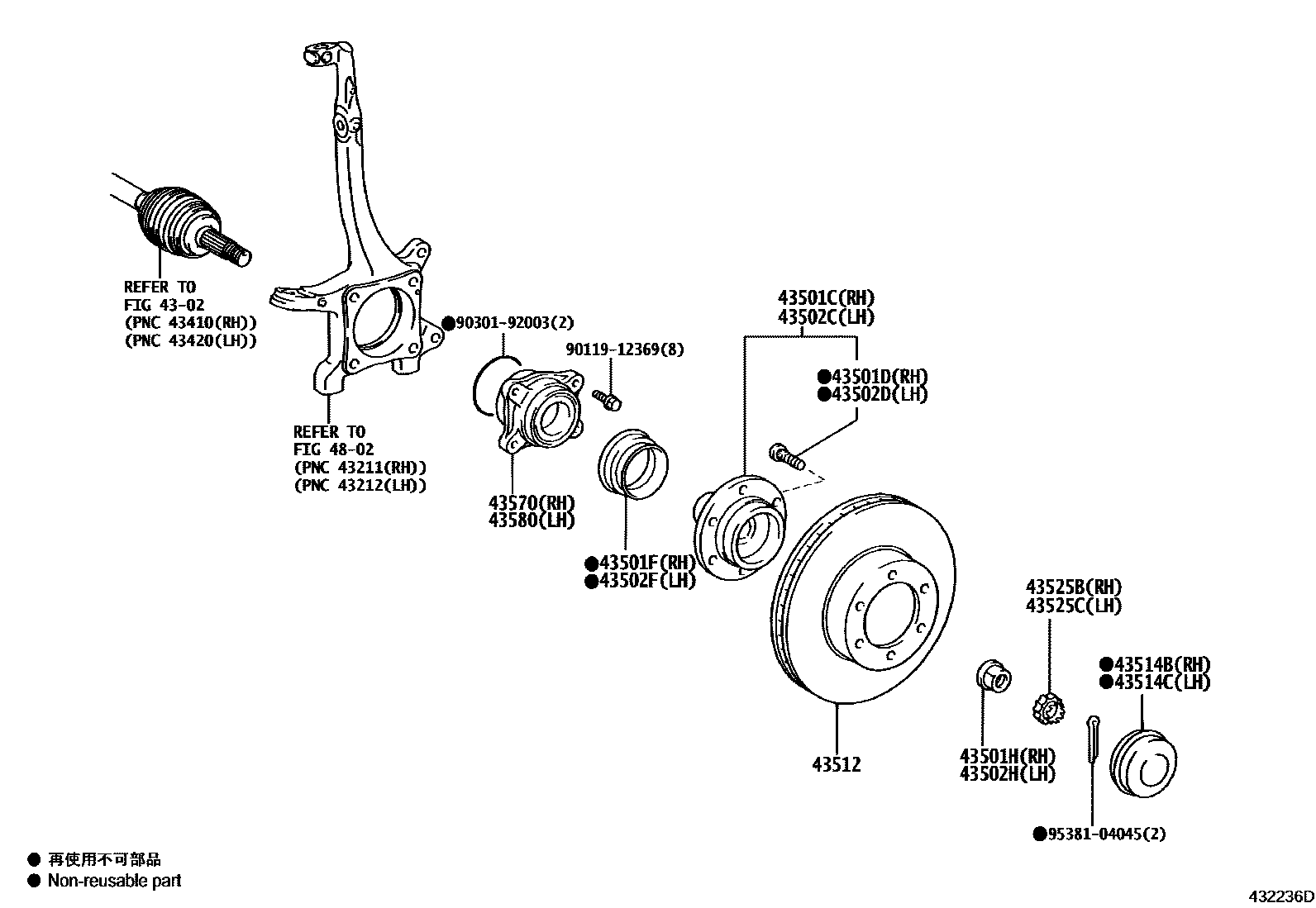

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-60200iURJ150200911-201006

main43502-60201iGRJ158201308-201711

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×6iURJ150..CHI200911-201206

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-96001iURJ150..CHI200911-201206

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-28001iURJ150202306

main90178-28002iURJ150201308-201908

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-60200iURJ150200911-201006

main43502-60201iURJ150..CHI201007-201206

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×6iURJ150..CHI200911-201206

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-96001iURJ150..CHI200911-201206

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-28001iURJ150202306

main90178-28002iGRJ158201308-201711

43512DISC, FRONT

main43512-60190×2iURJ150..CHI200911-201206

main43512-60191×2iGRJ158201308-201711

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-28010iURJ150..CHI200911-201206

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-28010iURJ150..CHI200911-201206

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-35010iURJ150..CHI200911-201206

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-35010iURJ150..CHI200911-201206

43570BEARING ASSY, FRONT AXLE W/ABS ROTOR RH

main43570-60010iURJ150200911-201108

main43570-60011iURJ150..CHI201109-201206

43580BEARING ASSY, FRONT AXLE W/ABS ROTOR LH

main43570-60010iURJ150200911-201108

main43570-60011iURJ150..CHI201109-201206

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9011912369

main90119-12369

9030192003

main90301-92003

9538104045

main95381-04045

20 parts on this diagram · 1 diagram in section
