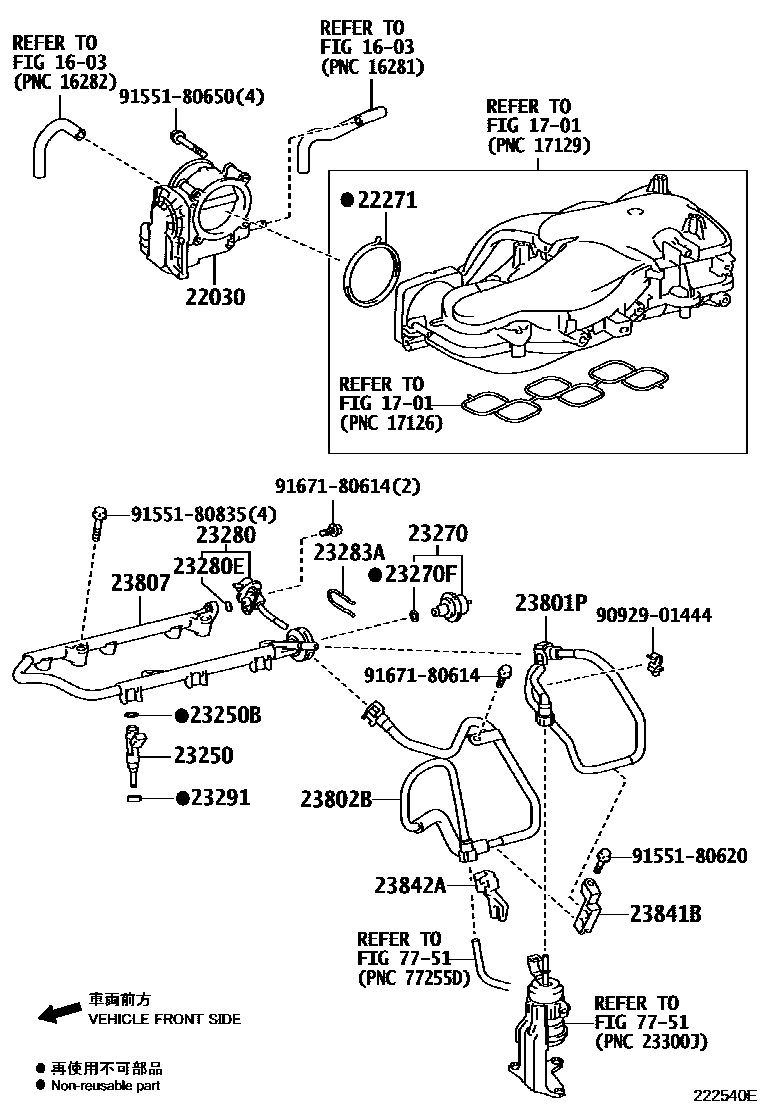

FUEL INJECTION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31060i1GRFE..GRJ158201206-201711

main22030-38041i1URFE..URJ150200911-201908

22271GASKET, THROTTLE BODY

main22271-31040i1GRFE..GRJ158201206-201711

main22271-50050i1URFE..URJ150200911-201908

23250INJECTOR ASSY, FUEL

main23209-39165i1URFE..URJ150..CHI200911-201908

main23209-39215i1GRFE..GRJ158201206-201711

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033i1GRFE..GRJ158201206-201711

main90301-07037i1URFE..URJ150..CHI200911-201908

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31140i1GRFE..GRJ158201206-201711

23270FRING, O(FOR PULSATION DAMPER)

main90301-07033i1GRFE..GRJ158201206-201711

23280REGULATOR ASSY, FUEL PRESSURE

main23280-31051i1GRFE..GRJ158201206-201711

main23280-38060i1URFE..URJ150200911-201206

main23280-38061i1URFE..URJ150201206-201908

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07034i1GRFE..GRJ158201206-201711

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i1GRFE..GRJ158201206-201711

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i1URFE..URJ150..CHI200911-201908

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31160i1GRFE..GRJ158201206-201711

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31110i1GRFE..GRJ158201206-201711

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31120i1GRFE..GRJ158201206-201711

main23814-38130i1URFE..URJ150200911-201205

main23814-38131i1URFE..URJ150201205-201908

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31080i1GRFE..GRJ158201206-201711

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-50010i1URFE..URJ150..CHI200911-201908

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9092901444

main90929-01444

9155180620

main91551-80620

9155180650

main91551-80650

9155180835

main91551-80835

9167180614

main91671-80614

23 parts on this diagram · 2 diagrams in section
