AIR CLEANER

0001 1 0002 1

1201VENTILATION HOSE

→ Go to FIG 12-01

1708VACUUM PIPING

→ Go to FIG 17-08

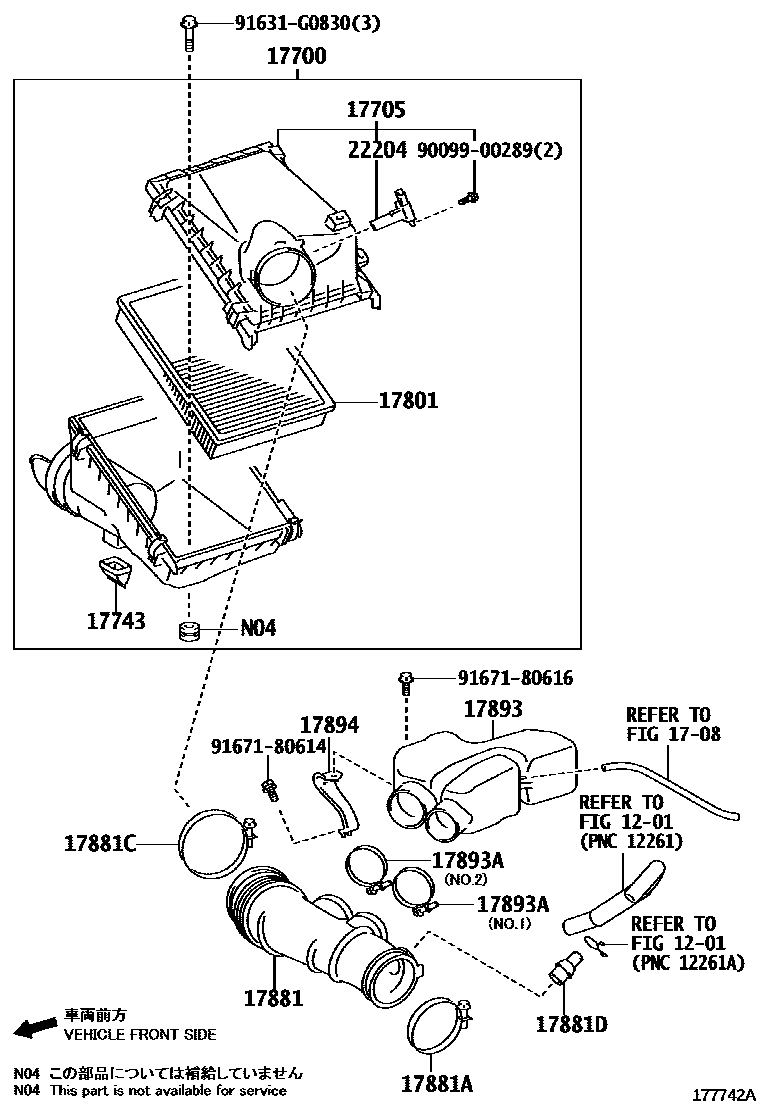

17700CLEANER ASSY, AIR

main17700-31852i1GRFE..GRJ158201309-201711

main17700-38220i1URFE..URJ150200911-201106

main17700-38221i1URFE..URJ150..GCC201107-201308

17705CAP SUB-ASSY, AIR CLEANER

main17705-31371i1GRFE..GRJ158201206-201309

main17705-38150i1URFE..URJ150..CHI200911-201206

17743VALVE, DUST RELIEF

main17743-50010i1URFE..URJ150201308-201908

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-38050i1URFE..URJ150200911-201106

main17801-38051i1URFE..URJ150..CHI201107-201206

17881HOSE, AIR CLEANER, NO.1

main17881-31250i1GRFE..GRJ158201206-201309

main17881-38050i1URFE..URJ150..CHI200911-201206

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-30900i1GRFE..GRJ158201206-201309

main96111-31060i1URFE..URJ150..CHI200911-201206

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-31060i1GRFE..GRJ158201309-201711

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i1GRFE..GRJ158201309-201711

17893RESONATOR, INTAKE AIR

main17893-31130i1GRFE..GRJ158201206-201309

main17893-38040i1URFE..URJ150..CHI200911-201206

17893ACLAMP, HOSE

main96111-10690i1GRFE..GRJ158201206-201309

NO.1

main96111-10750i1GRFE..GRJ158201206-201309

NO.2

17894BRACKET, RESONATOR

main17894-31050i1GRFE..GRJ158201309-201711

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i1GRFE..GRJ158201206-201309

MARK 22204-0T040

main22204-0V010i1GRFE..GRJ158201206-201309

MARK 22204-0V010

main22204-0V020i1GRFE..GRJ158201309-201711

MARK 22204-0V020

main22204-28010i1GRFE..GRJ158201309-201711

MARK 22204-28010

main22204-75030i1URFE..URJ150..GCC200911-201308

9009900289

main90099-00289

91631G0830

main91631-G0830

9167180614

main91671-80614

9167180616

main91671-80616

18 parts on this diagram · 2 diagrams in section
