V-BELT

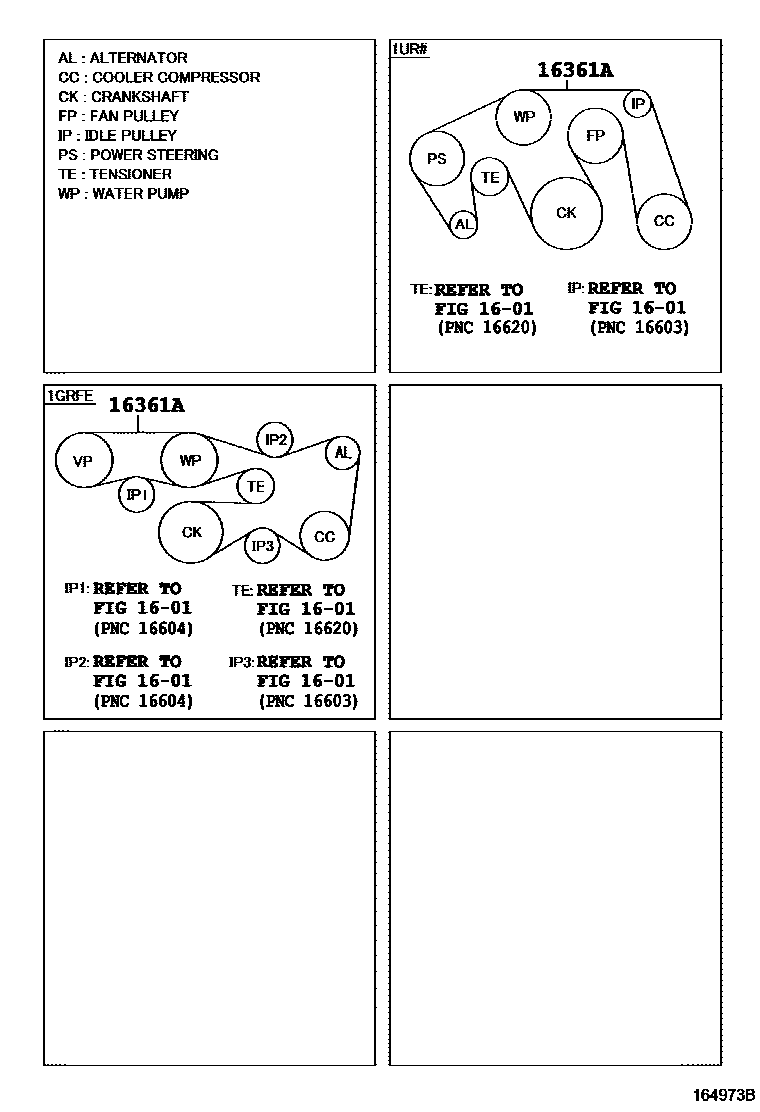

Parts diagram

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02680i201308-201706

main90916-02759i201908

main99367-H2150i201309-201711

2 parts on this diagram · 1 diagram in section
