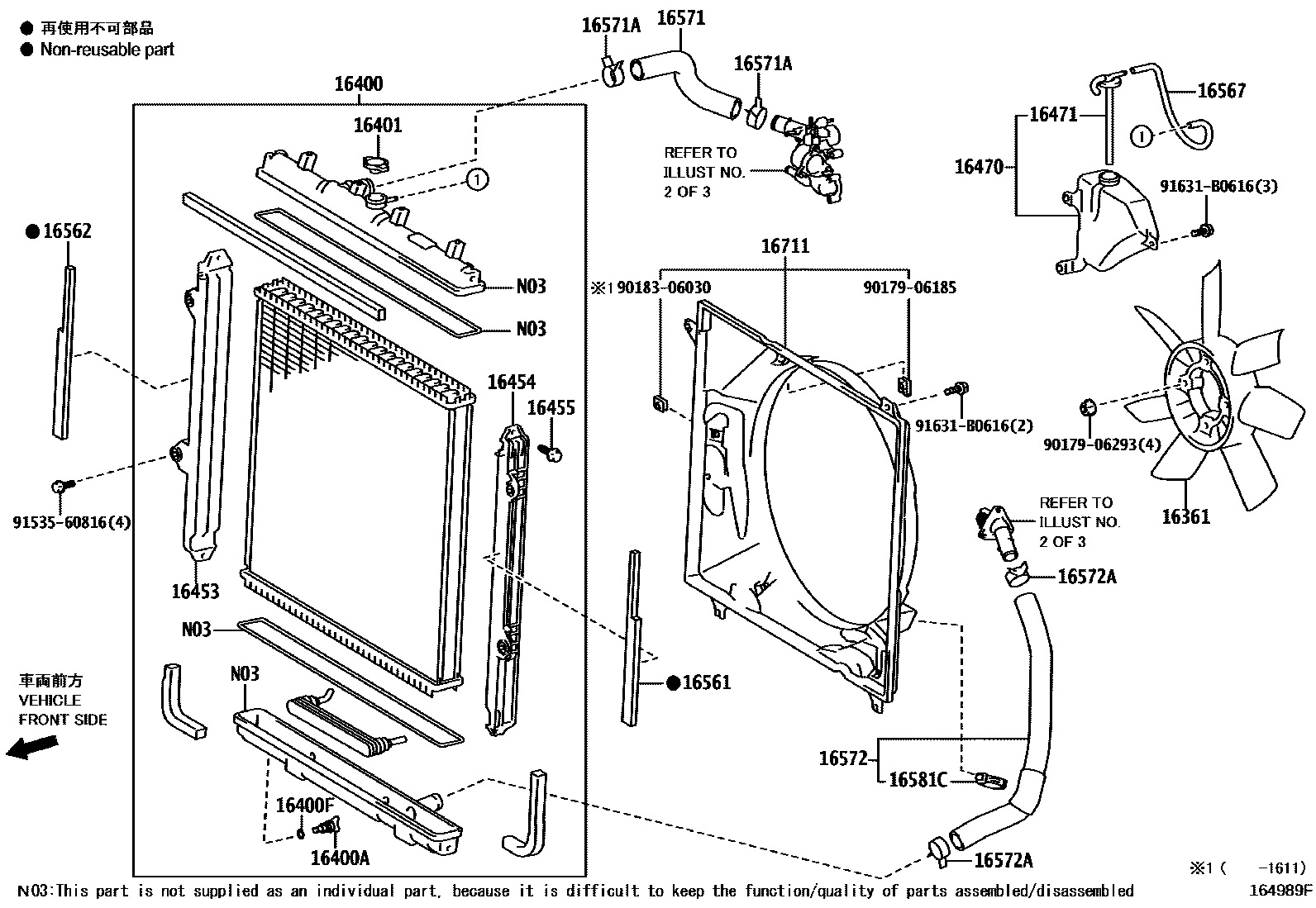

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1W(EGR) 0006 1W/O(EGR)

16361FAN

main16361-31060i1GRFE..GRJ158201206-201309

main16361-38140i1URFE..URJ150201908

16400RADIATOR ASSY

main16400-31711i1GRFE..GRJ158201309-201409

main16400-31712i1GRFE..GRJ158201410-201603

main16400-31713i1GRFE..GRJ158201604-201711

main16400-31731i1GRFE..GRJ158201206-201211

main16400-38250i1URFE..URJ150200911-201206

main16400-38251i1URFE..URJ150201206-201308

main16400-38252i1URFE..URJ150201410-201603

main16400-38253i1URFE..URJ150201604-201908

main16400-38290i1URFE..URJ150202108

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-21280i1GRFE..GRJ158201206-201309

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1URFE..URJ150..GCC200911-201308

16401CAP SUB-ASSY, RADIATOR

main16401-31791i1URFE..URJ150201206-201308

main16401-31792i1GRFE..GRJ158; 1URFE..URJ150201410-201603

main16401-31830i1GRFE..GRJ158201604-201711

main16401-46610i1URFE..URJ150200911-201206

16453PLATE, RADIATOR SIDE

main16453-31710i1GRFE..GRJ158201309-201711

16454PLATE, RADIATOR SIDE

main16454-31710i1GRFE..GRJ158201309-201711

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main91651-B0820×4i1GRFE..GRJ158201309-201711

16470TANK ASSY, RADIATOR RESERVE

main16470-31050i1URFE..URJ150..GCC200911-201308

16471CAP SUB-ASSY, RESERVE TANK

main16405-22040i1URFE..URJ150201702-201908

main16405-50051i1GRFE..GRJ158201309-201702

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-31080i1URFE..URJ150..GCC200911-201308

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-31020i1URFE..URJ150..CHI200911-201206

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-31020i1GRFE..GRJ158201309-201711

main16567-38040i1URFE..URJ150..GCC200911-201308

16571HOSE, RADIATOR, INLET

main16571-31270i1GRFE..GRJ158201206-201309

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main96136-44301×2i1GRFE..GRJ158201206-201309

16572HOSE, RADIATOR, OUTLET

main16572-31360i1GRFE..GRJ158201206-201309

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96136-44301×2i1GRFE..GRJ158201206-201309

16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)

main16581-28070i1GRFE..GRJ158201206-201309

16711SHROUD, FAN

main16711-31490i1GRFE..GRJ158201206-201309

main16711-31491i1GRFE..GRJ158201612-201711

main16711-38170i1URFE..URJ150..GCC200911-201308

9017906185

main90179-06185

9017906293

main90179-06293

9018306030

main90183-06030

9153560816

main91535-60816

91631B0616

main91631-B0616

24 parts on this diagram · 6 diagrams in section
