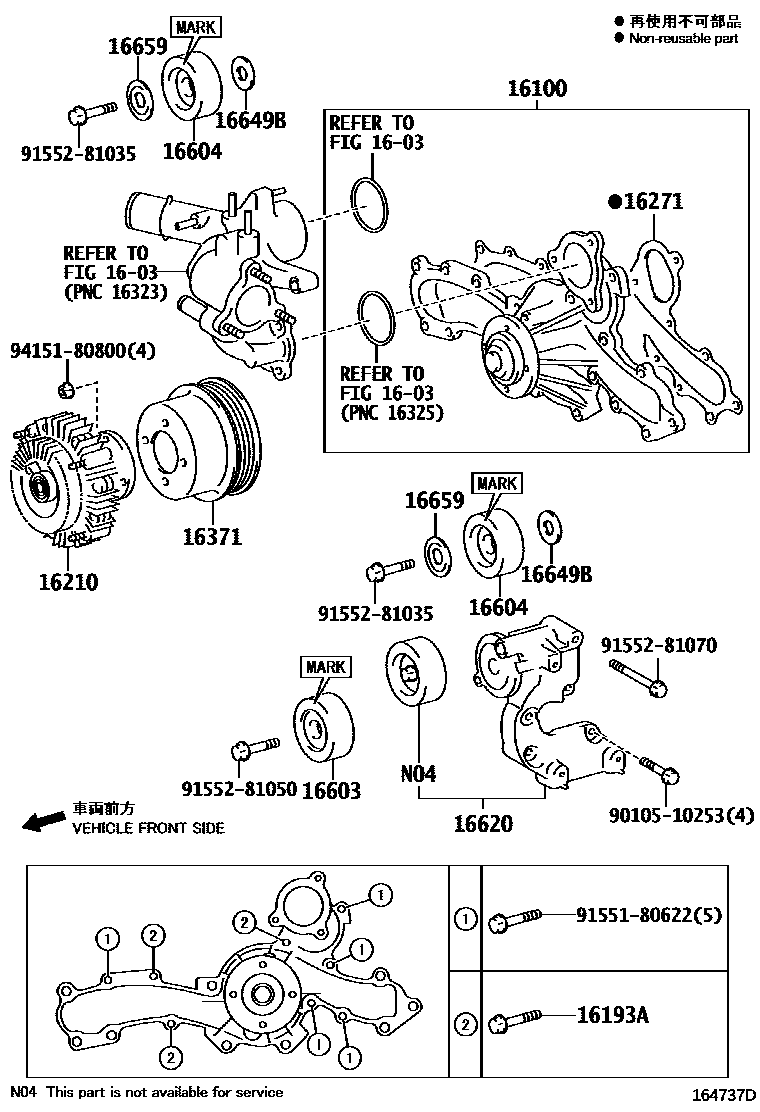

WATER PUMP

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-39545i1GRFE..GRJ158201309-201711

main16100-39555i1URFE..URJ150..GCC200911-201308

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080×3i1GRFE..GRJ158201206-201309

16210COUPLING ASSY, FLUID

main16210-31040i1GRFE..GRJ158201206-201309

main16210-38080i1URFE..URJ150..CHI200911-201206

main16210-38081i1URFE..URJ150201411-201712

main16210-38082i1URFE..URJ150201801-201908

16271GASKET, WATER PUMP

main16271-31040i1GRFE..GRJ158201206-201309

main16271-38030i1URFE..URJ150201908

16371PULLEY, FAN

main16371-31040i1GRFE..GRJ158201206-201309

main16371-38010i1URFE..URJ150..CHI200911-201206

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-31050i1GRFE..GRJ158201206-201309

main16603-38010i1URFE..URJ150..CHI200911-201206

main16603-38011i1URFE..URJ150201212-201308

main16603-38012i1URFE..URJ150201903-201908

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31020×2i1GRFE..GRJ158201206-201309

MARK=PU107013ARMXY3

main16604-31030×2i1GRFE..GRJ158201206-201309

MARK=PU107016RMXY

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0S010i1URFE..URJ150..GCC200911-201209

main16620-0S011i1URFE..URJ150201308-201706

main16620-0S012i1URFE..URJ150201707-201908

main16620-31051i1GRFE..GRJ158201206-201309

16649BPLATE, IDLER PULLEY COVER

main16649-31020×2i1GRFE..GRJ158201206-201309

MARK=PU107013ARMXY3

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011×2i1GRFE..GRJ158201309-201711

MARK=PU107013ARMXY3

9010510253

main90105-10253

9155180622

main91551-80622

9155281035

main91552-81035

9155281050

main91552-81050

9155281070

main91552-81070

9415180800

main94151-80800

17 parts on this diagram · 2 diagrams in section
