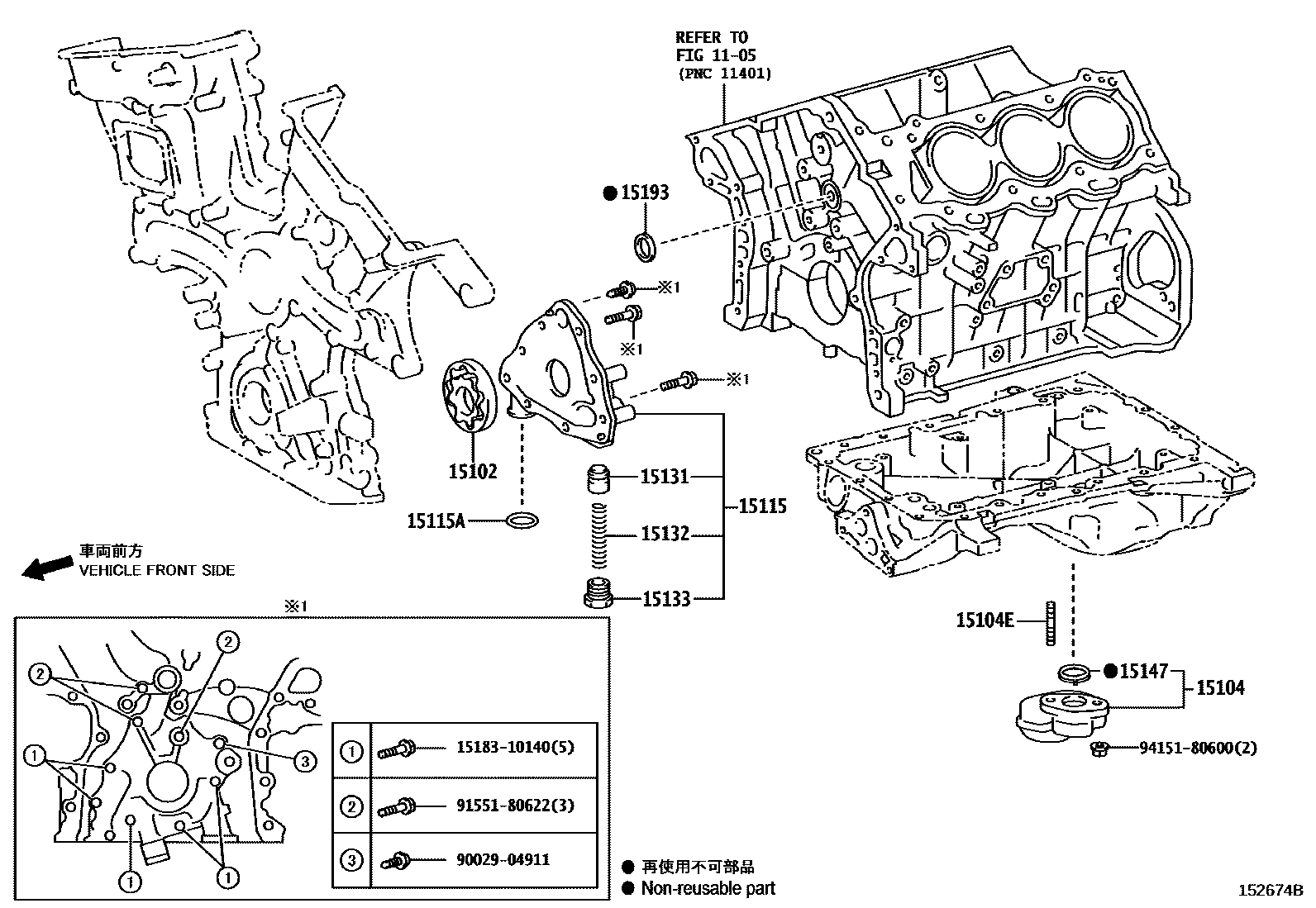

ENGINE OIL PUMP

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

15102ROTOR SET, OIL PUMP

main15103-31080i1GRFE..GRJ158201206-201309

main15103-38060i1URFE..URJ150..GCC200911-201308

15104STRAINER SUB-ASSY, OIL

main15104-0S010i1URFE..URJ150201908

main15104-31140i1GRFE..GRJ158201309-201711

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06029×2i1GRFE..GRJ158201206-201309

15115COVER, OIL PUMP

main15115-31080i1GRFE..GRJ158201206-201309

15115ARING, O(FOR OIL PUMP COVER)

main96722-24030i1GRFE..GRJ158201206-201309

15131VALVE, OIL PUMP RELIEF

main15131-17010i1GRFE..GRJ158201206-201309

main15131-38070i1URFE..URJ150..CHI200911-201206

15132SPRING, OIL PUMP RELIEF VALVE

main15132-38070i1URFE..URJ150201308-201908

main15132-46020i1GRFE..GRJ158201206-201309

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i1GRFE..GRJ158201309-201711

main15133-38070i1URFE..URJ150201308-201908

15147GASKET, OIL STRAINER

main15147-31070i1GRFE..GRJ158201206-201309

15193GASKET, OIL PUMP

main15193-38010i1URFE..URJ150..CHI200911-201206

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

9002904911

main90029-04911

9155180622

main91551-80622

9415180600

main94151-80600

15 parts on this diagram · 2 diagrams in section
