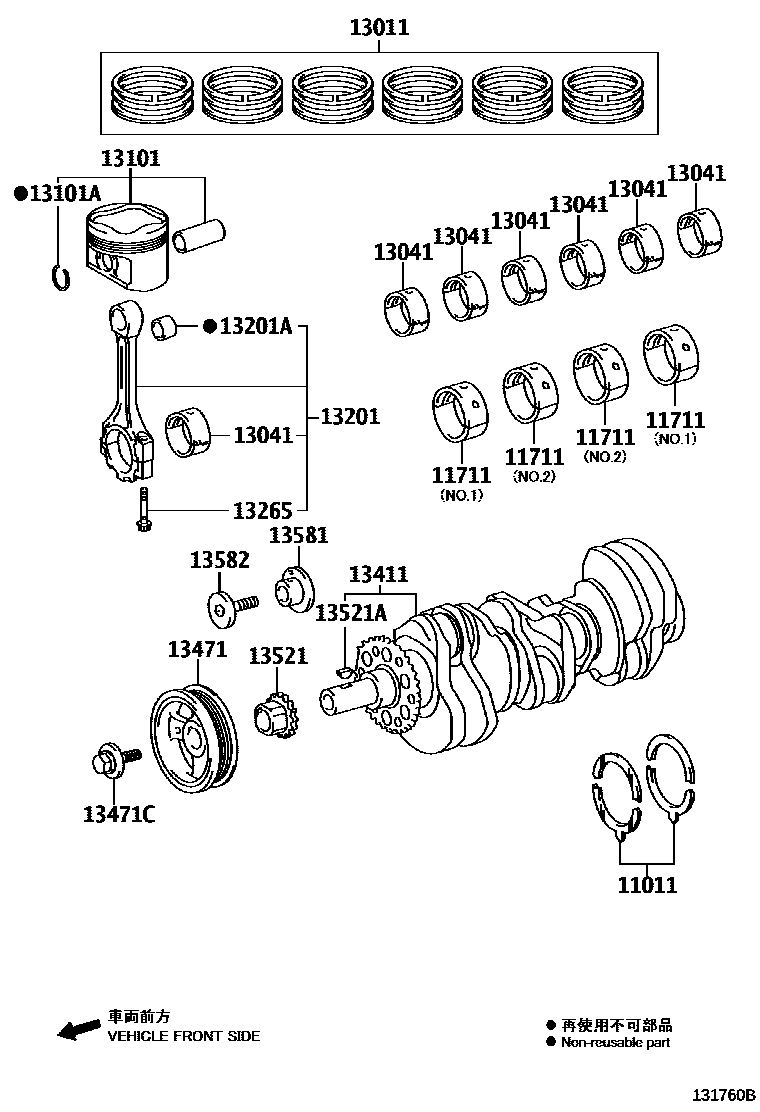

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
11711BEARING, CRANKSHAFT
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M
MARKUPPER3LOWER4,NO.2,REFER R/M
MARKUPPER4LOWER4,NO.2,REFER R/M
MARKUPPER4LOWER5,NO.2,REFER R/M
MARKUPPER5LOWER5,NO.2,REFER R/M
MARKUPPER5LOEWR6,NO.2,REFER R/M
MARKUPPER6LOWER6,NO.2,REFER R/M
MARKUPPER6LOWER7,NO.2,REFER R/M
MARKUPPER7LOWER7,NO.2,REFER R/M
MARKUPPER7LOWER8,NO.2,REFER R/M
MARKUPPER8LOWER8,NO.2,REFER R/M
MARK UPPER 3 LOWER 4,NO.2,REFER R/M
MARK UPPER 4 LOWER 4,NO.2,REFER R/M
MARK UPPER 4 LOWER 5,NO.2,REFER R/M
MARK UPPER 5 LOWER 5,NO.2,REFER R/M
MARK UPPER 5 LOWER 6,NO.2,REFER R/M
MARK UPPER 6 LOWER 6,NO.2,REFER R/M
MARK UPPER 6 LOWER 7,NO.2,REFER R/M
MARK UPPER 7 LOWER 7,NO.2,REFER R/M
MARK UPPER 7 LOWER 8,NO.2,REFER R/M
MARK UPPER 8 LOWER 8,NO.2,REFER R/M
MARKUPPER4LOWER5,NO.1,3 *RRM
MARKUPPER5LOWER5,NO.1,3 *RRM
MARKUPPER5LOWER6,NO.1,3 *RRM
MARKUPPER6LOWER6,NO.1,3 *RRM
MARKUPPER6LOWER7,NO.1,3 *RRM
MARKUPPER7LOWER7,NO.1,3 *RRM
MARKUPPER7LOWER8,NO.1,3 *RRM
MARKUPPER8LOWER8,NO.1,3 *RRM
MARKUPPWE8LOWER9,NO.1,3 *RRM
MARKUPPER9LOWER9,NO.1,3 *RRM
MARK UPPER 4 LOWER 5,NO.1,3 *RRM
MARK UPPER 5 LOWER 5,NO.1,3 *RRM
MARK UPPER 5 LOWER 6,NO.1,3 *RRM
MARK UPPER 6 LOWER 6,NO.1,3 *RRM
MARK UPPER 6 LOWER 7,NO.1,3 *RRM
MARK UPPER 7 LOWER 7,NO.1,3 *RRM
MARK UPPER 7 LOWER 8,NO.1,3 *RRM
MARK UPPER 8 LOWER 8,NO.1,3 *RRM
MARK UPPER 8 LOWER 9,NO.1,3 *RRM
MARK UPPER 9 LOWER 9,NO.1,3 *RRM
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 5,NO.1,REFER R/M
13011RING SET, PISTON
STD
STD
13041BEARING, CONNECTING ROD
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK6,REFER REPAIR MANUAL
MARK7,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A
MARK B
MARK C
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13581SHAFT, IDLE GEAR, NO.1
13582SHAFT, IDLE GEAR, NO.2
