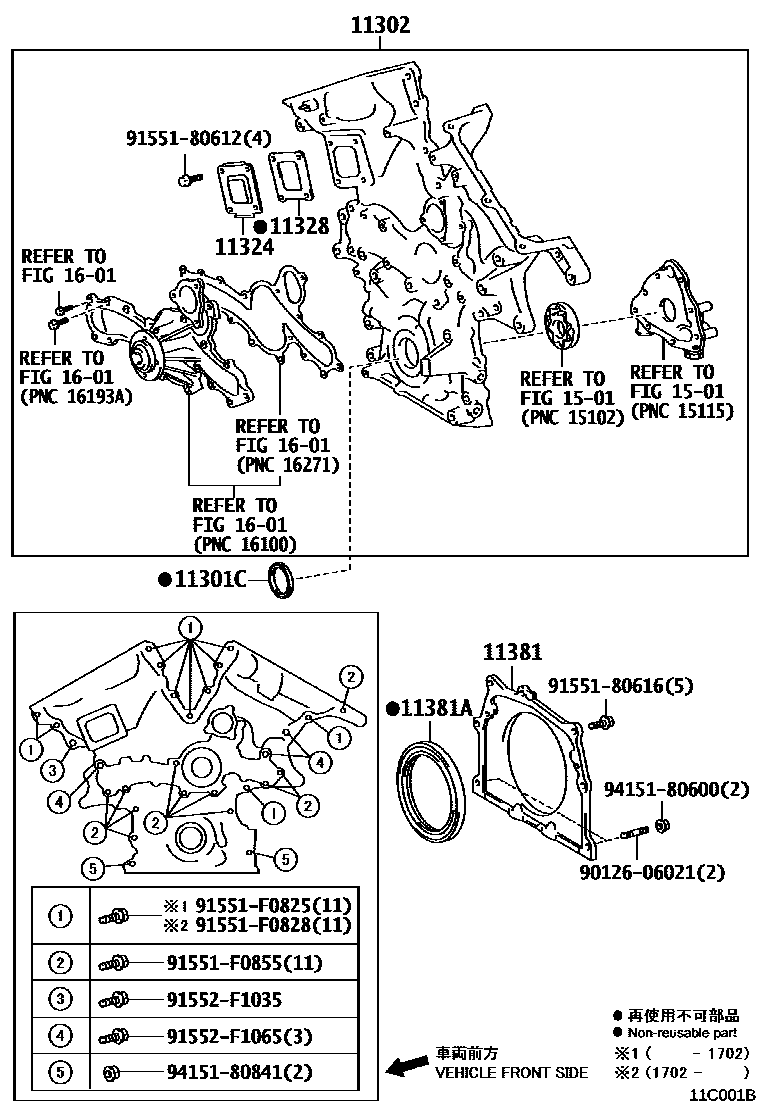

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42036i1URFE..URJ150..CHI200911-201206

main90311-42048i1GRFE..GRJ158201206-201309

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-31030i1GRFE..GRJ158201206-201309

main11310-38110i1URFE..URJ150..CHI200911-201206

11324PLATE, TIMING CHAIN COVER

main11324-31020i1GRFE..GRJ158201206-201309

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i1GRFE..GRJ158201309-201711

main11328-38030×2i1URFE..URJ150201308-201908

11381RETAINER, ENGINE REAR OIL SEAL

main11381-31010i1GRFE..GRJ158201206-201309

main11381-38020i1URFE..URJ150201908

11381ASEAL, ENGINE REAR OIL

main90311-95013i1URFE..URJ150..CHI200911-201206

main90311-99010i1GRFE..GRJ158201206-201309

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1601WATER PUMP

→ Go to FIG 16-01

9012606021

main90126-06021

9155180612

main91551-80612

9155180616

main91551-80616

91551F0825

main91551-F0825

91551F0828

main91551-F0828

91551F0855

main91551-F0855

91552F1035

main91552-F1035

91552F1065

main91552-F1065

9415180600

main94151-80600

9415180841

main94151-80841

18 parts on this diagram · 2 diagrams in section
