SHORT BLOCK ASSEMBLY

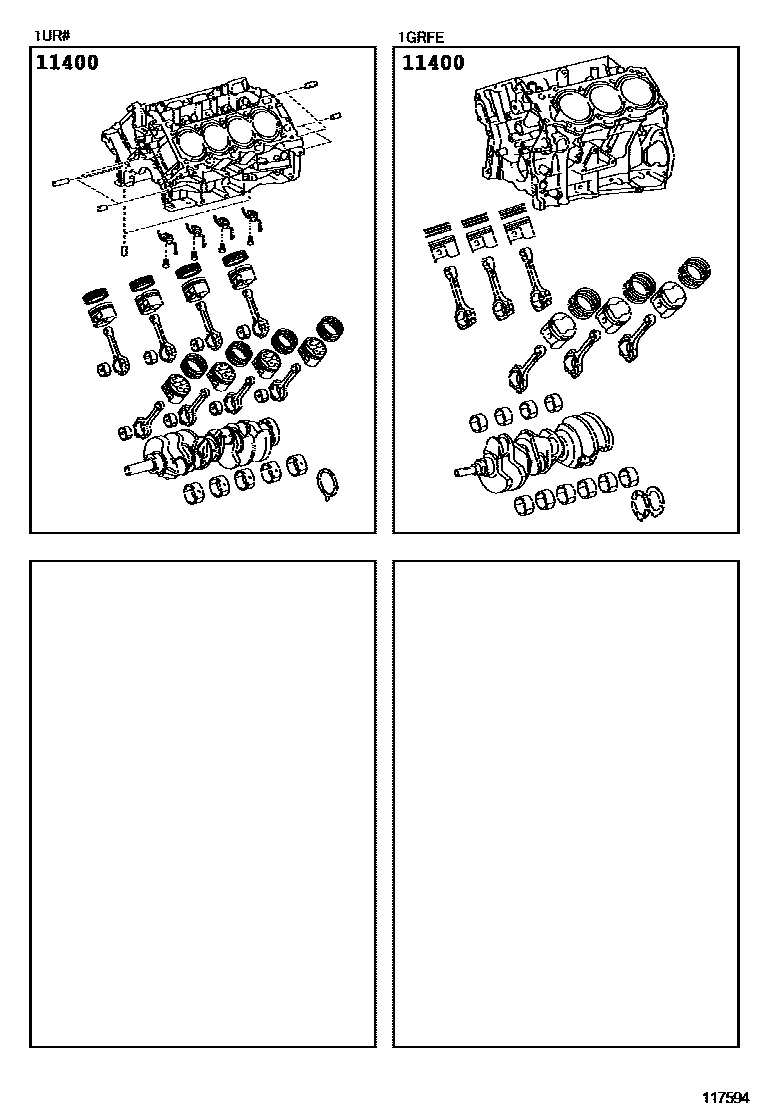

Parts diagram

11400BLOCK ASSY, SHORT

main11400-31280i201206-201309

main11400-38110i200911-201003

main11400-38111i201003-201206

main11400-38120supersedes 11400-38111i201408-201908

main11400-39145i201702-201711

1 parts on this diagram · 1 diagram in section
