STANDARD TOOL

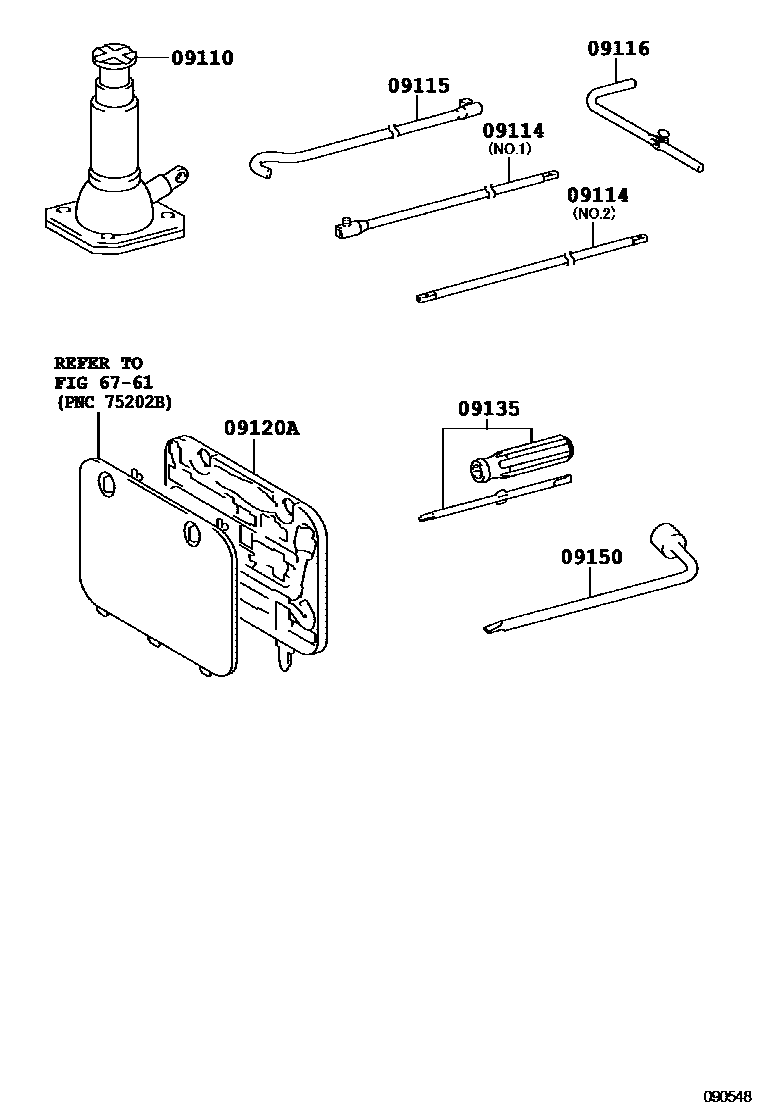

Parts diagram

09110JACK ASSY

main09111-60130i201106-201206

main09111-60131i201603-201711

main09111-60132i202109

main09111-60140i200911-201105

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-35040i200911-201309

NO.2

main09114-35050i201308-201908

NO.1

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110i200911-201206

09116LEVER, JACK HANDLE

main09116-35080i200911-201206

main09116-60020i201709-201711

09120ACASE, TOOL

main09120-60220i200911-201206

09135DRIVER, SCREW

main09135-50060i201203-201308

main99915-10700i200911-201202

09150WRENCH, HUB NUT BOX

main09150-60040i200911-201206

main09150-60050i202208

6761BACK DOOR PANEL & GLASS

→ Go to FIG 67-61

8 parts on this diagram · 1 diagram in section
