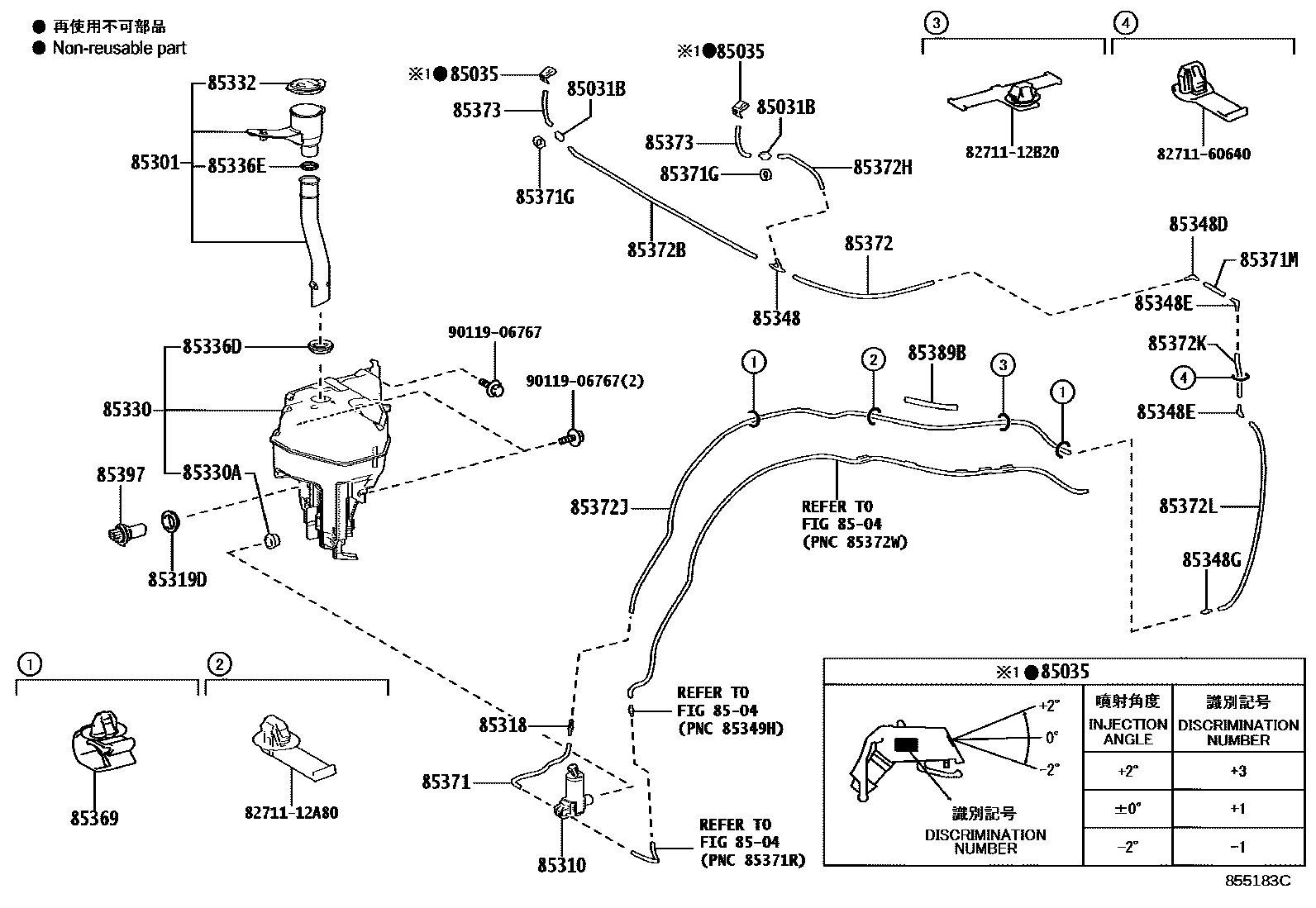

85031BVALVE SUB-ASSY, WASHER

main85321-26020×2i202402

85035NOZZLE SUB-ASSY, WASHER

main85381-28220×2supersedes 85381-60151i202402

ANGLE 0

main85381-28230×2i202402

ANGLE +2

main85381-28240×2i202402

ANGLE -2

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-60120i202402

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47100i202402

85318JOINT, WINDSHIELD WASHER MOTOR

main85349-89122i202402

85319DPACKING, FRONT WASHER

main85319-33230i202402

85330JAR ASSY, WINDSHIELD WASHER

main85355-60420supersedes 85315-60500i202402

"OVERTRAIL" PACKAGE; ARGENTINA SPEC; ARGENTINA SPEC&"OVERTRAIL" PACKAGE; ARGENTINA SPEC&LUXURY+ PACKAGE; BOLIVIA SPEC&"OVERTRAIL" PACKAGE&COLD AREA SPEC; BOLIVIA SPEC&COLD AREA SPEC; BOLIVIA SPEC&LUXURY+ PACKAGE&COLD AREA SPEC; LUXURY+ PACKAGE; PERU SPEC&"OVERTRAIL" PACKAGE&COLD AREA SPEC; PERU SPEC&COLD AREA SPEC; PERU SPEC&LUXURY+ PACKAGE&COLD AREA SPEC

main85315-60500i202411

WITHOUT(COLD AREA SPEC)

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×2i202402

"OVERTRAIL" PACKAGE; ARGENTINA SPEC; ARGENTINA SPEC&"OVERTRAIL" PACKAGE; ARGENTINA SPEC&LUXURY+ PACKAGE; BOLIVIA SPEC&"OVERTRAIL" PACKAGE&COLD AREA SPEC; BOLIVIA SPEC&COLD AREA SPEC; BOLIVIA SPEC&LUXURY+ PACKAGE&COLD AREA SPEC; LUXURY+ PACKAGE; PERU SPEC&"OVERTRAIL" PACKAGE&COLD AREA SPEC; PERU SPEC&COLD AREA SPEC; PERU SPEC&LUXURY+ PACKAGE&COLD AREA SPEC

85332CAP, WINDSHIELD WASHER JAR

main85316-24130i202402

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160×2i202402

"OVERTRAIL" PACKAGE; ARGENTINA SPEC; ARGENTINA SPEC&"OVERTRAIL" PACKAGE; ARGENTINA SPEC&LUXURY+ PACKAGE; BOLIVIA SPEC&"OVERTRAIL" PACKAGE&COLD AREA SPEC; BOLIVIA SPEC&COLD AREA SPEC; BOLIVIA SPEC&LUXURY+ PACKAGE&COLD AREA SPEC; LUXURY+ PACKAGE; PERU SPEC&"OVERTRAIL" PACKAGE&COLD AREA SPEC; PERU SPEC&COLD AREA SPEC; PERU SPEC&LUXURY+ PACKAGE&COLD AREA SPEC

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320i202402

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85378-33410i202402

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200i202402

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200×2i202402

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i202402

85369CLAMP

main82711-16790×2i202402

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i202402

L=1450(*H,L=200); L=1450(*H,L=200),"OVERTRAIL" PACKAGE; L=1450(*H,L=200),ARGENTINA SPEC; L=1450(*H,L=200),ARGENTINA SPEC&"OVERTRAIL" PACKAGE; L=1450(*H,L=200),ARGENTINA SPEC&LUXURY+ PACKAGE; L=1450(*H,L=200),BOLIVIA SPEC&"OVERTRAIL" PACKAGE&COLD AREA SPEC; L=1450(*H,L=200),BOLIVIA SPEC&COLD AREA SPEC; L=1450(*H,L=200),BOLIVIA SPEC&LUXURY+ PACKAGE&COLD AREA SPEC; L=1450(*H,L=200),LUXURY+ PACKAGE; L=1450(*H,L=200),PERU SPEC&"OVERTRAIL" PACKAGE&COLD AREA SPEC; L=1450(*H,L=200),PERU SPEC&COLD AREA SPEC; L=1450(*H,L=200),PERU SPEC&LUXURY+ PACKAGE&COLD AREA SPEC

85371GPROTECTOR, FRONT WASHER

main85389-26080×2i202402

85371MHOSE, WINDSHIELD WASHER (FROM JOINT TO TANK)

main90099-33080i202402

L=1450(*H,L=60)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i202402

L=1450(*H,L=310)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i202402

L=1450(*H,L=610)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
