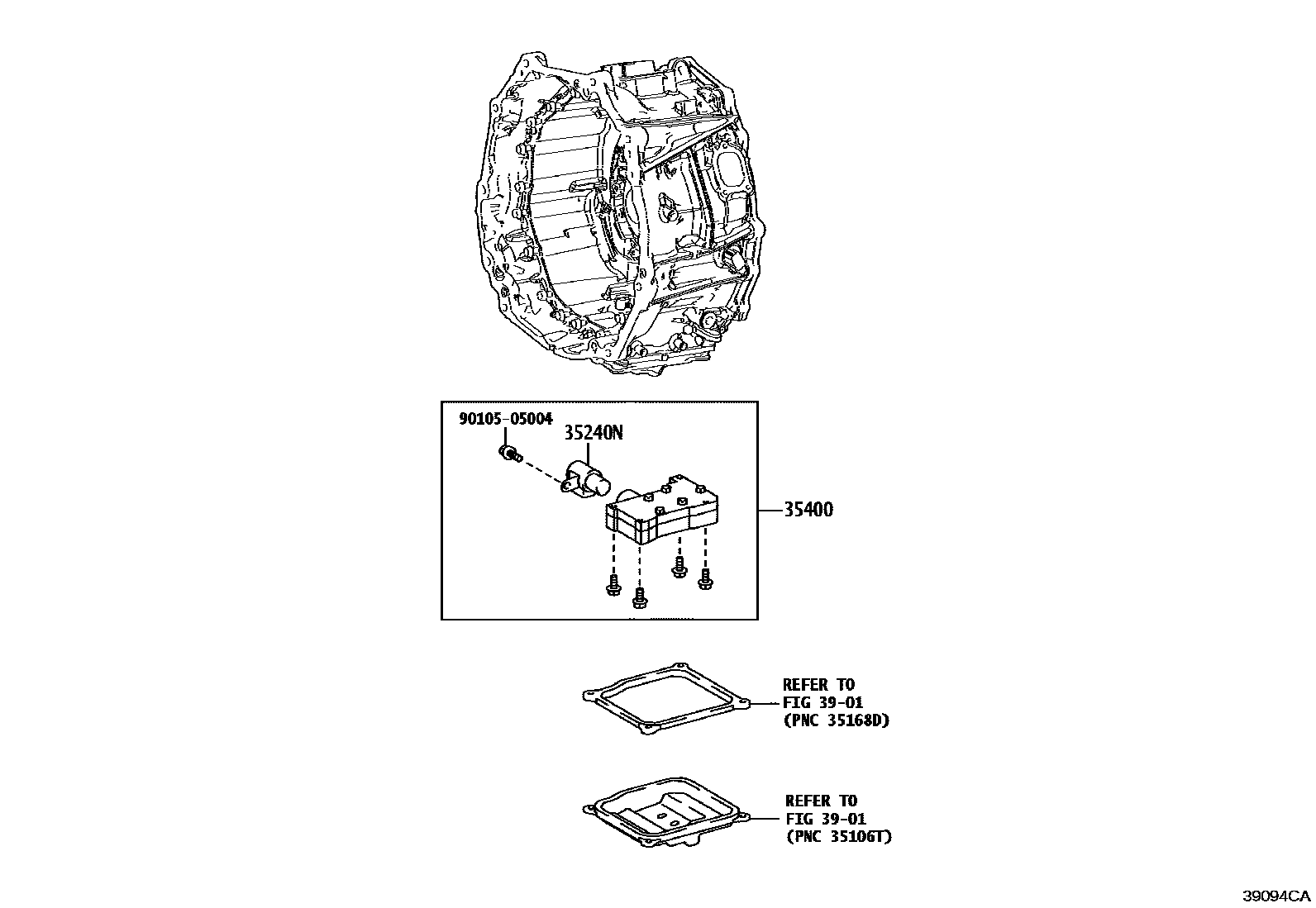

VALVE BODY & OIL STRAINER (HEV OR BEV OR FCEV)

35240NVALVE, SOLENOID(SC1)

main35240-34020iTJH252202403

35400BODY ASSY, TRANSMISSION VALVE

main35400-34090iTJH252202403

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

9010505004

main90105-05004

4 parts on this diagram · 1 diagram in section
