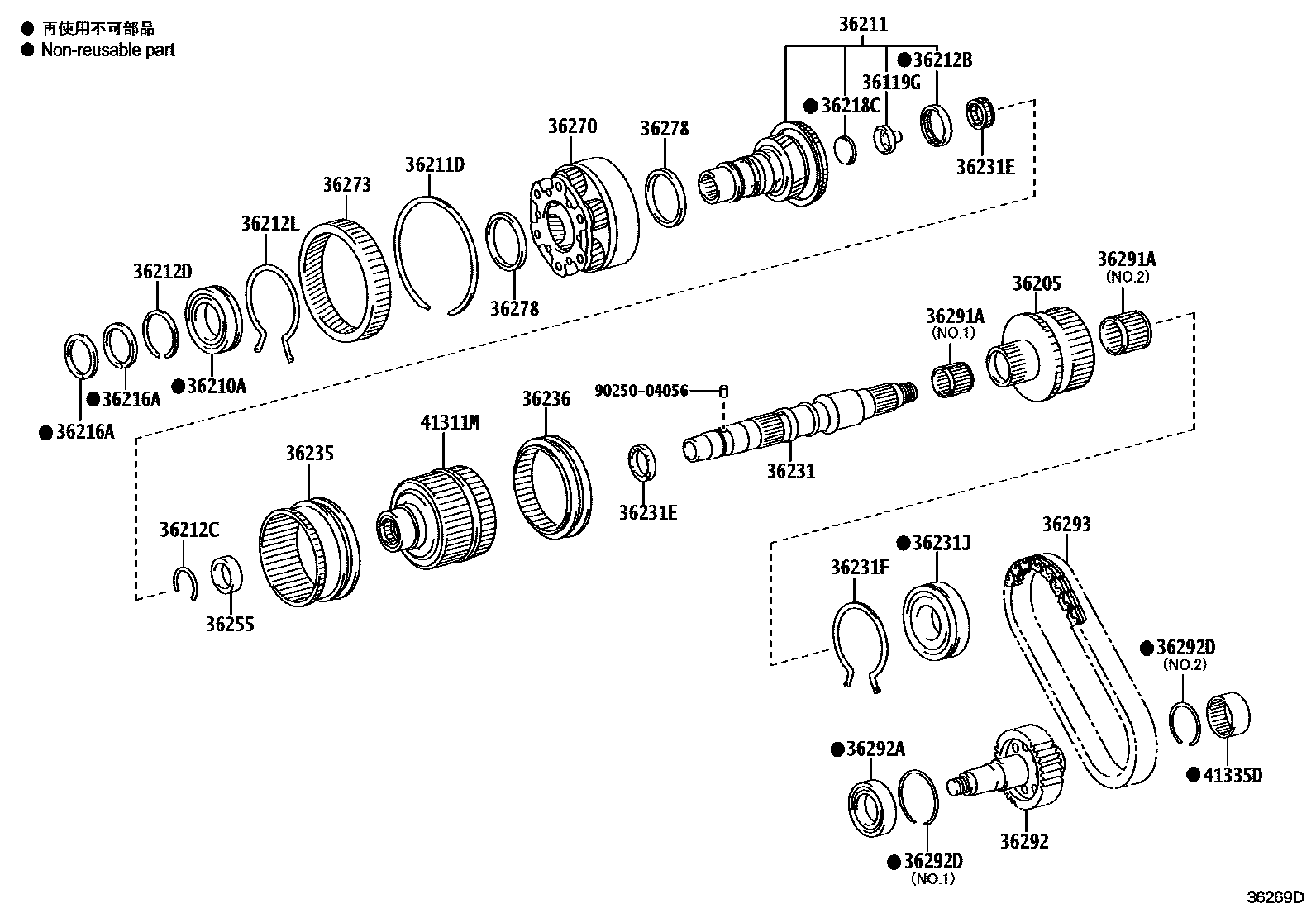

TRANSFER GEAR
36119GRECEIVER, TRANSFER OIL
36211DRING, HOLE SNAP (FOR TRANSFER INPUT SHAFT)
T=2.0
36212BBEARING, NEEDLE ROLLER (FOR TRANSFER INPUT GEAR)
36212CRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)
T=2.47,MARK A
T=2.52,MARK B
T=2.57,MARK C
T=2.62,MARK D
T=2.67,MARK E
T=2.72,MARK F
T=2.77,MARK G
T=2.82,MARK H
T=2.87,MARK J
T=2.92,MARK K
T=2.97,MARK L
T=3.02,MARK M
T=3.07,MARK N
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
T=2.13,MARK K
T=2.18,MARK L
T=2.23,MARK M
T=2.28,MARK N
T=2.33,MARK P
T=2.38,MARK Q
T=2.43,MARK R
T=1.45,MARK 1
T=1.50,MARK 2
T=1.55,MARK 3
T=1.60,MARK 4
T=1.65,MARK 5
36212LRING, SHAFT SNAP
T=2.2
36218CPLUG, TRANSFER INPUT SHAFT
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
NO.1
NO.2
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=1.65
T=2.4
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
T=2.62-2.78
T=0.91-1.09
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
36292DRING SHAFT SNAP(FOR TRANSFER DRIVEN SPROCKET)
T=1.0
T=1.8,MARK B
41335DBEARING (FOR SIDE GEAR SHAFT HOLDER)
9025004056
main90250-04056
29 parts on this diagram · 2 diagrams in section
