ALTERNATOR

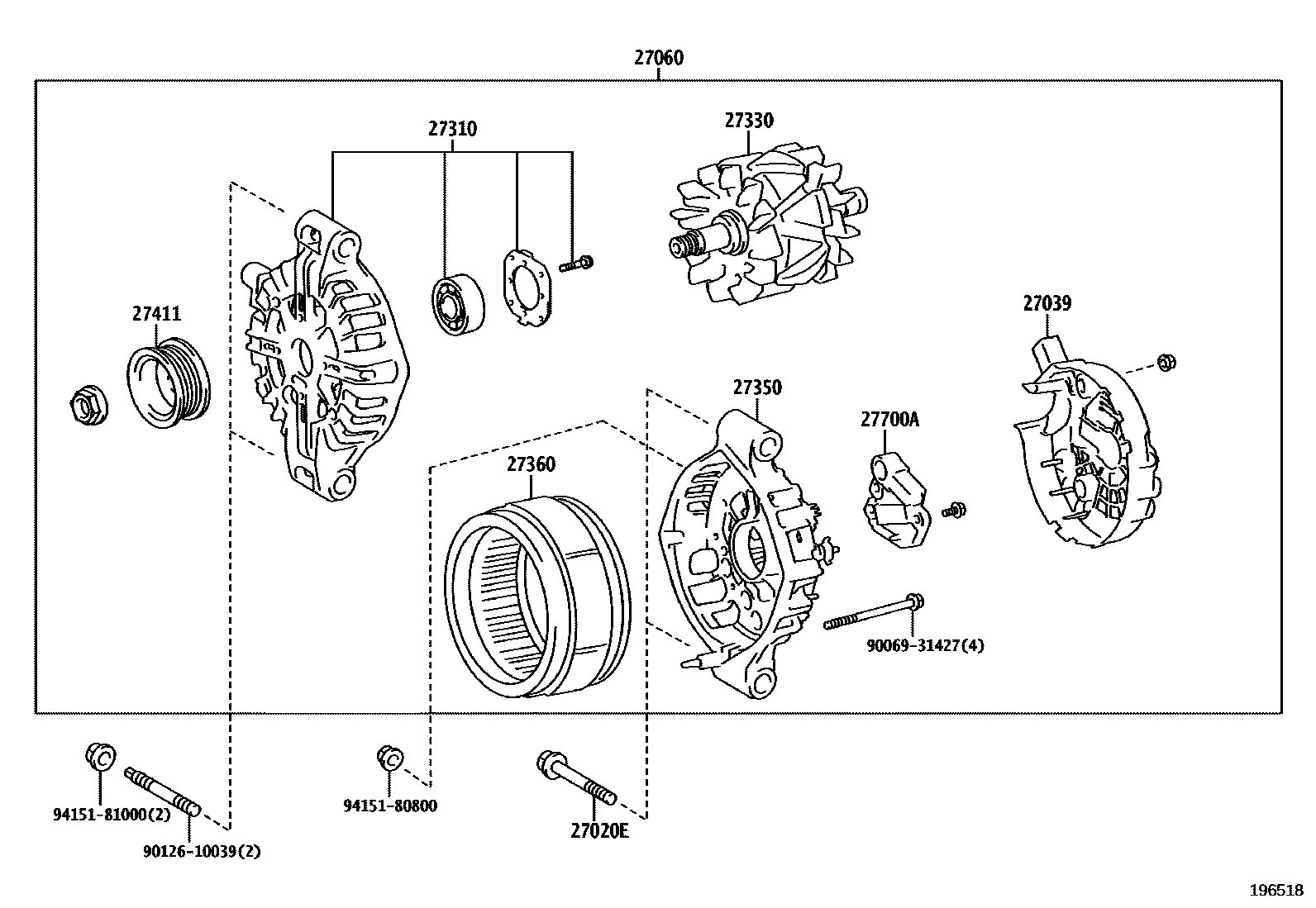

Parts diagram

27020EBOLT(FOR ALTERNATOR)

main91552-81070×2i202402

27039COVER, ALTERNATOR REAR END

main27039-0W030i202402

main27039-38140i202402

"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE

27060ALTERNATOR ASSY, W/REGULATOR

main27060-0W040i202402

12V 180A

main27060-70550i202402

12V 240A,"OVERTRAIL" PACKAGE; 12V 240A,"OVERTRAIL+" PACKAGE

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0W030i202402

main27310-70510i202402

"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE

27330ROTOR ASSY, ALTERNATOR

main27330-0W040i202402

main27330-70510i202402

"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE

27350FRAME ASSY, RECTIFIER END

main27350-0W030i202402

27360COIL ASSY, ALTERNATOR

main27410-0W020i202402

main27360-70510i202402

"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE

27411PULLEY, ALTERNATOR

main27411-0W040i202402

main27411-50190i202402

"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE

27700AREGULATOR ASSY, GENERATOR

main27700-0W030×2i202402

9006931427

main90069-31427

9012610039

main90126-10039

9415180800

main94151-80800

9415181000

main94151-81000

13 parts on this diagram · 2 diagrams in section
