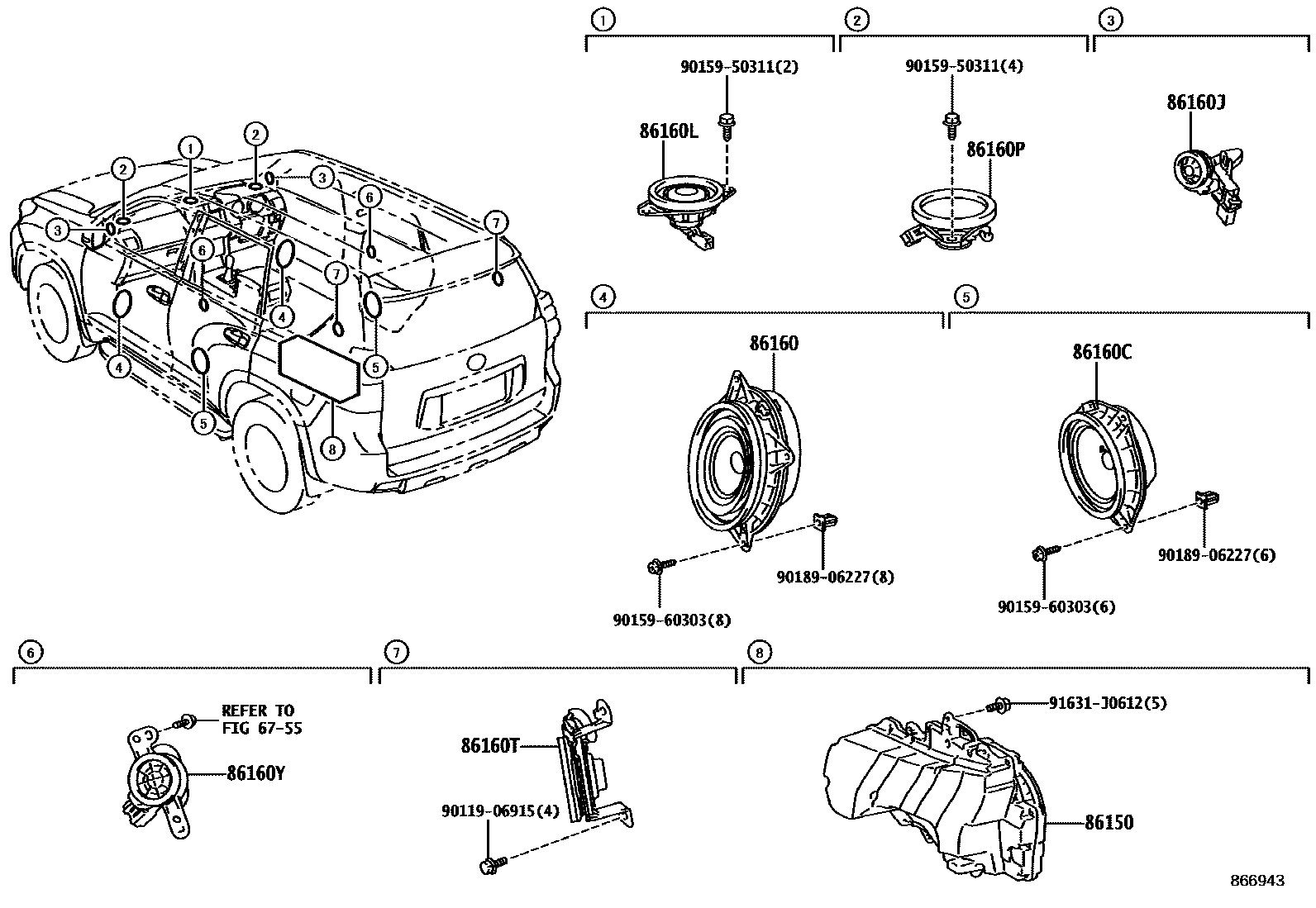

SPEAKER
6755REAR DOOR PANEL & GLASS
86150SPEAKER ASSY, W/BOX, NO.1
main86150-0W240iGRJ150,KDJ150..LHD..ATM..GEN; GRJ150..6FC..GCC;GDJ150,KDJ150..ATM..(ARL,GCC)201708-201801
AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
VX-L PACKAGE
AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
86160SPEAKER ASSY, FRONT NO.1
AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
main86160-0WD10×2iGRJ150,KDJ150..LHD..ATM..GEN; GRJ150..6FC..GCC;GDJ150,KDJ150..ATM..(ARL,GCC)201708-201801
AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; VX-L PACKAGE
86160CSPEAKER SET, REAR
AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER
main86160-0WT90×2iGRJ150,KDJ150..LHD..ATM..GEN; GRJ150..6FC..GCC;GDJ150,KDJ150..ATM..(ARL,GCC)201708-201801
AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; VX-L PACKAGE
86160JSPEAKER ASSY, FRONT NO.3
AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,RH
AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LH
main86160-0WP00iGRJ150,KDJ150..LHD..ATM..GEN; GRJ150..6FC..GCC;GDJ150,KDJ150..ATM..(ARL,GCC)201708-201902
AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,RH; AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,RH
main86160-0WP10iGRJ150,KDJ150..LHD..ATM..GEN; GRJ150..6FC..GCC;GDJ150,KDJ150..ATM..(ARL,GCC)201708-201902
AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LH; AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LH
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,RH; AUDIO(FOR OVERSEAS MARKET)-AVN & 14SPEAKER,RH
main86160-60490iGDJ150,KDJ150..SA; GDJ150..ARL; GRJ150..6F..GEN;GDJ150,TRJ150..GEN;KDJ150,TRJ155..GCC,GEN;GRJ150..6FC..(ARL,GCC,GEN)201708-202312
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,LH; AUDIO(FOR OVERSEAS MARKET)-AVN & 14SPEAKER,LH; AUDIO(FOR OVERSEAS MARKET)-AVN & 9SPEAKER,LH
86160LSPEAKER ASSY, FRONT NO.4
AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
main86160-0WP30iGRJ150,KDJ150..LHD..ATM..GEN; GRJ150..6FC..GCC;GDJ150,KDJ150..ATM..(ARL,GCC)201708-201801
AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
main86160-60530iGDJ150..ARL; GRJ150..6F..GEN;GDJ150,TRJ150..GEN;KDJ150,TRJ155..GCC,GEN;GRJ150..6FC..(ARL,GCC,GEN)201708-202312
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AVN & 9SPEAKER
VX-L PACKAGE
86160PSPEAKER ASSY, FRONT NO.2
AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
main86160-0WN90×2iGRJ150,KDJ150..LHD..ATM..GEN; GRJ150..6FC..GCC;GDJ150,KDJ150..ATM..(ARL,GCC)201708-201801
AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
main86160-60470×2iGDJ150..ARL; GRJ150..6F..GEN;GDJ150,TRJ150..GEN;KDJ150,TRJ155..GCC,GEN;GRJ150..6FC..(ARL,GCC,GEN)201708-202312
AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AVN & 9SPEAKER
VX-L PACKAGE
86160TSPEAKER ASSY, REAR HEADER
AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,RH
AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LH
AUDIO(FOR OVERSEAS MARKET)-AVN & 14SPEAKER,RH
AUDIO(FOR OVERSEAS MARKET)-AVN & 14SPEAKER,LH
main86160-0WP40iGRJ150,KDJ150..LHD..ATM..GEN; GRJ150..6FC..GCC;GDJ150,KDJ150..ATM..(ARL,GCC)201708-201801
AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,RH; AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,RH
main86160-0WP50iGRJ150,KDJ150..LHD..ATM..GEN; GRJ150..6FC..GCC;GDJ150,KDJ150..ATM..(ARL,GCC)201708-201801
AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LH; AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LH
AUDIO(FOR OVERSEAS MARKET)-AVN & 14SPEAKER,RH
VX-L PACKAGE,LH
86160YSPEAKER ASSY, REAR NO.2
AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,RH
AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LH
main86160-0WN60iGRJ150,KDJ150..LHD..ATM..GEN; GRJ150..6FC..GCC;GDJ150,KDJ150..ATM..(ARL,GCC)201708-201902
AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,RH; AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,RH
main86160-0WN70iGRJ150,KDJ150..LHD..ATM..GEN; GRJ150..6FC..GCC;GDJ150,KDJ150..ATM..(ARL,GCC)201708-201902
AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,LH; AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,LH
AUDIO(FOR OVERSEAS MARKET)-AVN & 14SPEAKER,RH
AUDIO(FOR OVERSEAS MARKET)-AVN & 14SPEAKER,LH
9011906915
main90119-06915
9015950311
main90159-50311
9015960303
main90159-60303
9018906227
main90189-06227
91631J0612
main91631-J0612
14 parts on this diagram · 2 diagrams in section
