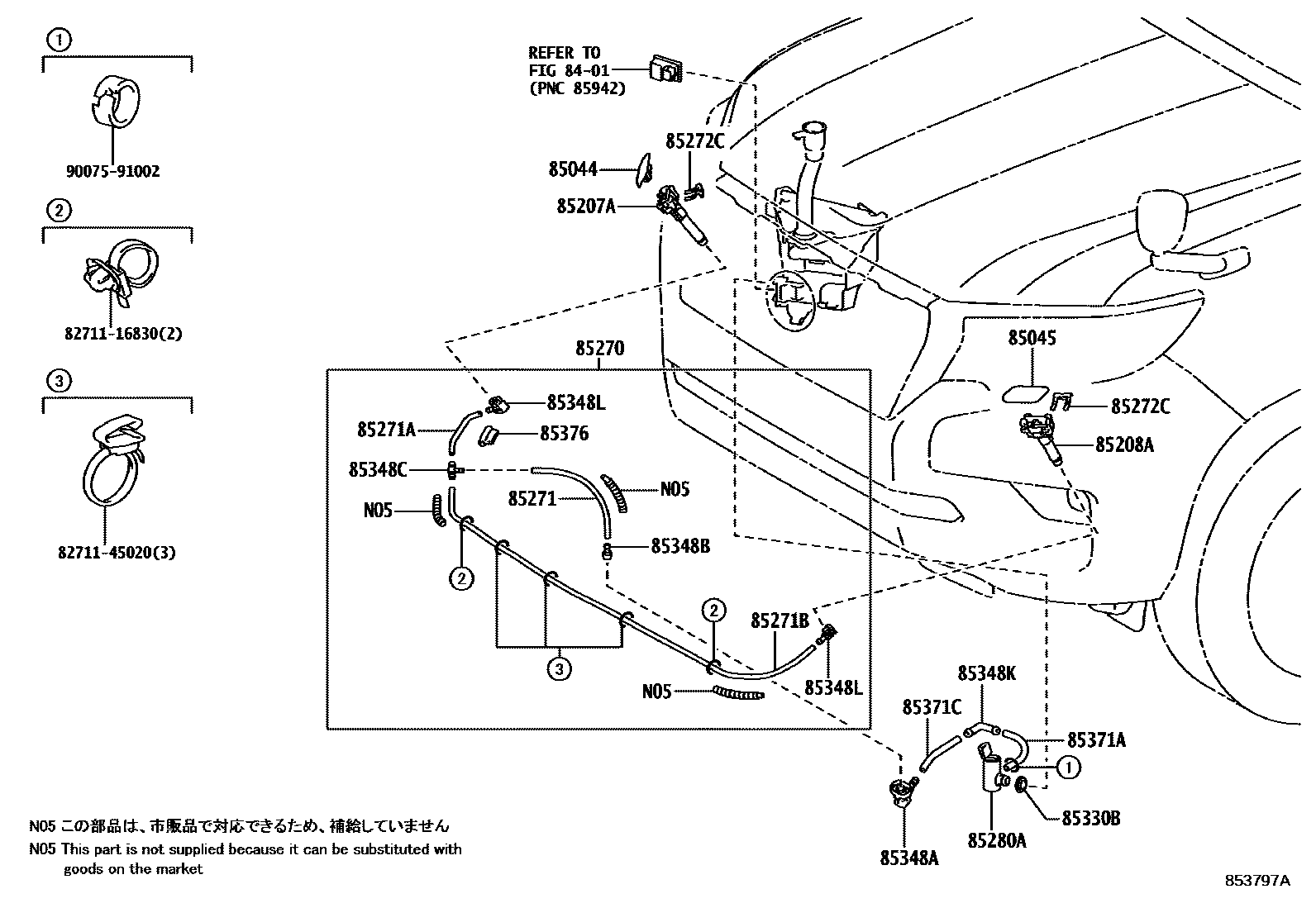

HEADLAMP CLEANER
8401
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
SUPER WHITE 2,040
HEADLAMP- LED(MAT BLACK EDITION),WHITE PEARL CS.,070
HEADLAMP- LED(MAT BLACK EDITION),SILVER ME.,1F7
HEADLAMP- LED(MAT BLACK EDITION),GRAY ME.,1G3
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION),BLACK,202
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB),ATTITUDE BLACK MC.,218
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB),BLACKISH AGEHA GF.,221
RED M.M.,3R3
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION),AVANT-GARDE BRONZE ME.,4V8
HEADLAMP- LED(MAT BLACK EDITION),VINTAGE BROWN PEARL CS.,4X4
TX-L PACKAGE&COLD AREA SPEC,SUPER WHITE 2,040
VX PACKAGE&HEADLAMP-LED,WHITE PEARL CS.,070
HEADLAMP CLEANER-WITH,SILVER ME.,1F7
HEADLAMP CLEANER-WITH,GRAY ME.,1G3
TX-L PACKAGE&COLD AREA SPEC,BLACK,202
GCC SPEC&HEADLAMP-LED & WITH(*AHB),ATTITUDE BLACK MC.,218
TX-L PACKAGE&COLD AREA SPEC,BLACKISH AGEHA GF.,221
GCC SPEC&HEADLAMP-LED & WITH(*AHB),RED M.M.,3R3
TX-L PACKAGE&COLD AREA SPEC,AVANT-GARDE BRONZE ME.,4V8
HEADLAMP CLEANER-WITH,VINTAGE BROWN PEARL CS.,4X4
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
SUPER WHITE 2,040
HEADLAMP- LED(MAT BLACK EDITION),WHITE PEARL CS.,070
HEADLAMP- LED(MAT BLACK EDITION),SILVER ME.,1F7
HEADLAMP- LED(MAT BLACK EDITION),GRAY ME.,1G3
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION),BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED M.M.,3R3
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB),AVANT-GARDE BRONZE ME.,4V8
HEADLAMP- LED(MAT BLACK EDITION),VINTAGE BROWN PEARL CS.,4X4
TX-L PACKAGE&COLD AREA SPEC,SUPER WHITE 2,040
VX PACKAGE&HEADLAMP-LED,WHITE PEARL CS.,070
HEADLAMP CLEANER-WITH,SILVER ME.,1F7
HEADLAMP CLEANER-WITH,GRAY ME.,1G3
TX-L PACKAGE&COLD AREA SPEC,BLACK,202
GCC SPEC&HEADLAMP-LED & WITH(*AHB),ATTITUDE BLACK MC.,218
TX-L PACKAGE&COLD AREA SPEC,BLACKISH AGEHA GF.,221
VX PACKAGE&HEADLAMP-LED,RED M.M.,3R3
TX-L PACKAGE&COLD AREA SPEC,AVANT-GARDE BRONZE ME.,4V8
HEADLAMP CLEANER-WITH,VINTAGE BROWN PEARL CS.,4X4
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)
GCC SPEC&HEADLAMP-LED & WITH(*AHB)
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)
GCC SPEC&HEADLAMP-LED & WITH(*AHB)
85270CLEANER ASSY, HEADLAMP
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)
GCC SPEC&HEADLAMP-LED & WITH(*AHB)
GCC SPEC&HEADLAMP-LED & WITH(*AHB)
85271HOSE, HEADLAMP CLEANER, NO.1
L=300,VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION)
85271AHOSE, HEADLAMP CLEANER, NO.2
L=140,VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)
L=35,HEADLAMP-LED
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1500
L=1450,SAUDI ARABIA SPEC&HEADLAMP-LED & WITH(*AHB)
85272CCLAMP, HEADLAMP CLEANER, NO.3
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)
85330BBUSH, HEADLAMP CLEANER WASHER JAR
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=80,VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)
85371CHOSE, HEADLAMP CLEANER, NO.1
L=100,HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
8271145020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-45020
9007591002
main90075-91002
23 parts on this diagram · 3 diagrams in section
