WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
ANGLE +2
8504REAR WASHER
8505HEADLAMP CLEANER
85301INLET SUB-ASSY, WASHER
MARK=E11:REF.ILLUST
MARK=E13:REF.ILLUST
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85317WIRING ASSY, WASHER
TX-L PACKAGE&COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION); VX PACKAGE&COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION)
85319AHOSE, INLET
85319DPACKING, FRONT WASHER
TX-L PACKAGE&COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION); VX PACKAGE&COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION)
85319EINLET WASHER
85330JAR ASSY, WINDSHIELD WASHER
main85355-60350iGDJ150,GRJ150,TRJ150..LHD..6FC..GEN; GDJ150,GRJ150..6FC..GCC; GDJ150..RHD..6FC..(ARL,GEN); GRJ150..6FC..GEN; GRJ150..SA; TRJ150..6FC..GCC;GDJ150..RHD..6FC..GEN202208-202312
HEADLAMP- LED(MAT BLACK EDITION); HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH; HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH; VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION); VX PACKAGE&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)
TX-L PACKAGE&COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION); VX PACKAGE&COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION)
COLD AREA SPEC
main85355-60290iGRJ150,KDJ150..ATM..GCC; GRJ150,KDJ150..LHD..ATM..GEN; GRJ150..6F;TRJ150..GCC;LJ150,TRJ155;GDJ150,GRJ150,KDJ150..RHD; KDJ150..LHD..GEN;GRJ150,TRJ150..(5F,6FC)..GEN201708-202008
GCC SPEC&HEADLAMP-LED & WITH(*AHB); HEADLAMP CLEANER-WITH; HEADLAMP-LED; SAUDI ARABIA SPEC&HEADLAMP-LED & WITH(*AHB); VX PACKAGE&HEADLAMP-LED; VX-L PACKAGE&HEADLAMP-LED
main85355-60300iGRJ150,KDJ150..LHD..ATM..GEN; KDJ150..LHD..GEN;GRJ150,TRJ150..(5F,6FC)..GEN201708-202008
TX-L PACKAGE&COLD AREA SPEC; VX PACKAGE&COLD AREA SPEC&HEADLAMP-LED; VX-L PACKAGE&COLD AREA SPEC&HEADLAMP-LED
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
MARK=E11:REF.ILLUST
MARK=E13:REF.ILLUST
85336DPACKING, WINDSHIELD WASHER JAR
85336GGAGE, WATER LEVEL
85336JPROTECTOR, WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85355VALVE, WINDSHIELD WASHER HOSE
85369CLAMP
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33080iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#; GDJ150,GRJ150,KDJ150..ATM..GCC; GDJ150,GRJ150,KDJ150..LHD..ATM..GEN; GDJ150,KDJ150..LHD..ATM..GEN; GRJ150..6F;GRJ150..ARL;TRJ150..GCC;LJ150,TRJ155;GDJ150,KDJ150..RHD; GRJ150..6FC..GEN;GDJ150,KDJ150,TRJ150..LHD..GEN; KDJ150..LHD..GEN;GDJ150,GRJ150,TRJ150..LHD..6FC..GEN201708-202312
L=1450(*H,L=160); L=1450(*H,L=160),COLD AREA SPEC; L=1450(*H,L=160),GCC SPEC&HEADLAMP-LED & WITH(*AHB); L=1450(*H,L=160),HEADLAMP CLEANER-WITH; L=1450(*H,L=160),HEADLAMP-LED; L=1450(*H,L=160),SAUDI ARABIA SPEC&HEADLAMP-LED & WITH(*AHB); L=1450(*H,L=160),TX-L PACKAGE&COLD AREA SPEC; L=1450(*H,L=160),VX PACKAGE&COLD AREA SPEC&HEADLAMP-LED; L=1450(*H,L=160),VX PACKAGE&HEADLAMP-LED; L=1450(*H,L=160),VX-L PACKAGE&COLD AREA SPEC&HEADLAMP-LED; L=1450(*H,L=160),VX-L PACKAGE&HEADLAMP-LED
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=1130)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=90)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=40)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=930)
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=1450(*H,L=470)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=300)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
85387BCLAMP, WASHER, NO.3
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
85397SWITCH ASSY,LEVEL WARNING
TX-L PACKAGE&COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION); VX PACKAGE&COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION)
9009905271
main90099-05271
9011906767
main90119-06767

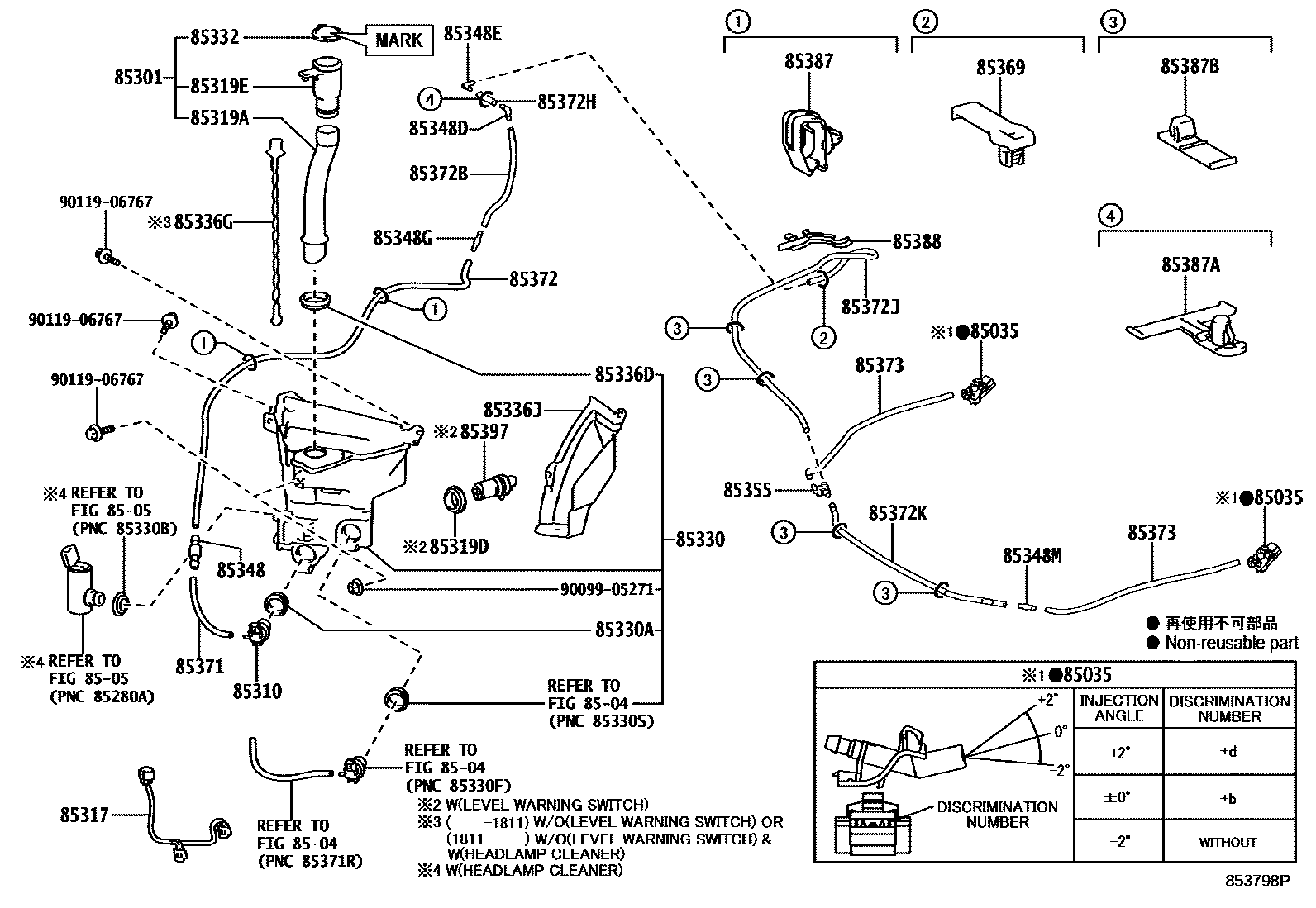

36 parts on this diagram · 1 diagram in section
