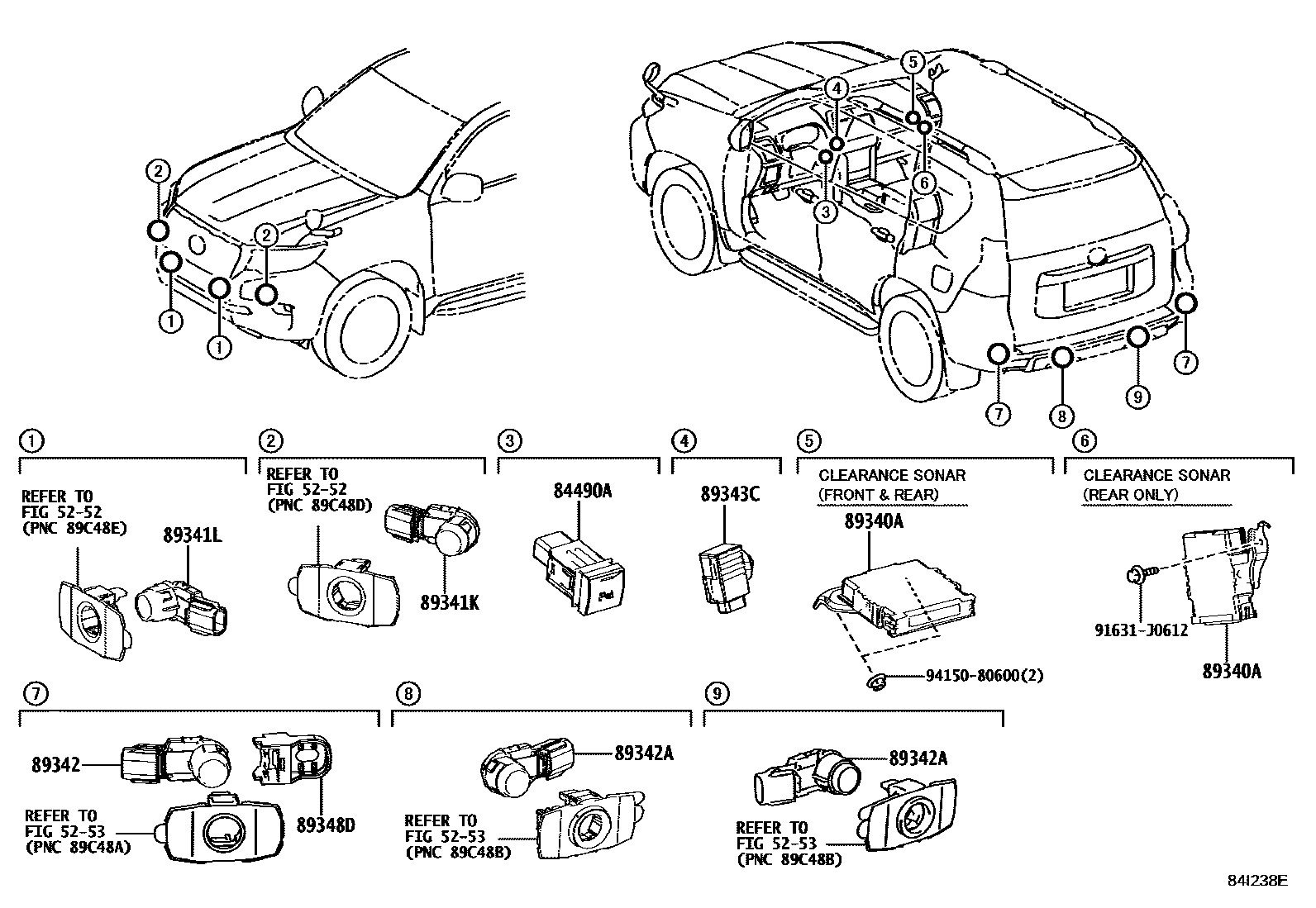

CLEARANCE & BACK SONAR

5252

5253

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-60050i202208-202312

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-60310i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main89340-60320i202208-202312

VX-E PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY)

main89340-60200i201708-202008

AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main89340-60210i201708-202008

CLEARANCE & BACK SONAR-WITH(REAR ONLY)

main89340-60220i201708-202312

CLEARANCE & BACK SONAR-WITH(REAR ONLY)

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-60060-A1×2i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040

main89341-60060-A2×2i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,070

main89341-60060-B4×2i202208-202312

SILVER ME.,1F7

main89341-60060-B6×2i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3

main89341-60060-C0×2i202208-202312

BLACK,202

main89341-60060-C5×2i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ATTITUDE BLACK MC.,218

main89341-60060-C7×2i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACKISH AGEHA GF.,221

main89341-60060-D0×2i202208-202312

RED M.M.,3R3

main89341-60060-E6×2i202208-202312

AVANT-GARDE BRONZE ME.,4V8

main89341-60060-E7×2i202208-202312

VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),VINTAGE BROWN PEARL CS.,4X4

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-60060-A1×2i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040

main89341-60060-A2×2i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,070

main89341-60060-B4×2i202208-202312

SILVER ME.,1F7

main89341-60060-B6×2i202208-202312

GRAY ME.,1G3

main89341-60060-C0×2i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202

main89341-60060-C5×2i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ATTITUDE BLACK MC.,218

main89341-60060-C7×2i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACKISH AGEHA GF.,221

main89341-60060-D0×2i202208-202312

RED M.M.,3R3

main89341-60060-E6×2i202208-202312

VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),AVANT-GARDE BRONZE ME.,4V8

main89341-60060-E7×2i202208-202312

VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),VINTAGE BROWN PEARL CS.,4X4

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-60060-A1×2i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040

main89341-60060-A2×2i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,070

main89341-60060-B4×2i202208-202312

SILVER ME.,1F7

main89341-60060-B6×2i202208-202312

GRAY ME.,1G3

main89341-60060-C0×2i202208-202312

BLACK,202

main89341-60060-C5×2i202208-202312

VX-E PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),ATTITUDE BLACK MC.,218

main89341-60060-C7×2i202208-202312

VX-E PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),BLACKISH AGEHA GF.,221

main89341-60060-D0×2i202208-202312

VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RED M.M.,3R3

main89341-60060-E6×2i202208-202312

AVANT-GARDE BRONZE ME.,4V8

main89341-60060-E7×2i202208-202312

VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),VINTAGE BROWN PEARL CS.,4X4

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-60060-A1×2i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040

main89341-60060-A2×2i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,070

main89341-60060-B4×2i202208-202312

SILVER ME.,1F7

main89341-60060-B6×2i202208-202312

GRAY ME.,1G3

main89341-60060-C0×2i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202

main89341-60060-C5×2i202208-202312

VX-E PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),ATTITUDE BLACK MC.,218

main89341-60060-C7×2i202208-202312

VX-E PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),BLACKISH AGEHA GF.,221

main89341-60060-D0×2i202208-202312

VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RED M.M.,3R3

main89341-60060-E6×2i202208-202312

AVANT-GARDE BRONZE ME.,4V8

main89341-60060-E7×2i202208-202312

VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR),VINTAGE BROWN PEARL CS.,4X4

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

89348DCLIP, ULTRASONIC SENSOR

main89348-33190×2i202208-202312

VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

91631J0612

main91631-J0612

9415080600

main94150-80600

12 parts on this diagram · 2 diagrams in section
