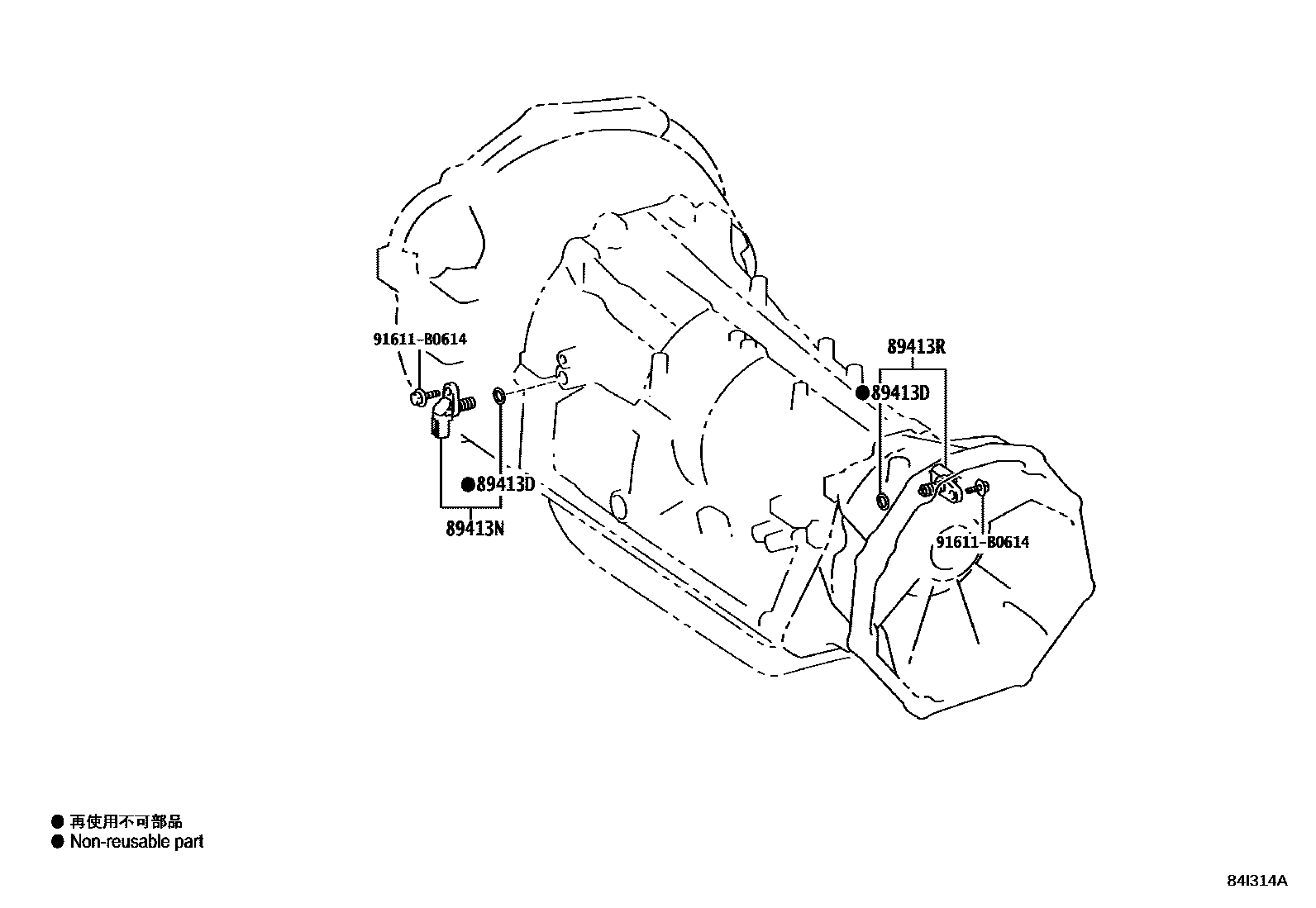

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1A750F 0002 1AC60F

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-0C010iKDJ150..5FC201708-201807

(L)

main89413-0C011iKDJ150..5FC201808-202007

(L)

main89413-12020iGDJ150,GRJ150,TRJ15#..6FC201708-202312

main89413-32010iKDJ150..5FC201708-201807

(J)

main89413-32011iKDJ150..5FC201808-202007

(J)

89413RSENSOR, TRANSMISSION REVOLUTION (SP2)

main89413-0C010iKDJ150..5FC201708-201807

(L)

main89413-0C011iKDJ150..5FC201808-202007

(L)

main89413-12020iGDJ150,GRJ150,TRJ15#..6FC201708-202312

main89413-32010iKDJ150..5FC201708-201807

(J)

main89413-32011iKDJ150..5FC201808-202007

(J)

91611B0614

main91611-B0614

4 parts on this diagram · 2 diagrams in section
