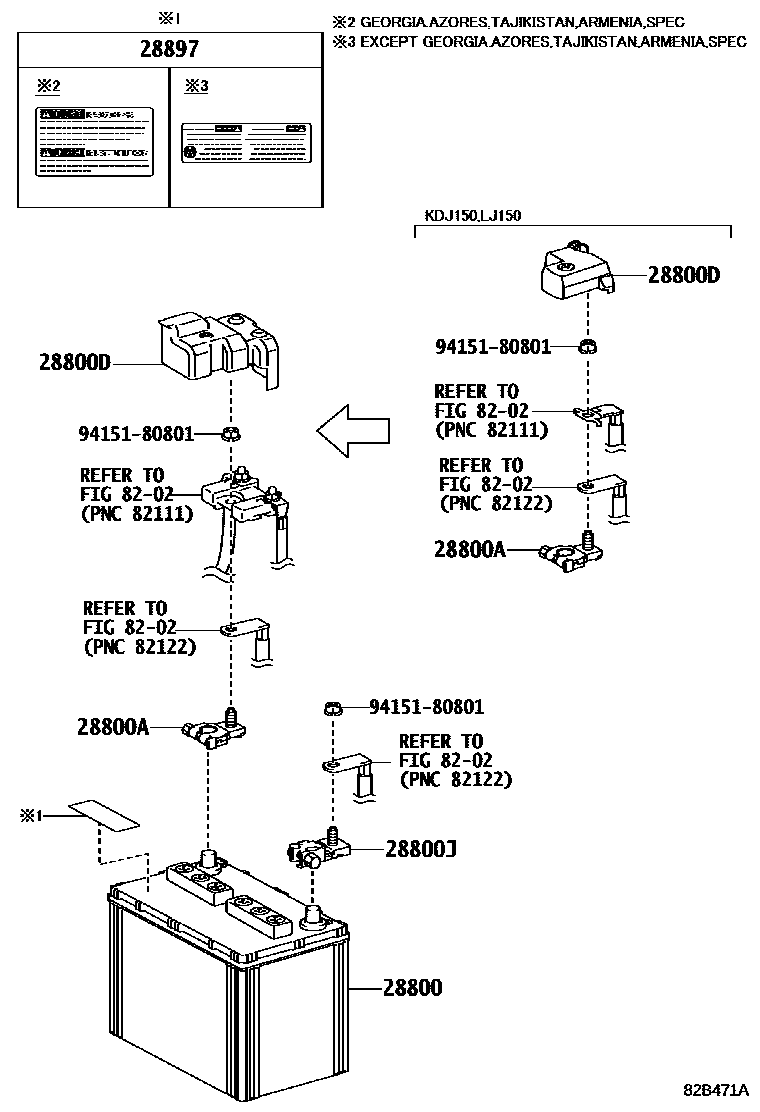

BATTERY & BATTERY CABLE

0001 11-BATTERY 0002 12-BATTERY

28800BATTERY

main28800-42041i2TRFE..TRJ15#201708-202206

55D23L

sub28800-31260

main28800-54020i2TRFE..TRJ150..GEN201708-202206

80D26L,COLD AREA SPEC

main28800-66013i1KDFTV,5LE..KDJ150,LJ150..5F,5FC201708-202305

105D31L

main28800-66014i5LE..LJ150202306-202312

105D31L

sub28800-66015

main28800-67102i1GDFTV,1KDFTV..GDJ150,KDJ150..6F,6FC201708-202206

85D26L

main28800-67103i1GDFTV..GDJ150..LHD..GEN202207-202305

85D26L,COLD AREA SPEC,MAIN

main28800-67104i1GDFTV..GDJ150202306-202312

85D26L,MAIN

sub28800-67105

main28800-76081i2TRFE..TRJ150..GEN202207-202312

80D26L,COLD AREA SPEC

sub28800-76082

main28800-76091i2TRFE..TRJ15#202207-202312

55D23L

main28800-67123i1KDFTV..KDJ150..LHD..GEN201708-202007

105D31R,COLD AREA SPEC,SUB

sub28800-67124

main28800-67131i1GDFTV..GDJ150..LHD..GEN202008-202305

85D26R,COLD AREA SPEC,SUB

main28800-67132i1GDFTV..GDJ150..LHD..GEN202306-202312

85D26R,COLD AREA SPEC,SUB

28800ATERMINAL, BATTERY POSITIVE

main90982-05069i1G#,1KDFTV,5LE,2TRFE..GDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-60041i1G#,2TRFE..GDJ150,GRJ150,TRJ15#201708-202008

main82621-60070i1G#,2TRFE..GDJ150,GRJ150,TRJ15#202008-202312

main82821-60270i1KDFTV,5LE..KDJ150,LJ150201708-202312

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1G#,1KDFTV,5LE,2TRFE..GDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

28897PLATE, BATTERY CAUTION

main28897-36030i1G#,1KDFTV,2TRFE..GDJ150,GRJ150,KDJ150,TRJ15#..GCC201708-202312

EGYPT SPEC

main28897-31040×2i1GDFTV,1KDFTV..GDJ150,KDJ150..LHD..ATM..GEN201708-202011

GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC

main28897-38070i2TRFE..TRJ150..GEN202012-202312

GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC

8202

9415180801

main94151-80801

7 parts on this diagram · 2 diagrams in section
