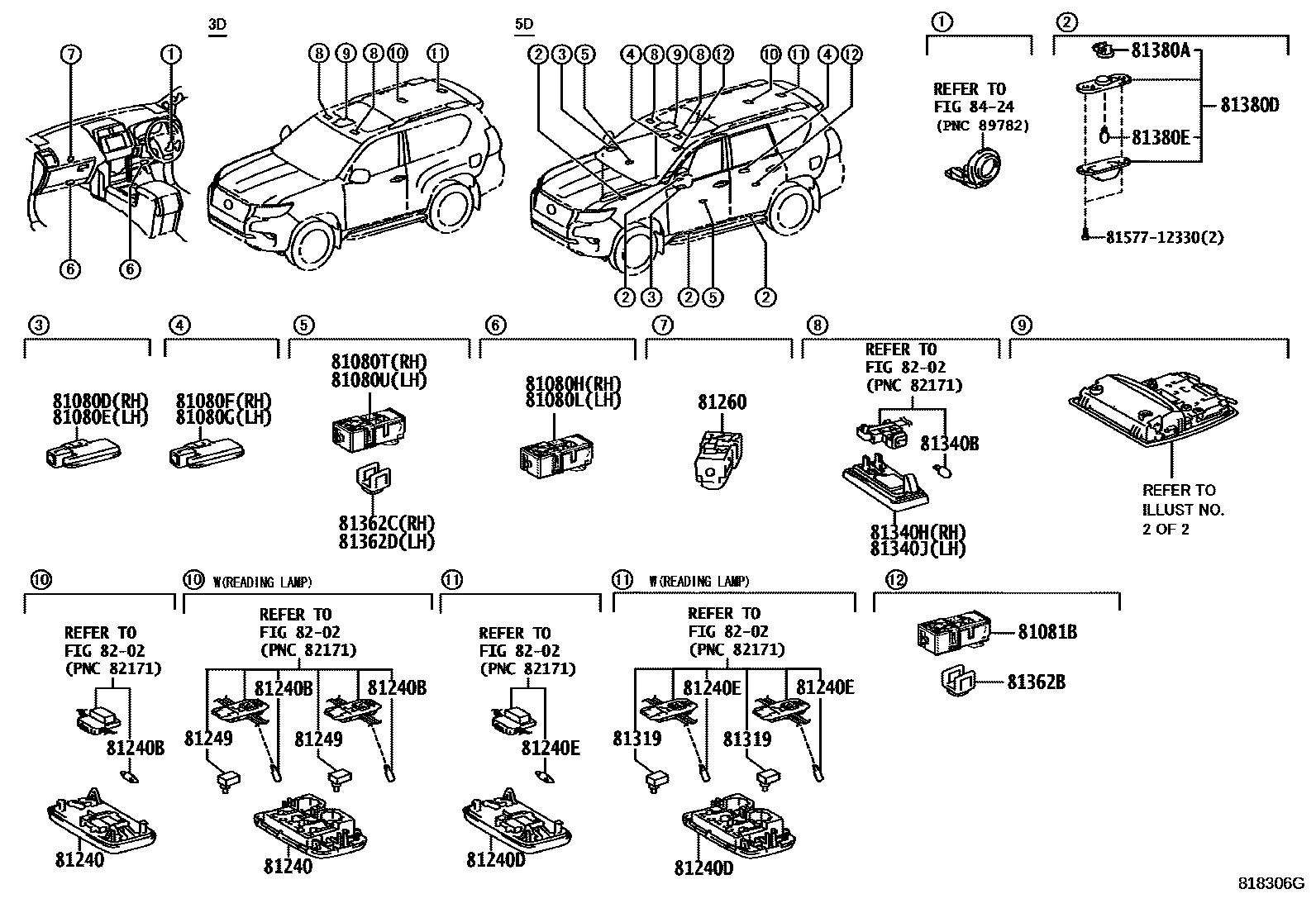

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
VX PACKAGE&*LES & WITHOUT(AVS)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080TLAMP ASSY, INTERIOR ILLUMINATION, NO.2 RH
81080ULAMP ASSY, INTERIOR ILLUMINATION, NO.2 LH
81081BLAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.3
81240LAMP ASSY, ROOM, NO.1
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM40
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
VX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,LT.GRAY,TRIM2#
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W
12V 5W,VX-L PACKAGE
81240DLAMP ASSY, ROOM, NO.2
main81240-12100-B0iTRJ155;GRJ150..ARL;GDJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201907-202312
LT.GRAY,TRIM2#
main81240-12100-E0iTRJ155;GRJ150..ARL;GDJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201907-202312
NEUTRAL BEIGE,TRIM40
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
81240EBULB, ROOM LAMP, NO.2
12V 8W
12V 5W
81249SWITCH, ROOM LAMP
VX PACKAGE
81260LAMP ASSY, GLOVE BOX
81319SWITCH, REAR ROOM LAMP
81340BBULB (FOR VANITY LAMP)
12V 8W
81340HLAMP ASSY, VANITY, RH
81340JLAMP ASSY, VANITY, LH
81362BLENS, INTERIOR ILLUMINATION LAMP
81362CLENS, INTERIOR ILLUMINATION LAMP, RH
81362DLENS, INTERIOR ILLUMINATION LAMP, LH
81380ASOCKET, PLUG
81380DLAMP ASSY, STEP
81380EBULB (FOR STEP LAMP)
8202
8424
8157712330
main81577-12330
28 parts on this diagram · 2 diagrams in section
