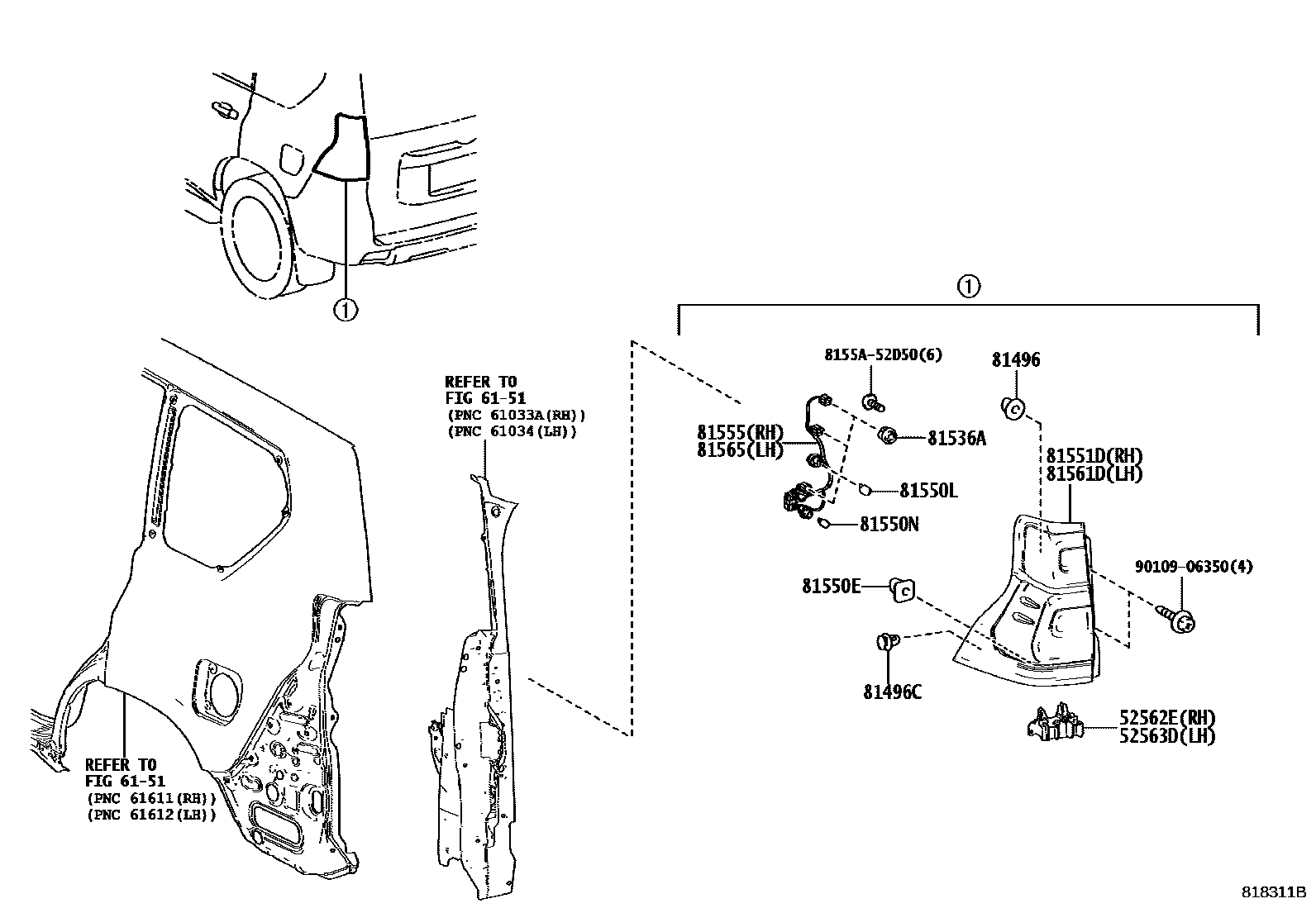

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-60110i201708-202312

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-60110i201708-202312

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2i201708-202312

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010×2i201708-202312

81536ALED, REAR COMBINATION LAMP

main81536-60C30×6i201708-202312

81550ECLIP(FOR REAR COMBINATION LAMP)

main76817-26040×2i201708-202312

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2i201708-202312

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2i201708-202312

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-60C30i201708-202312

main81551-WQ010i202208-202312

GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&VX PACKAGE&*LES & WITHOUT(AVS)&MAT BLACK EDITION

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-60C30i201708-202312

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-60C30i201708-202312

main81561-WQ010i202208-202312

GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&VX PACKAGE&*LES & WITHOUT(AVS)&MAT BLACK EDITION

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-60C30i201708-202312

8155A52D50

9010906350

15 parts on this diagram · 1 diagram in section
