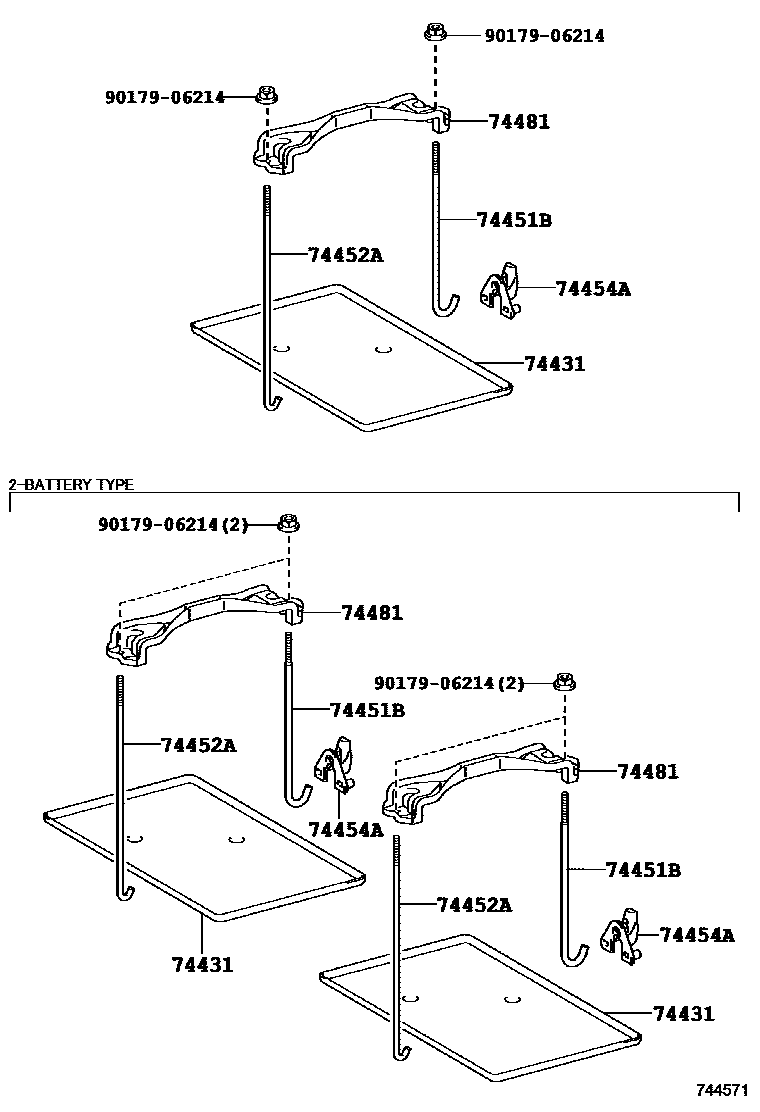

BATTERY CARRIER

74431TRAY, BATTERY

main74431-35030iTRJ15#201708-202312

main74431-35040iKDJ150,LJ150..5F,5FC201708-202312

main74431-52040iGDJ150,GRJ150,KDJ150..6F,6FC; TRJ150..GEN201708-202312

COLD AREA SPEC

74451BBOLT, BATTERY CLAMP

main74451-35090iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#; GDJ150,KDJ150..LHD..GEN201708-202312

COLD AREA SPEC

74452ABOLT, BATTERY CLAMP, NO.2

main74451-52071iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#; GDJ150,KDJ150..LHD..GEN201708-202312

COLD AREA SPEC

74454ASUPPORT, BATTERY SET BOLT

main74454-60040iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#; GDJ150,KDJ150..LHD..GEN201708-202312

COLD AREA SPEC

74481CLAMP, BATTERY HOLD DOWN

main74481-26020iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#; GDJ150,KDJ150..LHD..GEN201708-202312

COLD AREA SPEC

9017906214

main90179-06214

6 parts on this diagram · 1 diagram in section
