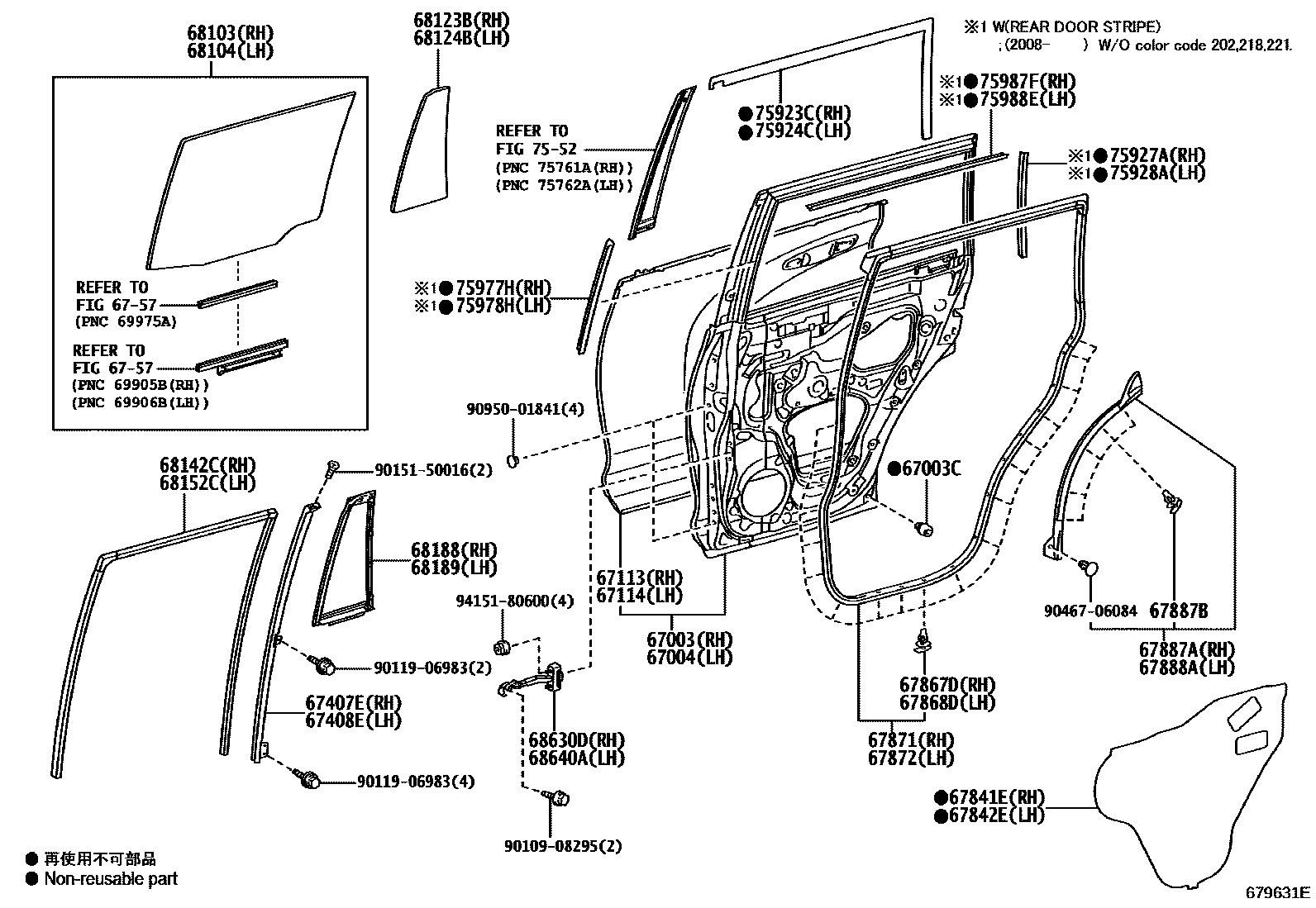

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
6757REAR DOOR WINDOW REGULATOR & HINGE
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67887BCLIP(FOR REAR DOOR WEATHERSTRIP)
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
main68103-60390iGDJ150..6FC..ARL; GDJ150..ARL; GRJ150..ARL,GEN,SA;GDJ150,KDJ150,LJ150,TRJ150..GEN,SA201708-202312
REAR QUARTER GLASS-PRIVACY(DARK GRAY); TX-L PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY); VX PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY); VX-L PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY)
68104GLASS SUB-ASSY, REAR DOOR, LH
main68104-60390iGDJ150..6FC..ARL; GDJ150..ARL; GRJ150..ARL,GEN,SA;GDJ150,KDJ150,LJ150,TRJ150..GEN,SA201708-202312
REAR QUARTER GLASS-PRIVACY(DARK GRAY); TX-L PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY); VX PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY); VX-L PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY)
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
main68123-60350iGDJ150..6FC..ARL; GDJ150..ARL; GRJ150..ARL,GEN,SA;GDJ150,KDJ150,LJ150,TRJ150..GEN,SA201708-202312
REAR QUARTER GLASS-PRIVACY(DARK GRAY); TX-L PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY); VX PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY); VX-L PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY)
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
main68124-60350iGDJ150..6FC..ARL; GDJ150..ARL; GRJ150..ARL,GEN,SA;GDJ150,KDJ150,LJ150,TRJ150..GEN,SA201708-202312
REAR QUARTER GLASS-PRIVACY(DARK GRAY); TX-L PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY); VX PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY); VX-L PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY)
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7552MOULDING
75923CTAPE, BLACK OUT, NO.2 RH
75924CTAPE, BLACK OUT, NO.2 LH
75927ATAPE, BLACK OUT, NO.4 RH
main75927-60040iGRJ150..6FC..GEN;GDJ150,KDJ150..ATM..(ARL,GEN,SA); GRJ150..ARL,GCC,SA; GRJ150..GEN;GDJ150,KDJ150,LJ150,TRJ150; GRJ150..GEN;KDJ150..GCC,GEN;GDJ150,TRJ150..(5F,6FC)..(ARL,GEN); KDJ150,TRJ150..GCC201708-202008
TX-L PACKAGE; VX PACKAGE; VX-E PACKAGE; VX-L PACKAGE
75928ATAPE, BLACK OUT, LH
main75928-60040iGDJ150,TRJ150..6FC..GCC; GDJ150..RHD..6F;GRJ150..6FC..GEN;GDJ150,TRJ150..6FC..(ARL,GEN); GRJ150..6FC..GEN;GDJ150..6FC..(ARL,GEN,SA); GRJ150..ARL,GCC,SA; GRJ150..GEN;GDJ150,LJ150,TRJ150202008-202312
0 OR 1PIECE,REF.ILL.; TX-L PACKAGE,0 OR 1PIECE,REF.ILL.; VX PACKAGE,0 OR 1PIECE,REF.ILL.; VX-E PACKAGE,0 OR 1PIECE,REF.ILL.; VX-L PACKAGE,0 OR 1PIECE,REF.ILL.
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
main75977-60180iGRJ150..6FC..GEN;GDJ150,KDJ150..ATM..(ARL,GEN,SA); GRJ150..ARL,GCC,SA; GRJ150..GEN;GDJ150,KDJ150,LJ150,TRJ150; GRJ150..GEN;KDJ150..GCC,GEN;GDJ150,TRJ150..(5F,6FC)..(ARL,GEN); KDJ150,TRJ150..GCC201708-202008
TX-L PACKAGE; VX PACKAGE; VX-E PACKAGE; VX-L PACKAGE
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
main75978-60180iGRJ150..6FC..GEN;GDJ150,KDJ150..ATM..(ARL,GEN,SA); GRJ150..ARL,GCC,SA; GRJ150..GEN;GDJ150,KDJ150,LJ150,TRJ150; GRJ150..GEN;KDJ150..GCC,GEN;GDJ150,TRJ150..(5F,6FC)..(ARL,GEN); KDJ150,TRJ150..GCC201708-202008
TX-L PACKAGE; VX PACKAGE; VX-E PACKAGE; VX-L PACKAGE
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
main75987-60580iGDJ150,TRJ150..6FC..GCC; GDJ150..RHD..6F;GRJ150..6FC..GEN;GDJ150,TRJ150..6FC..(ARL,GEN); GRJ150..6FC..GEN;GDJ150..6FC..(ARL,GEN,SA); GRJ150..ARL,GCC,SA; GRJ150..GEN;GDJ150,LJ150,TRJ150202008-202312
0 OR 1PIECE,REF.ILL.; TX-L PACKAGE,0 OR 1PIECE,REF.ILL.; VX PACKAGE,0 OR 1PIECE,REF.ILL.; VX-E PACKAGE,0 OR 1PIECE,REF.ILL.; VX-L PACKAGE,0 OR 1PIECE,REF.ILL.
75988ESTRIPE, REAR DOOR, OUTSIDE LH
main75988-60730iGDJ150,TRJ150..6FC..GCC; GDJ150..RHD..6F;GRJ150..6FC..GEN;GDJ150,TRJ150..6FC..(ARL,GEN); GRJ150..6FC..GEN;GDJ150..6FC..(ARL,GEN,SA); GRJ150..ARL,GCC,SA; GRJ150..GEN;GDJ150,LJ150,TRJ150202008-202312
0 OR 1PIECE,REF.ILL.; TX-L PACKAGE,0 OR 1PIECE,REF.ILL.; VX PACKAGE,0 OR 1PIECE,REF.ILL.; VX-E PACKAGE,0 OR 1PIECE,REF.ILL.; VX-L PACKAGE,0 OR 1PIECE,REF.ILL.
9010908295
main90109-08295
9011906983
main90119-06983
9015150016
main90151-50016
9046706084
main90467-06084
9095001841
main90950-01841
9415180600
main94151-80600
42 parts on this diagram · 2 diagrams in section
