ROOF HEADLINING & SILENCER PAD
62985AREGISTER, ROOF SIDE AIR OUTLET
MOON ROOF-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM2#
MOON ROOF-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLATMANUAL&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4#
AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,LT.GRAY,TRIM2#
MOON ROOF-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLATPOWER&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4#
63306TRIM SUB-ASSY, SUNSHADE
main63306-60280-B0iTRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
MOON ROOF-WITH&REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM2#
main63306-60280-E0iTRJ155;GDJ150,GRJ150..ARL,SA;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..(5F,5FC,6F)..(GCC,GEN,SA)201708-202312
MOON ROOF-WITH,NEUTRAL BEIGE,TRIM40
63310HEADLINING ASSY, ROOF
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM40
MOON ROOF-WITH&AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,LT.GRAY,TRIM2#
MOON ROOF-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLATMANUAL,NEUTRAL BEIGE,TRIM4#
MOON ROOF-WITH&AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,LT.GRAY,TRIM2#
MOON ROOF-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLATPOWER,NEUTRAL BEIGE,TRIM40
VX-L PACKAGE&*LES & WITH(AVS)&MOON ROOF-WITH&REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM2#
MOON ROOF-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLATPOWER&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4#
VX-L PACKAGE&*LES & WITH(AVS)&MOON ROOF-WITH&REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM2#
MOON ROOF-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLATPOWER&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4#
MOON ROOF-WITH,LT.GRAY,TRIM2#
MOON ROOF-WITH,NEUTRAL BEIGE,TRIM4#
MOON ROOF-WITH,LT.GRAY,TRIM2#
MOON ROOF-WITH,NEUTRAL BEIGE,TRIM40
MOON ROOF-WITH&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM2#
sub63310-6AB51
MOON ROOF-WITH&AIR CONDITIONER-SINGLE(AUTO)&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM4#
sub63310-6AB51
MOON ROOF-WITH,LT.GRAY,TRIM2#
MOON ROOF-WITH,NEUTRAL BEIGE,TRIM4#
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT,LT.GRAY,TRIM2#
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT,NEUTRAL BEIGE,TRIM4#
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT,LT.GRAY,TRIM2#
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT,NEUTRAL BEIGE,TRIM4#
63310DCLIP, ROOF HEADLINING
63343PAD, ROOF SILENCER, NO.3
63399DCLIP, ROOF HEADLINING
66414ASPACER, SIDE RAIL, REAR RH
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT))
66415ASPACER, SIDE RAIL, REAR NO.2 RH
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT))
66416SPACER, SIDE RAIL, REAR NO.3 RH
VX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
66424SPACER, SIDE RAIL, REAR LH
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT))
66425ASPACER, SIDE RAIL, REAR NO.2 LH
SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT))
66426BSPACER, SIDE RAIL, REAR NO.3 LH
VX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
9046706202
main90467-06202

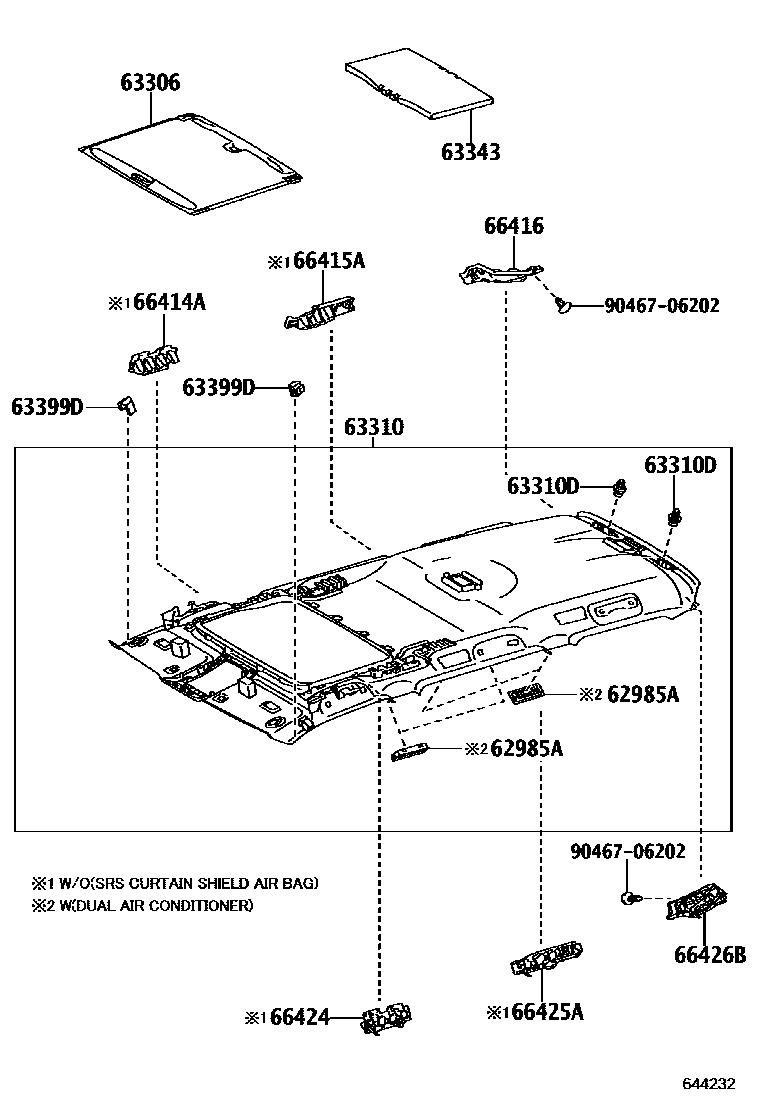

13 parts on this diagram · 4 diagrams in section
