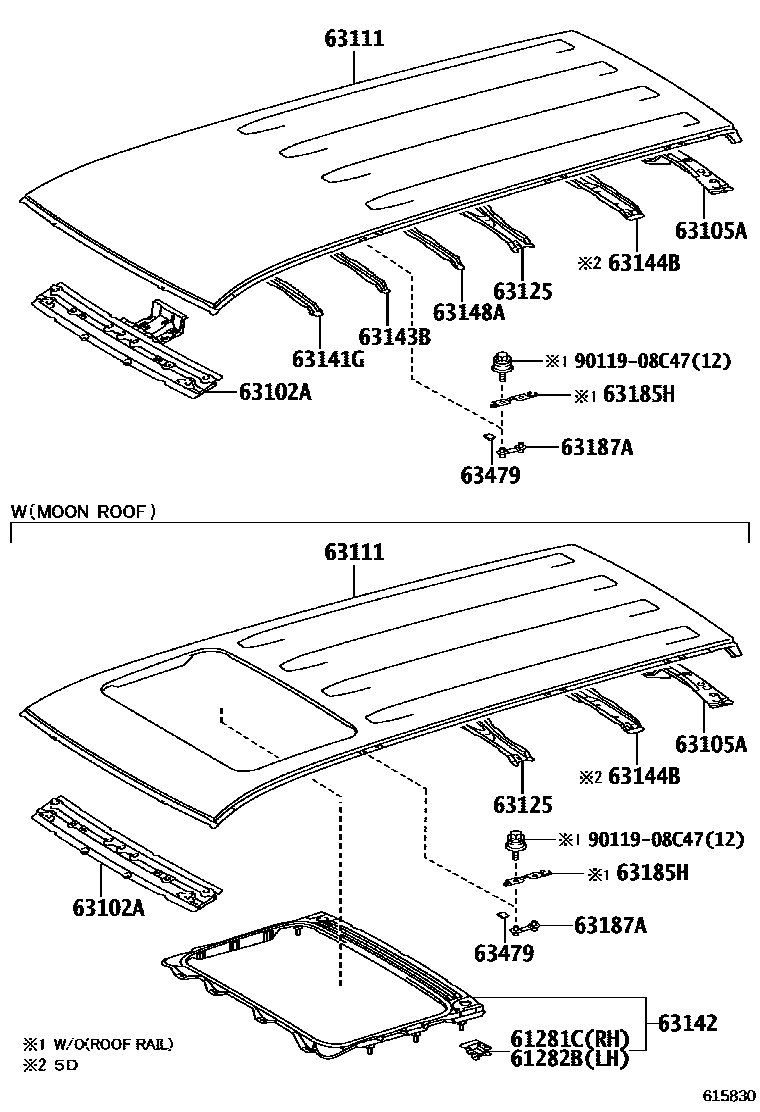

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1ROOF RAIL 0004 1ROOF RAIL(FOR ACCESSORY)

61281CBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

61282BBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 LH

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60131iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60300iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

63111PANEL, ROOF

main63111-60620iGDJ150,GRJ150,KDJ150,LJ150,TRJ150201708-202312

main63111-60660iTRJ155201708

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-60070iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60110iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-60070

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-60070iGDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ150201708-202312

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-60070iGDJ150,GRJ150,KDJ150,LJ150,TRJ150201708-202312

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-60010iGDJ150,GRJ150,KDJ150,LJ150,TRJ150201708-202312

main63148-60020iTRJ155201708

63185HBRACKET, ROOF RACK

main63185-42020iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

ROOF RAIL-FOR ACCESSORIES(MIRROR FINISH)

63187ABRACKET, ROOF RACK, REAR

main63187-35020iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

63479RETAINER, ROOF INNER RACK

main63479-60020iGDJ150,GRJ150,KDJ150,LJ150,TRJ15#201708-202312

9011908C47

main90119-08C47

15 parts on this diagram · 4 diagrams in section
