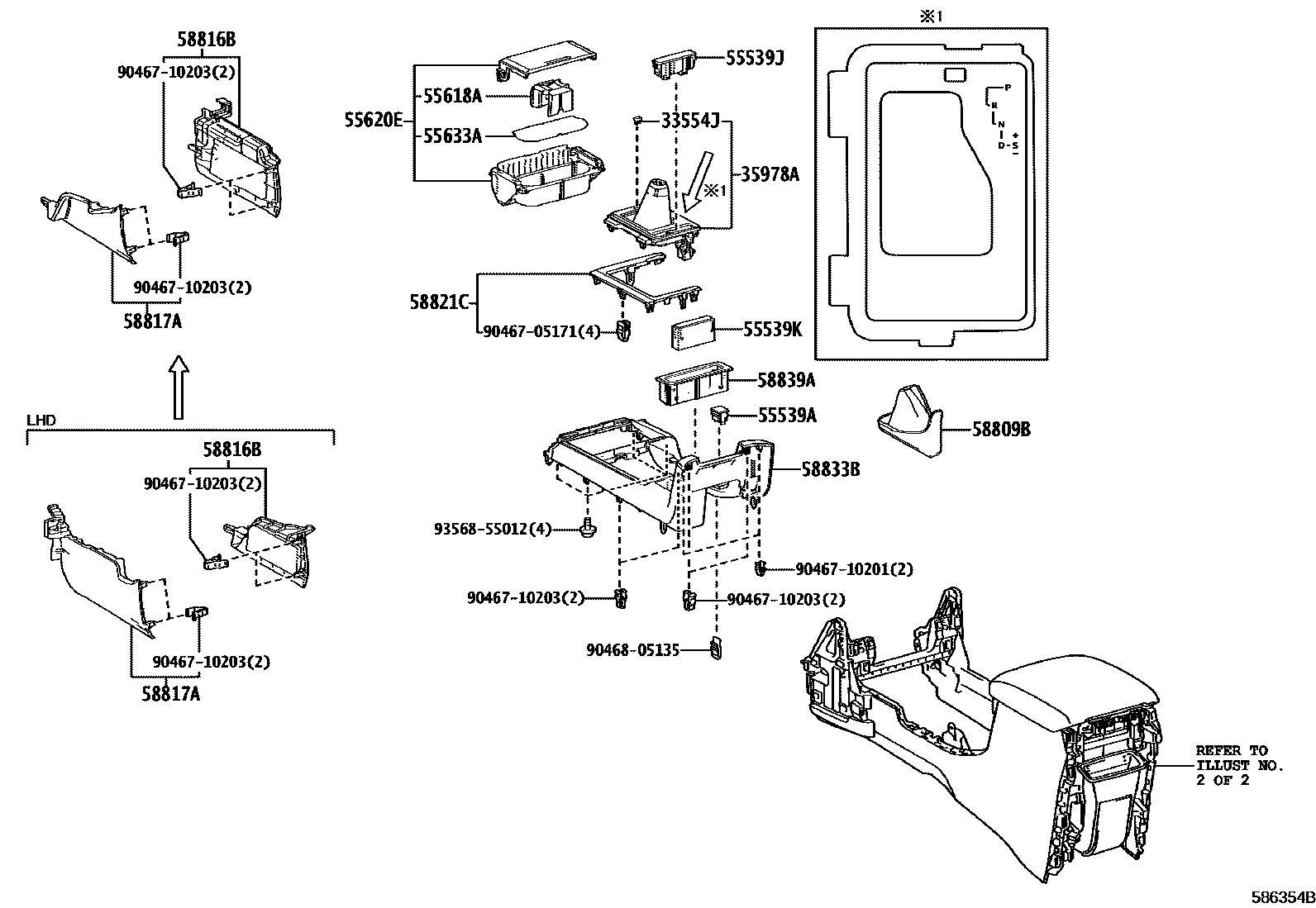

CONSOLE BOX & BRACKET
33554JCOVER, SHIFT LOCK RELEASE BUTTON
35978AINDICATOR, SHIFT POSITION
BLACK/ GRAY,TRIM2#
ORCHID BROWN/ LT.BROWN,TRIM4#
BLACK/ GRAY,TRIM2#,41
ORCHID BROWN/ LT.BROWN,TRIM4#
55539ACOVER, SPARE SWITCH HOLE
55539JCOVER, SPARE SWITCH HOLE
55539KCOVER, SPARE SWITCH HOLE
55618AHOLDER, CONSOLE BOX CUP
55620EHOLDER ASSY, INSTRUMENT PANEL CUP
*LES & WITHOUT(AVS)&BLACK EDITION(EXTERIOR ONLY)
VX-L PACKAGE&*LES & WITH(AVS)&DUST PROOF SPEC&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6&*351
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
*LES & *IP(ORNAMENT = BLACK PAINT)&MAT BLACK EDITION
55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
*LES & *IP(ORNAMENT = BLACK PAINT)&MAT BLACK EDITION
58809BCOVER SUB-ASSY, PARKING BRAKE HOLE
VX-L PACKAGE&*LES & WITH(AVS)&DUST PROOF SPEC&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 5&*351,BLACK,TRIM2#
ORCHID BROWN,TRIM4#
VX PACKAGE&*LES & WITHOUT(AVS)&MAT BLACK EDITION,BLACK,TRIM2#
VX-L PACKAGE&*LES & WITH(AVS)&*351,ORCHID BROWN,TRIM4#
58816BINSERT, CONSOLE BOX
BLACK,TRIM2#,41
ORCHID BROWN,TRIM40
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
58821CPANEL, CONSOLE, UPPER
VX-L PACKAGE&*LES & WITH(AVS)&DUST PROOF SPEC&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6&*351
*LES & *IP(ORNAMENT = BLACK PAINT)&MAT BLACK EDITION
VX PACKAGE&*LES & WITHOUT(AVS)&MAT BLACK EDITION&*351
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT,BLACK,TRIM2#
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT,ORCHID BROWN,TRIM4#
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
BLACK,TRIM2#
ORCHID BROWN,TRIM40
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
VX PACKAGE&*LES & WITHOUT(AVS)&MAT BLACK EDITION,BLACK,TRIM2#
VX-L PACKAGE&*LES & WITH(AVS)&*351,ORCHID BROWN,TRIM4#
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
58839ACOVER, CONSOLE BOX HOLE
*LES & WITH(AVS)&*351,BLACK,TRIM2#
VX-L PACKAGE&*LES & WITH(AVS)&DUST PROOF SPEC&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6&*351,ORCHID BROWN,TRIM4#
VX-L PACKAGE&*LES & WITH(AVS)&*351,BLACK,TRIM2#
VX-L PACKAGE&*LES & WITH(AVS)&*351,ORCHID BROWN,TRIM4#
9046705171
main90467-05171
9046710201
main90467-10201
9046710203
main90467-10203
9046805135
main90468-05135
9356855012
main93568-55012
19 parts on this diagram · 4 diagrams in section
