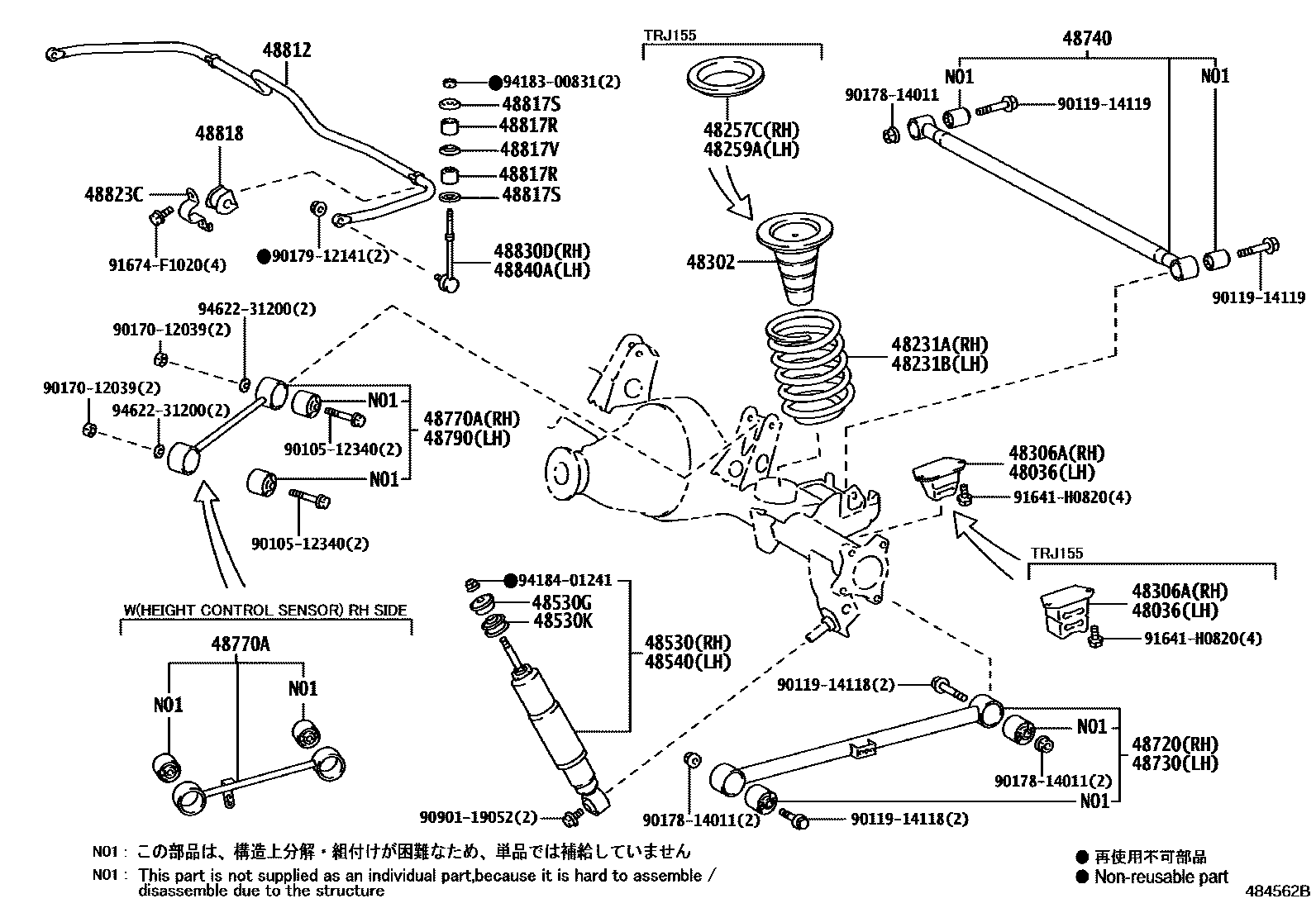

REAR SPRING & SHOCK ABSORBER
48036BUMPER SUB-ASSY, REAR SPRING, LH
48231ASPRING, COIL, REAR RH
VX-L PACKAGE&FUEL TANK-WITH(SUB TANK)&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
main48231-60G50supersedes 48231-60G31iGDJ150..RHD..6F..GEN;GDJ150,GRJ150..6FC..GEN;KDJ150,TRJ150..(5FC,6F,6FC)..GEN201708-202312
FUEL TANK-WITH(SUB TANK)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL
VX PACKAGE&FUEL TANK-WITH(SUB TANK)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
48231BSPRING, COIL, REAR LH
VX-L PACKAGE&FUEL TANK-WITH(SUB TANK)&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
FUEL TANK-WITH(SUB TANK)
main48231-60G60supersedes 48231-60G40iGRJ150..6FC..GEN;GDJ150..RHD..6F..GEN;GDJ150..6FC..(ARL,GEN);KDJ150,TRJ150..(5FC,6F,6FC)..GEN201708-202312
VX PACKAGE&FUEL TANK-WITH(SUB TANK)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48302SPRING SUB-ASSY, HOLLOW
48306ABUMPER SUB-ASSY, REAR SPRING, RH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-60470,FOR EGYPT SPEC
MARK 48530-60400
MARK 48530-60203
MARK 48530-60372
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 6
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-60470,FOR EGYPT SPEC
MARK 48530-60400,ARGENTINA SPEC&VX-L PACKAGE&ENGINE-FOR EURO 5 & 6 CONFORMITY&EXHAUST EMISSION CONTROL-EURO 5&STABILIZER-WITH(KDSS)
MARK 48530-60203
MARK 48530-60372
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48770AARM ASSY, UPPER CONTROL, REAR RH
HEADLAMP- LED(MAT BLACK EDITION)
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
VX PACKAGE&FUEL TANK-WITH(SUB TANK)
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&FUEL TANK-WITH(SUB TANK)&STABILIZER-WITH(KDSS)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48818BUSH, STABILIZER, REAR
VX PACKAGE&FUEL TANK-WITH(SUB TANK)
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&FUEL TANK-WITH(SUB TANK)&STABILIZER-WITH(KDSS)
48823CCOVER, REAR STABILIZER BRACKET
48830LINK ASSY, REAR STABILIZER
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
9010512340
main90105-12340
9011914118
main90119-14118
9011914119
main90119-14119
9017012039
main90170-12039
9017814011
main90178-14011
9017912141
main90179-12141
9090119052
main90901-19052
91641H0820
main91641-H0820
91674F1020
main91674-F1020
9418300831
main94183-00831
9418401241
main94184-01241
9462231200
main94622-31200
37 parts on this diagram · 5 diagrams in section
