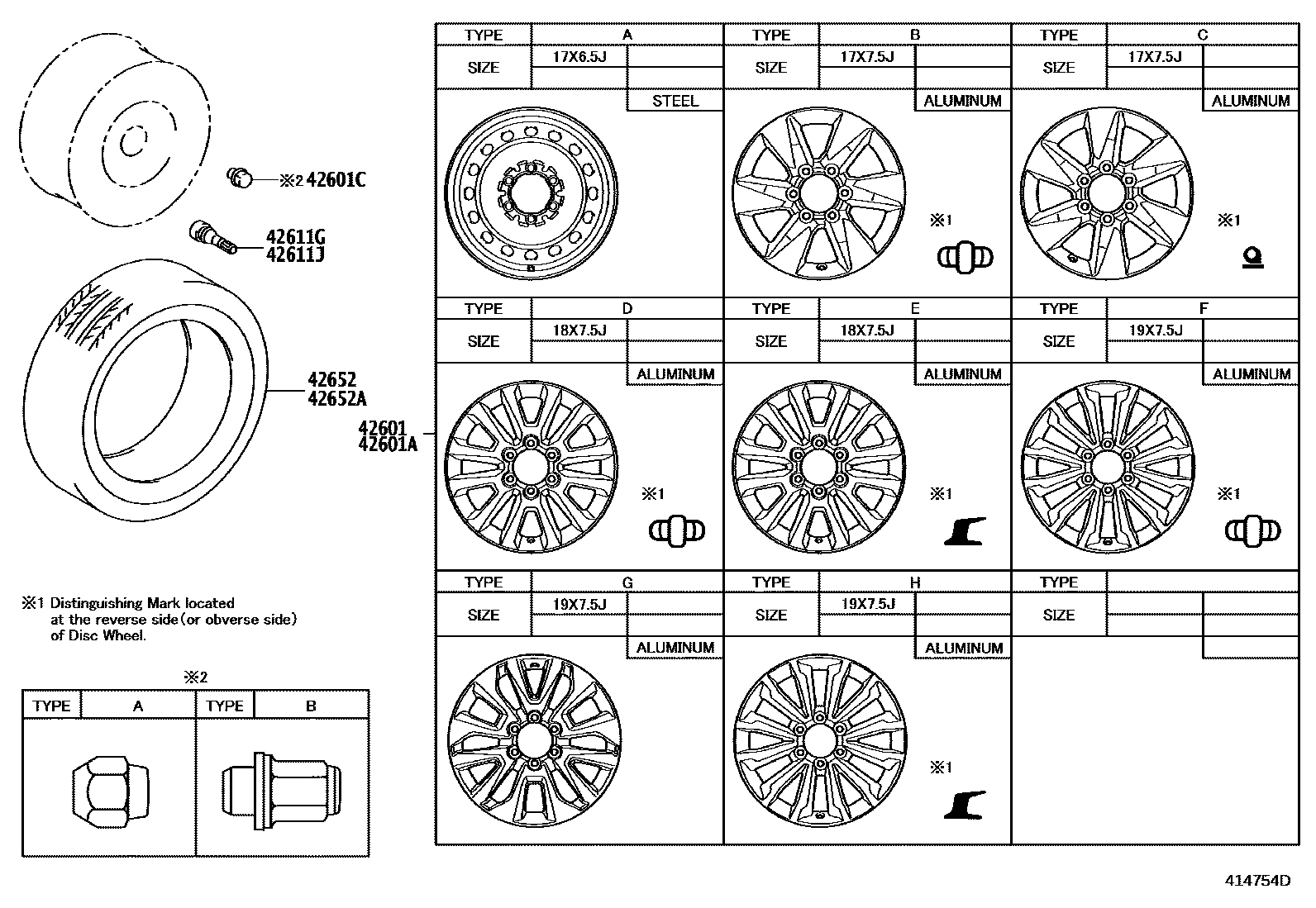

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
17X6.5J, #,TYPE A:REFER ILLUST.
sub42611-60B71
17X7.5J, #,TYPE B:REFER ILLUST.
17X7.5J, #,TYPE C:REFER ILLUST.
19X7.5J, #,TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
19X7.5J, #,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
18X7.5J,#,SAUDI ARABIA SPEC&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK)&TIRE INFLATION PRESSURE WARNING-WITH(433HZ)
19X7.5J, #,TYPE H:REFER ILLUST.
19X7.5J, #,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(433HZ),TYPE H:REFER ILLUST.
17X7.5J, #,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM,TYPE B:REFER ILLUST.
17X7.5J, #,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(433HZ),TYPE C:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK),TYPE E:REFER ILLUST.
19X7.5J, #,TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM, ACCESSORY,TYPE G:REFER ILLUST.
19X7.5J, #,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM, ACCESSORY,TYPE G:REFER ILLUST.
main4261A-60180×4iGRJ150..6FC;GRJ150..6F..GEN;TRJ150..6FC..GEN;GDJ150..6FC..(ARL,GCC,GEN);GDJ150,KDJ150..(5FC,6F)..(GCC,GEN)201708-202106
18X7.5J, *SCHM,MIDDLE EAST SPEC(EXCEPT GCC)&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(433HZ),TYPE D:REFER ILLUST.
18X7.5J, #,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(433HZ),TYPE D:REFER ILLUST.
18X7.5J, #,TX-L PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM,TYPE E:REFER ILLUST.
18X7.5J, #,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(433HZ),TYPE E:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X6.5J, #,TYPE A:REFER ILLUST.
sub42611-60B71
17X7.5J, #,TYPE B:REFER ILLUST.
17X7.5J, #,VIETNAM SPEC&TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM&TIRE INFLATIONPRESSURE WARNING-WITH(433HZ),TYPE C:REFER ILLUST.
19X7.5J, #,TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
19X7.5J, #,TUNISIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM&TIRE INFLATIONPRESSURE WARNING-WITH(433HZ),TYPE F:REFER ILLUST.
18X7.5J,#,GCC SPEC&TX-L PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK),TYPE E:REFER ILLUST.
19X7.5J, #,GCC SPEC&TX-L PACKAGE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPEH:REFER ILLUST.
19X7.5J, #,GHANA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(433HZ),TYPE H:REFER ILLUST.
17X7.5J, #,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM,TYPE B:REFER ILLUST.
17X7.5J, #,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(433HZ),TYPE C:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK),TYPE E:REFER ILLUST.
19X7.5J, #,TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM, ACCESSORY,TYPE G:REFER ILLUST.
19X7.5J, #,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM, ACCESSORY,TYPE G:REFER ILLUST.
main4261A-60180iGRJ150..6FC;GRJ150..6F..GEN;TRJ150..6FC..GEN;GDJ150..6FC..(ARL,GCC,GEN);GDJ150,KDJ150..(5FC,6F)..(GCC,GEN)201708-202106
18X7.5J, *SCHM,MIDDLE EAST SPEC(EXCEPT GCC)&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(433HZ),TYPE D:REFER ILLUST.
18X7.5J, #,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(433HZ),TYPE D:REFER ILLUST.
main4261A-60200iGRJ150..6FC;GRJ150..6F..GEN;TRJ150..6FC..GEN;GDJ150..6FC..(ARL,GCC,GEN);GDJ150,KDJ150..(5FC,6F)..(GCC,GEN)201708-202106
18X7.5J, #,TX-L PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM,TYPE E:REFER ILLUST.
18X7.5J, #,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(433HZ),TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01058×24supersedes 90942-01104iGRJ150..GEN;GDJ150,KDJ150,LJ150,TRJ15#..GCC,GEN,SA201708-202312
TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
265/65R17,*B/S
265/65R17,*D/L,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&TIRE & DISC WHEEL-265/65R17,7.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(433HZ)
265/60R18,*D/L,TX-L PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK)
265/65R17,*D/L
265/60R18,*B/S,CHILE SPEC&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(315HZ)
265/60R18,*B/S,TX-L PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM
265/60R18,*D/L,TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM&TIRE INFLATION PRESSUREWARNING-WITH(433HZ)
42652ATIRE (FOR SPARE)
265/65R17,*B/S
265/65R17,*D/L,CHILE SPEC&TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(315HZ)
265/60R18,*D/L,KUWAIT SPEC&TX-L PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK)
265/65R17,*D/L
265/60R18,*B/S,CHILE SPEC&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(315HZ)
265/60R18,*B/S,TX-L PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM
265/60R18,*D/L,TX-L PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM
7 parts on this diagram · 3 diagrams in section
