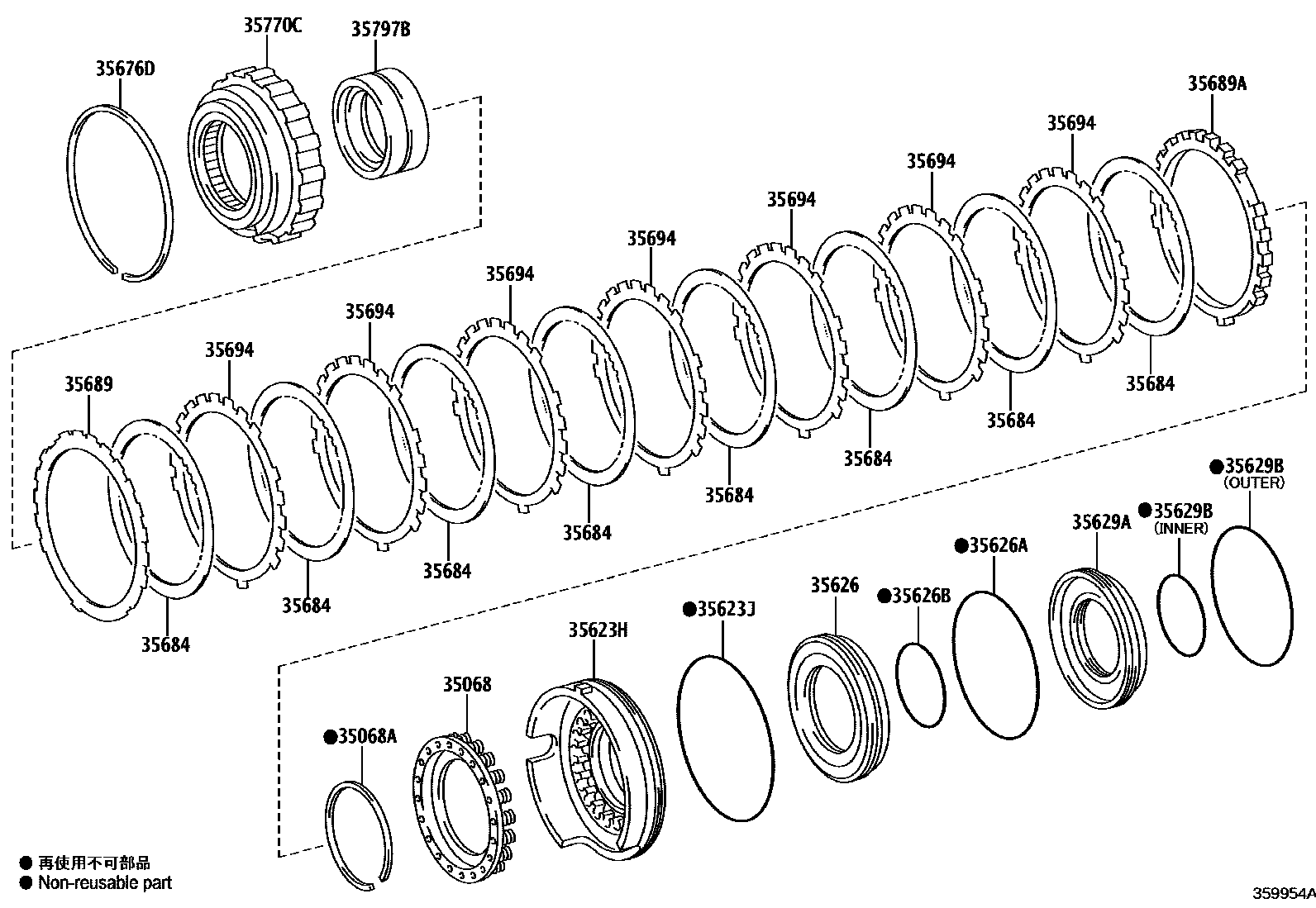

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A750F 0002 1AC60F

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-60010iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

35623HPISTON, 1ST & REVERSE BRAKE

main35623-60060iKDJ150..5FC201708-202007

main35623-71010iGDJ150,GRJ150..6FC201708-202312

main35623-71020iTRJ15#..6FC201708-202312

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

35626SLEEVE, BRAKE REACTION

main35626-50010iGDJ150,GRJ150,TRJ15#..6FC201708-202312

main35626-60010iKDJ150..5FC201708-202007

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99143iKDJ150..5FC201708-202007

main90301-99144iGDJ150,GRJ150,TRJ15#..6FC201708-202312

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-79003iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

35629APISTON, BRAKE, NO.4

main35629-50020iGDJ150,GRJ150,TRJ15#..6FC201708-202312

main35629-60010iKDJ150..5FC201708-202007

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-67006iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

INNER

main90301-99084iGDJ150,GRJ150,TRJ15#..6FC201708-202312

OUTER

main90301-99151iKDJ150..5FC201708-202007

OUTER

35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)

main90521-99131iKDJ150..5FC201708-202007

35684DISC, BRAKE, NO.4

main35684-50010×8iKDJ150..5FC201708-202007

main35684-60030×5iGDJ150,GRJ150..6FC; TRJ15#..6FC201708-202312

35689FLANGE, BRAKE, NO.4

main35689-60270iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

T=1.8,MARK 0

main35689-60280iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

T=1.97,MARK 1

main35689-60290iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

T=2.11,MARK 3

main35689-60300iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

T=2.25,MARK 4

main35689-60310iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

T=2.39,MARK 5

main35689-60320iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

T=2.53,MARK 7

main35689-60330iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

T=2.67,MARK 8

main35689-60340iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

T=2.81,MARK10

main35689-60350iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

T=2.95,MARK 11

main35689-60360iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

T=3.09,MARK 12

main35689-60370iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

T=3.23,MARK 14

35689AFLANGE, BRAKE, NO.4

main35689-60090iKDJ150..5FC201708-202007

main35689-71010iGDJ150,GRJ150,TRJ15#..6FC201708-202312

35694PLATE, BRAKE, NO.4

main35694-60011×7iKDJ150..5FC201708-202007

35770CCLUTCH ASSY, 1WAY NO.3

main35770-60030iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

35797BRACE, 1 WAY CLUTCH, INNER

main35797-50031iKDJ150..5FC201708-202007

main35797-60020iGDJ150,GRJ150,TRJ15#..6FC201708-202312

16 parts on this diagram · 2 diagrams in section
