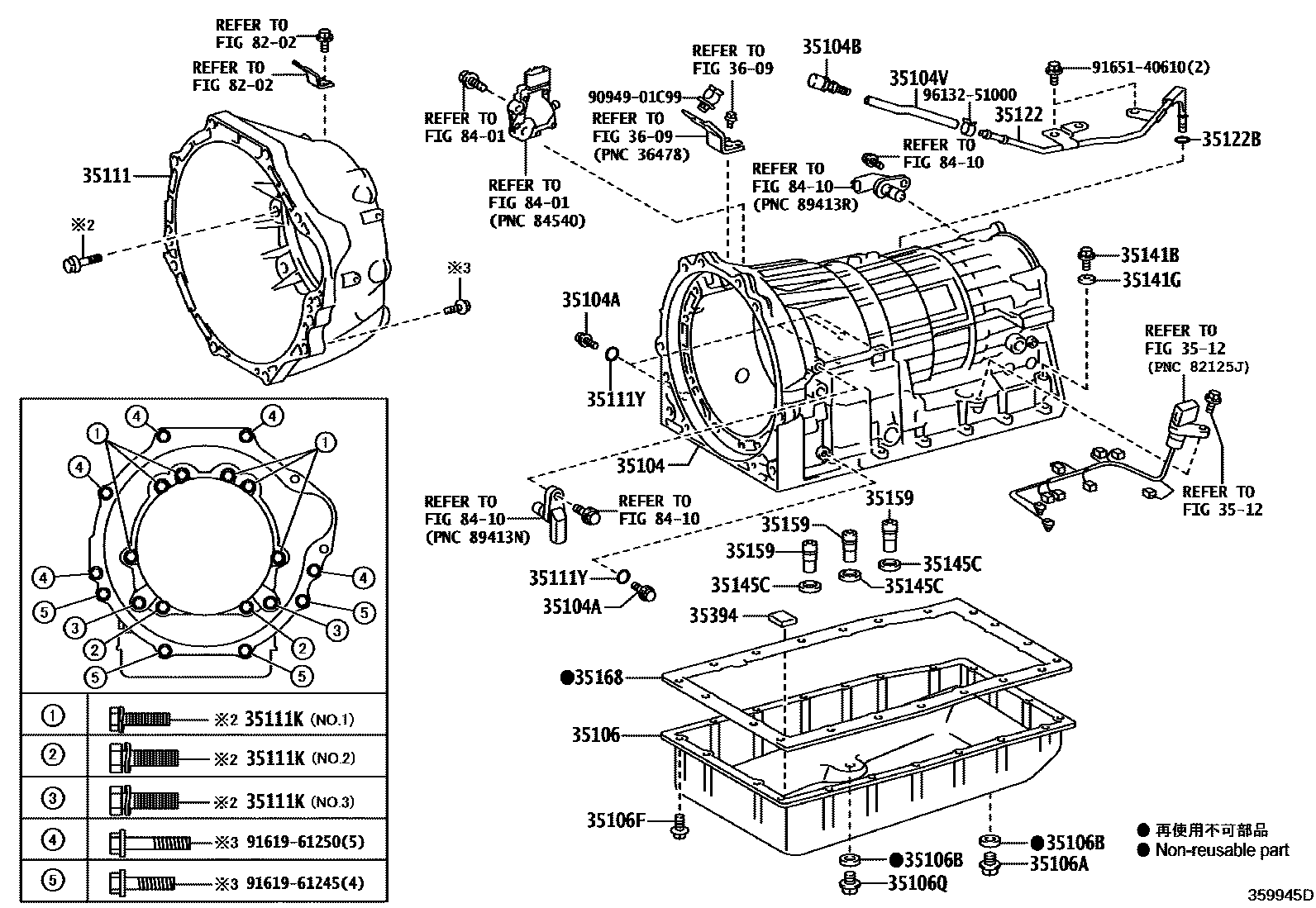

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A750F 0002 1AC60F 0003 1AC60F 0004 1AC60F

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-60221iKDJ150..5FC201708-202007

main35104-71020iGDJ150,GRJ150,TRJ15#..6FC201708-202312

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×5iKDJ150..5FC201708-202007

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03211iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

35104VHOSE (FOR BREATHER PLUG)

main35121-48030iKDJ150..5FC201708-202007

main90447-11084iTRJ15#..6FC201708-202312

main90447-11088iGDJ150,GRJ150..6FC201708-202312

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-60180iKDJ150..5FC201708-202007

main35106-71050iGDJ150,GRJ150,TRJ15#..6FC201708-202312

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173×20iKDJ150..5FC201708-202007

main90119-06A02×10iGDJ150,GRJ150,TRJ15#..6FC201708-202312

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-60160iKDJ150..5FC201708-202007

main35111-60240iGRJ150..6FC201708-202312

main35111-71030iGDJ150..6FC201708-202312

main35111-71040iTRJ15#..6FC201708-202312

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232×8iGDJ150,GRJ150,TRJ15#..6FC201708-202312

*10-1.5PX35-30,NO.1:REFER ILLUST.

main90119-10947×2iKDJ150..5FC201708-202007

*10-1.50PX35-29.3,NO.2

main90119-12378×2iKDJ150..5FC201708-202007

*12-1.75PX38-30,NO.3

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iKDJ150..5FC201708-202007

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main35122-60020iKDJ150..5FC201708-202007

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-04014iKDJ150..5FC201708-202007

main90301-08015iGDJ150,GRJ150,TRJ15#..6FC201708-202312

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iKDJ150..5FC201708-202007

35159GASKET, BRAKE DRUM

main35159-60010×3iKDJ150..5FC201708-202007

main35159-71010×2iGDJ150,GRJ150,TRJ15#..6FC201708-202312

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-60010iKDJ150..5FC201708-202007

main35168-71010iGDJ150,GRJ150,TRJ15#..6FC201708-202312

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iGDJ150,GRJ150,KDJ150,TRJ15#..ATM201708-202312

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9094901C99

main90949-01C99

9161961245

main91619-61245

9161961250

main91619-61250

9165140610

main91651-40610

9613251000

main96132-51000

30 parts on this diagram · 4 diagrams in section
