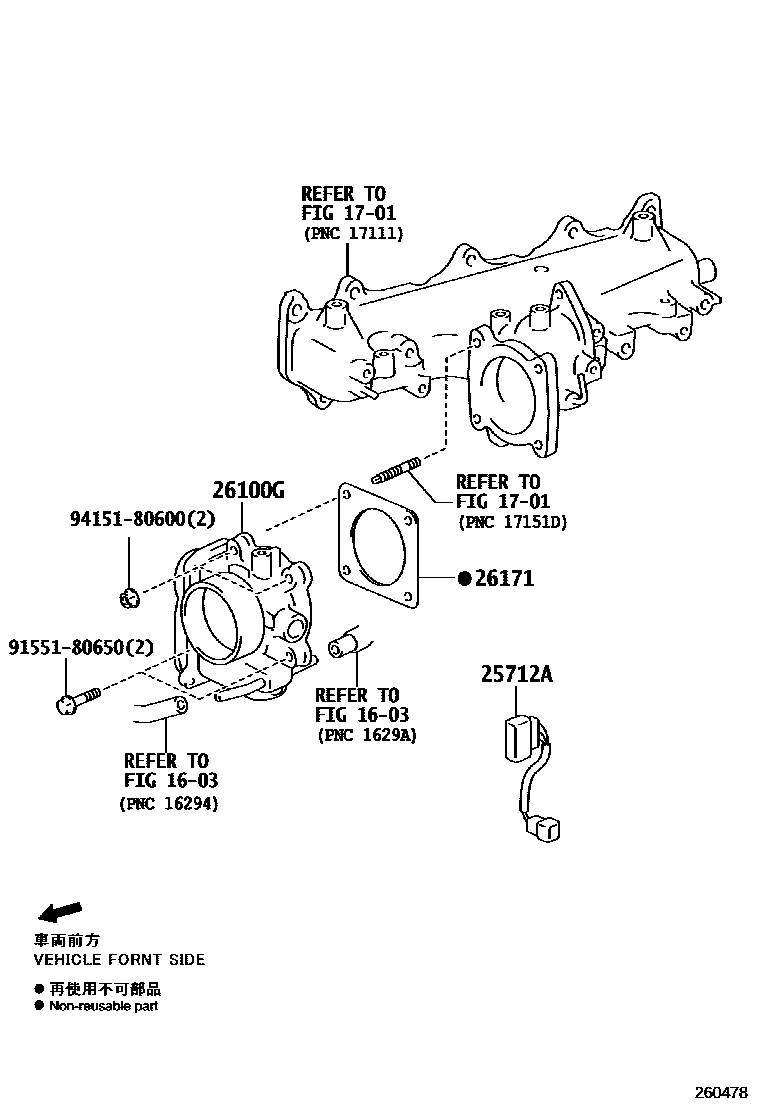

VENTURI

0001 1 0002 1 0003 1W(INTERCOOLER (WATER COOLED T0004 1 0005 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25712AWIRE, EMISSION CONTROL VALVE

main25712-11010i1GDFTV..GDJ150201708-202312

26100VENTURI ASSY

main26100-54300i5LE..LJ150201708-202312

26100GBODY ASSY, DIESEL THROTTLE

main26100-11020i1GDFTV..GDJ150201708-202008

main26100-11040i1GDFTV..GDJ150202008-202312

main26100-30070i1KDFTV..KDJ150201708-202007

26171GASKET, VENTURI

main17116-54030i5LE..LJ150201708-202312

main26171-11010i1GDFTV..GDJ150201708-202008

main26171-11020i1GDFTV..GDJ150202008-202312

main26171-30020i1KDFTV..KDJ150201708-202007

9155180650

main91551-80650

9415180600

main94151-80600

8 parts on this diagram · 5 diagrams in section
