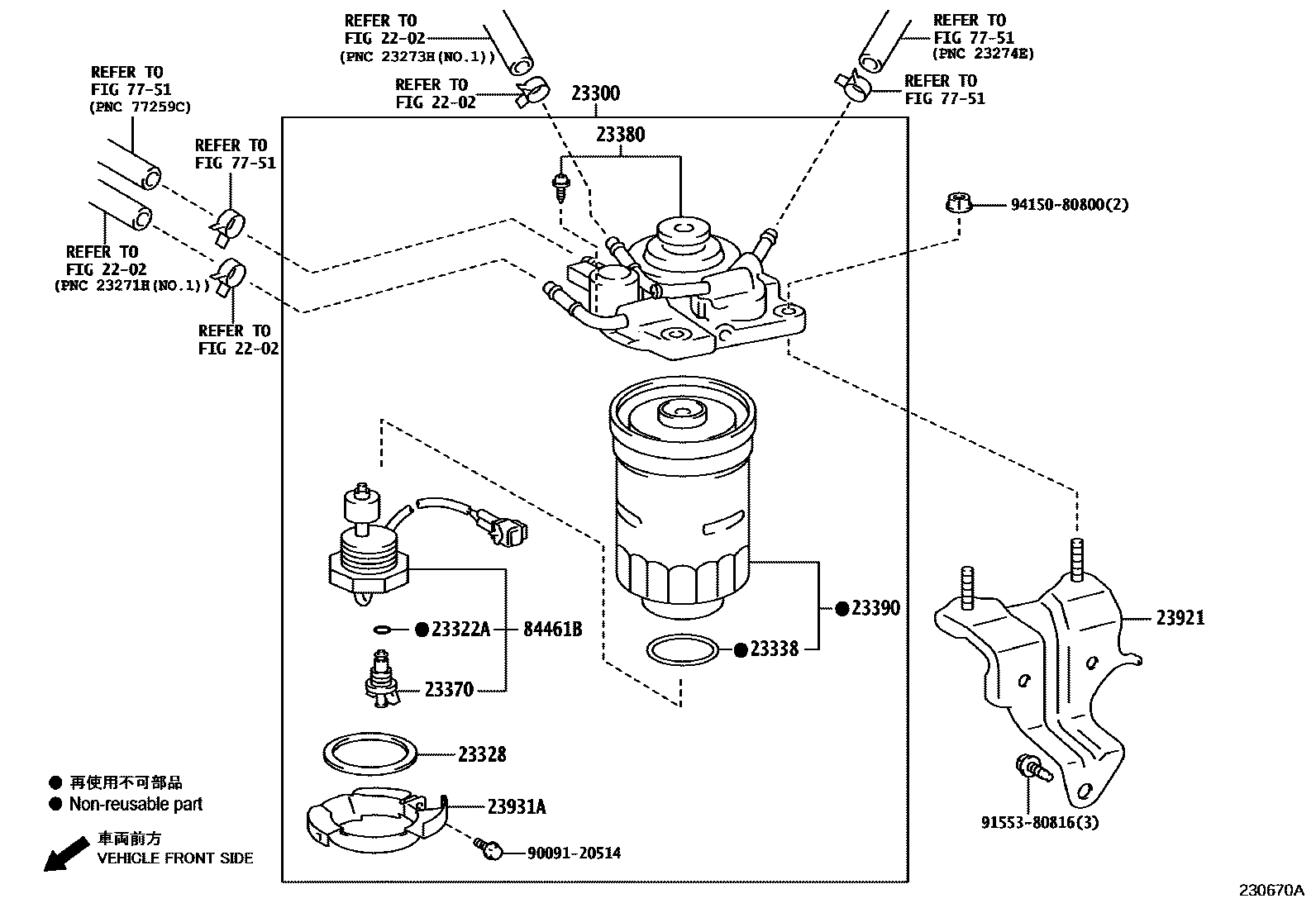

FUEL FILTER

0001 1 0002 1PRESSURIZED FUEL FILTER 0003 1 0004 1

2202

23300FILTER ASSY, FUEL

main23300-30420i1GDFTV..GDJ150201708-202312

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i5LE..LJ150201708-202312

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1KDFTV..KDJ150201708-202007

23328GASKET(FOR FUEL FILTER)

main23385-30160i1KDFTV..KDJ150201708-202007

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1KDFTV..KDJ150201708-202007

23370COCK ASSY, FUEL FILTER DRAIN

main23370-30010i1KDFTV..KDJ150201708-202007

23380CAP ASSY, FUEL FILTER

main23380-30161i5LE..LJ150201708-202312

main23380-30301i1KDFTV..KDJ150..GCC,GEN201708-202007

main23380-30340i1GDFTV..GDJ150201708-202312

main23380-30350i1KDFTV..KDJ150..SA201708-202007

23390ELEMENT ASSY, FUEL FILTER

main23390-30180i5LE..LJ150201708-202312

main23390-36760i1KDFTV..KDJ150201708-202007

23921SUPPORT, FUEL FILTER

main23921-30070i1KDFTV..KDJ150201708-202007

23931ACOVER, FUEL FILTER

main23931-26031i1KDFTV..KDJ150201708-202007

7751

84461BSWITCH, LEVEL WARNING

main84461-60090iLJ150201708-202312

main84461-60101iKDJ150201708-201909

main84461-60102iKDJ150201910-202007

9009120514

main90091-20514

9155380816

main91553-80816

9415080800

main94150-80800

16 parts on this diagram · 4 diagrams in section
