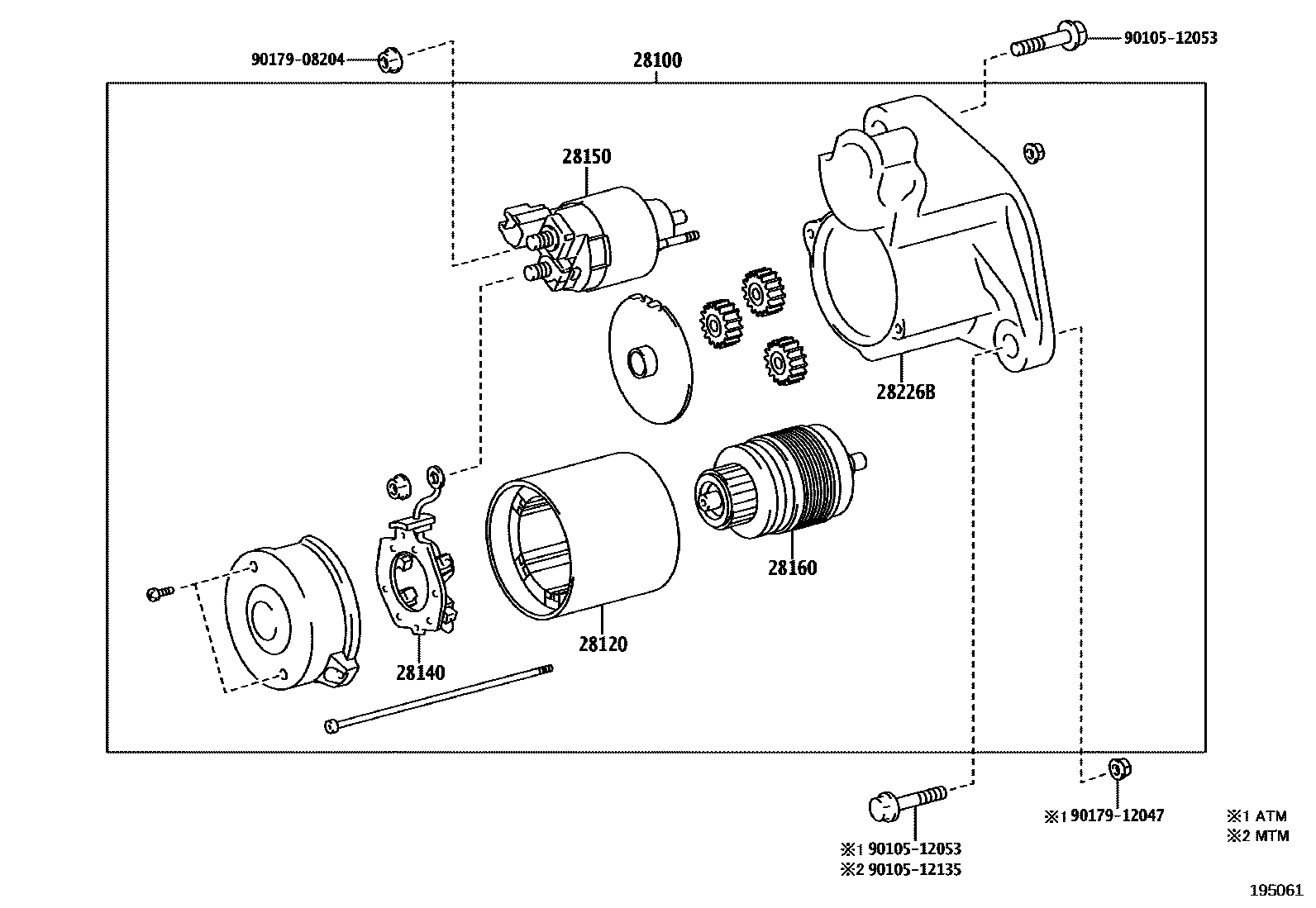

STARTER

0001 112V 2.0KW 0002 112V 1.4KW 0003 112V 2.2KW 0004 112V 2.7KW 0005 112V 3.0KW 0006 112V 2.2KW 0007 112V 1.4KW 0008 112V 2.0KW

28100STARTER ASSY

main28100-11190i1GDFTV..GDJ150201708-202312

12V 2.0KW

main28100-31131i1GRFE..GRJ150201708-202312

12V 1.4KW

main28100-54451i5LE..LJ150201708-202312

12V 2.2KW

main28100-67052i1KDFTV..KDJ150201708-202007

12V 2.2KW

main28100-75091i2TRFE..TRJ15#201708-202312

12V 1.4KW

28120YOKE ASSY, STARTER

main28120-0L180i1GDFTV..GDJ150201708-202312

main28120-64040i1KDFTV,5LE..KDJ150,LJ150201708-202312

main28120-66040i1GRFE,2TRFE..GRJ150,TRJ15#201708-202312

28140HOLDER ASSY, STARTER BRUSH

main28140-0L180i1GDFTV..GDJ150201708-202312

main28140-35060i1GRFE..GRJ150201708-202312

main28140-64040i1KDFTV,5LE..KDJ150,LJ150201708-202312

main28140-76070i2TRFE..TRJ15#201708-202312

28150SWITCH ASSY, MAGNET STARTER

main28150-31130i1GRFE..GRJ150201708-202312

main28150-40090i1GDFTV..GDJ150201708-202312

main28150-54330i5LE..LJ150201708-202312

main28150-67050i1KDFTV..KDJ150201708-202007

main28150-75130i2TRFE..TRJ15#201708-202312

28160ARMATURE ASSY, STARTER

main28160-37100i1GDFTV..GDJ150201708-202312

main28160-64041i1KDFTV,5LE..KDJ150,LJ150201708-202312

main28160-74070i1GRFE,2TRFE..GRJ150,TRJ15#201708-202312

28226BSTARTER KIT, REPAIR SERVICE

main28226-0L180i1GDFTV..GDJ150201708-202312

9010512053

main90105-12053

9010512135

main90105-12135

9017908204

main90179-08204

9017912047

main90179-12047

10 parts on this diagram · 8 diagrams in section
