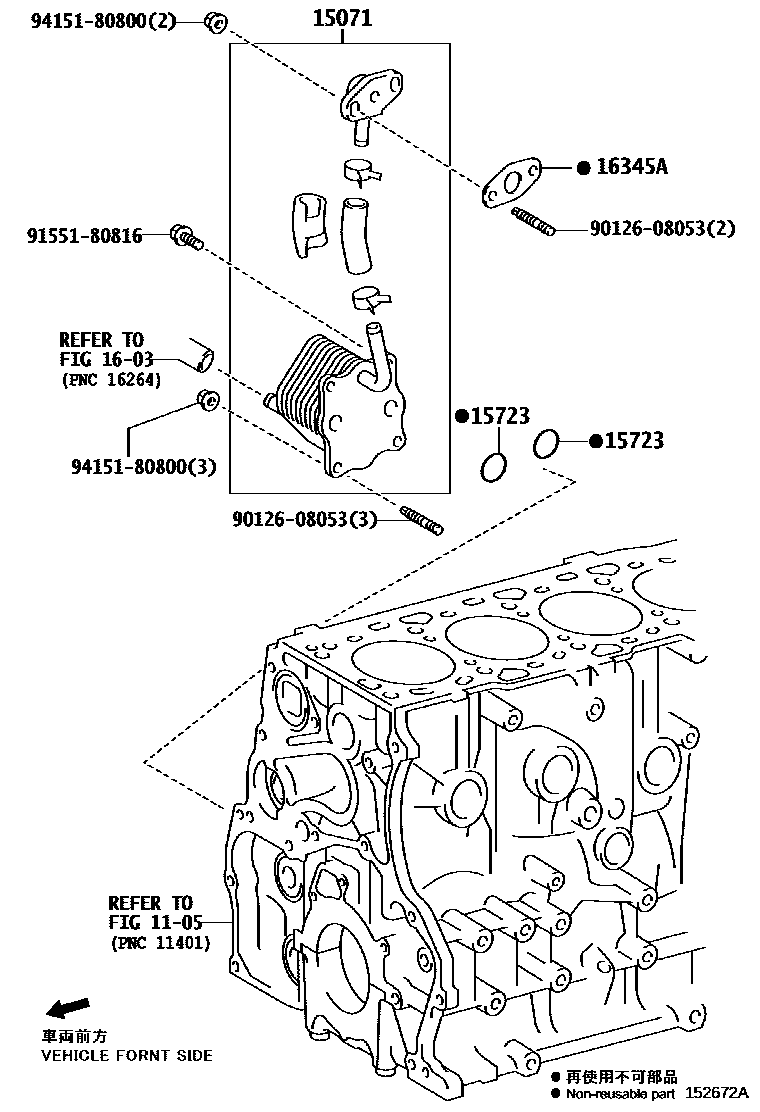

ENGINE OIL COOLER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1105

15071COOLER SET, ENGINE OIL

main15071-08010i1GDFTV..GDJ150202209-202312

main15071-11010i1GDFTV..GDJ150201708-202208

15723RING, O

main90301-22007×2i1GDFTV..GDJ150201708-202312

1603

16345AGASKET, WATER OUTLET PIPE

main16345-11010i1GDFTV..GDJ150201708-202312

9012608053

main90126-08053

9155180816

main91551-80816

9415180800

main94151-80800

8 parts on this diagram · 6 diagrams in section
