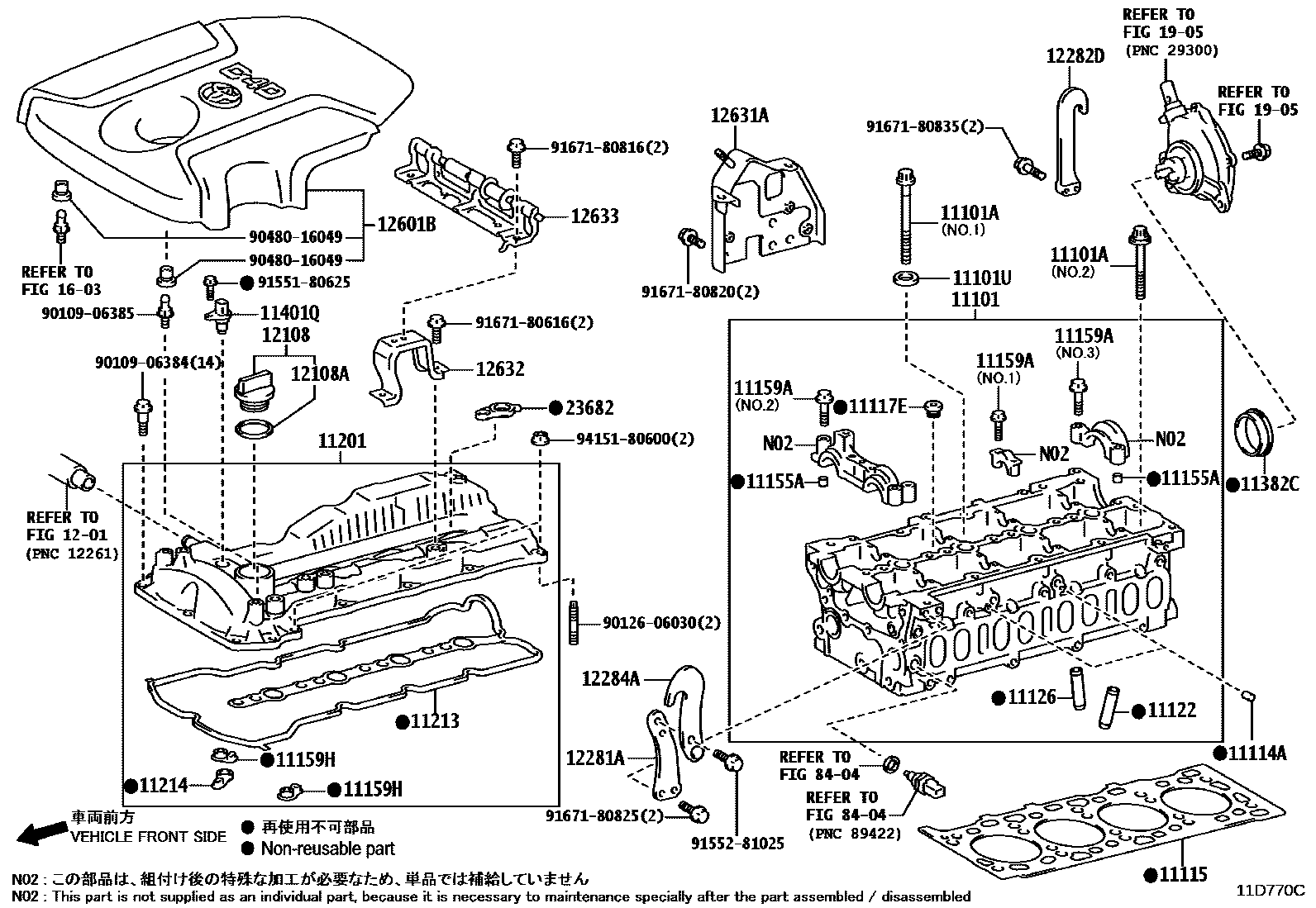

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2
NO.1
NO.2
NO.1
11101USPACER(FOR CYLINDER HEAD SET BOLT)
11114APIN, STRAIGHT
L=8,OD=5
11115GASKET, CYLINDER HEAD
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK D,REFER REPAIR MANUAL
MARK E,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK D,REFER REPAIR MANUAL
MARK E,REFER REPAIR MANUAL
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
STD
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
STD
STD
O/S 0.05
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.1
(J)
(L)
NO.3
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
NO.1
NO.2
NO.3
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
11382CRETAINER, CAMSHAFT OIL SEAL
11401QSENSOR, CRANK POSITION
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
12284AHANGER, ENGINE, NO.1 UPPER
12631ABRACKET, ENGINE COVER
12633BRACKET, ENGINE COVER, NO.3
1603
1905
23682GASKET, NOZZLE HOLDER
8404
9010906384
main90109-06384
9010906385
main90109-06385
9012606030
main90126-06030
9048016049
main90480-16049
9155180625
main91551-80625
9155281025
main91552-81025
9167180616
main91671-80616
9167180816
main91671-80816
9167180820
main91671-80820
9167180825
main91671-80825
9167180835
main91671-80835
9415180600
main94151-80600
42 parts on this diagram · 6 diagrams in section
